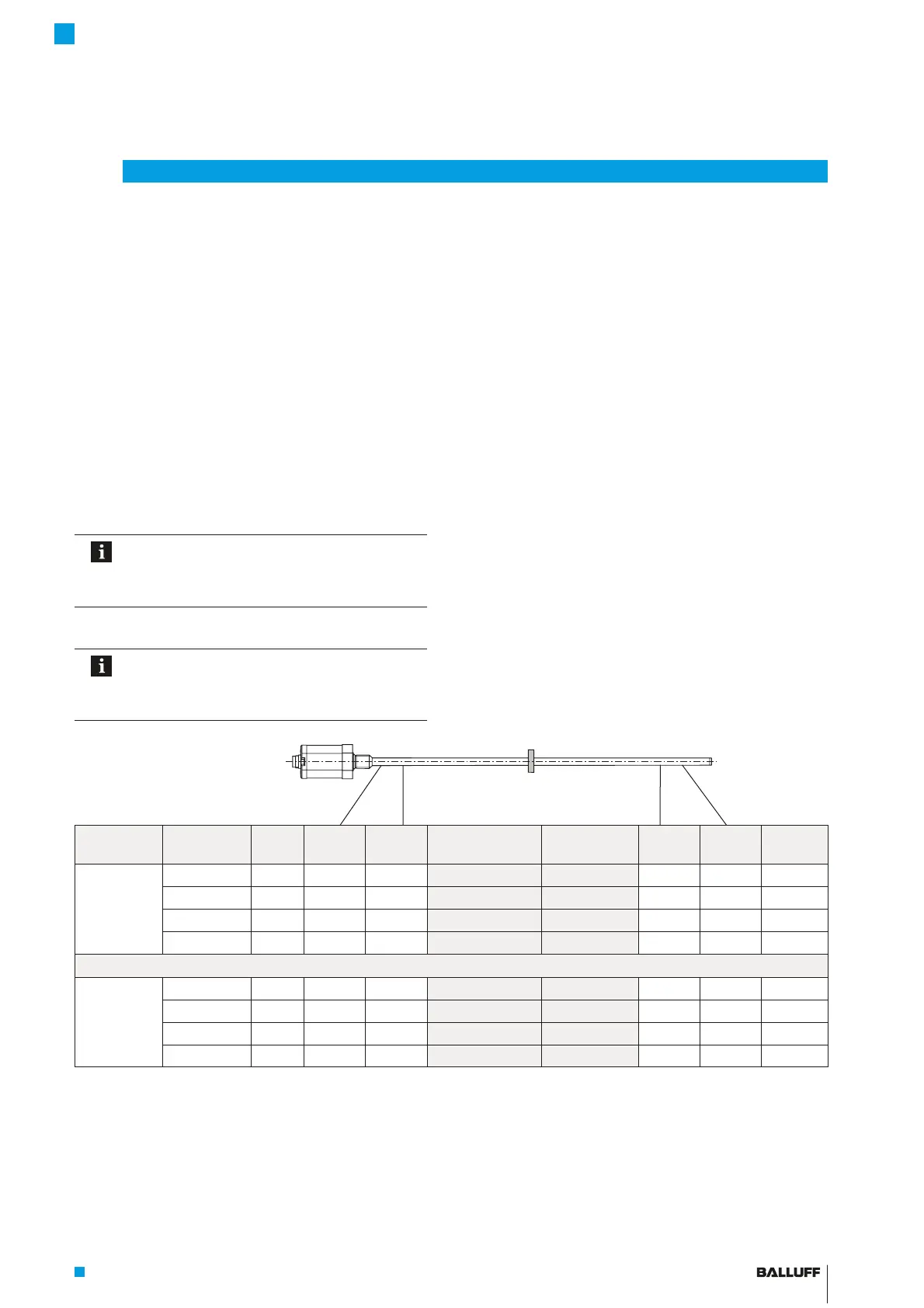

6.5 Calibration procedure notes
Prerequisites
– The calibration device is in place or the programming
inputs are connected.
– The transducer is connected to the system controller.
– Voltage or current values from the transducer can be
read (using a multimeter or the system controller).
Values for zero and end point
– Any desired position of the magnet can be used as the
zero or end point. However, the zero and end points
may not be reversed.
– The absolute zero and end points must lie within the
minimum or maximum limits of what can be output
(see value table).
– The distance between the null point and end point
must be at least 4mm.
The last set values are always saved, regardless
of whether the setting was ended using the
buttons, the programming inputs or
automatically after 10min. have expired.
Value table for teach-in and adjustment
The following examples refer to transducers
with 0 to 10 V or 4 to 20 mA output.
For all other versions, use the values in the
value table below.
Output
gradient
Linear
transducer
Unit Min.
value
Null
value
Identification
for adjustment
Identification
for teach-in
End
value
Max.
value
Error
value
Rising BTL7-A… V 0.5 0 2.0 4.0 +10.0 +10.5 +10.5
BTL7-G… V 10.5 10.0 2.0 4.0 +10.0 +10.5 +10.5
BTL7-C… mA 0 0 6.0 12.0 20.0 20.4 20.4
BTL7-E… mA 3.6 4.0 6.0 12.0 20.0 20.4 3.6
Falling BTL7-A… V +10.5 +10.0 8.0 6.0 0 0.5 0.5
BTL7-G… V +10.5 +10.0 2.0 4.0 10.0 10.5 10.5
BTL7-C… mA 20.4 20.0 14.0 8.0 0 0 20.4
BTL7-E… mA 20.4 20.0 14.0 8.0 4.0 3.6 3.6
Tab. 6-1: Value table for teach-in and adjustment
Null point
End point
6
Calibration procedure (continued)
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
