Balluff BTL7 Series Manual

26 english

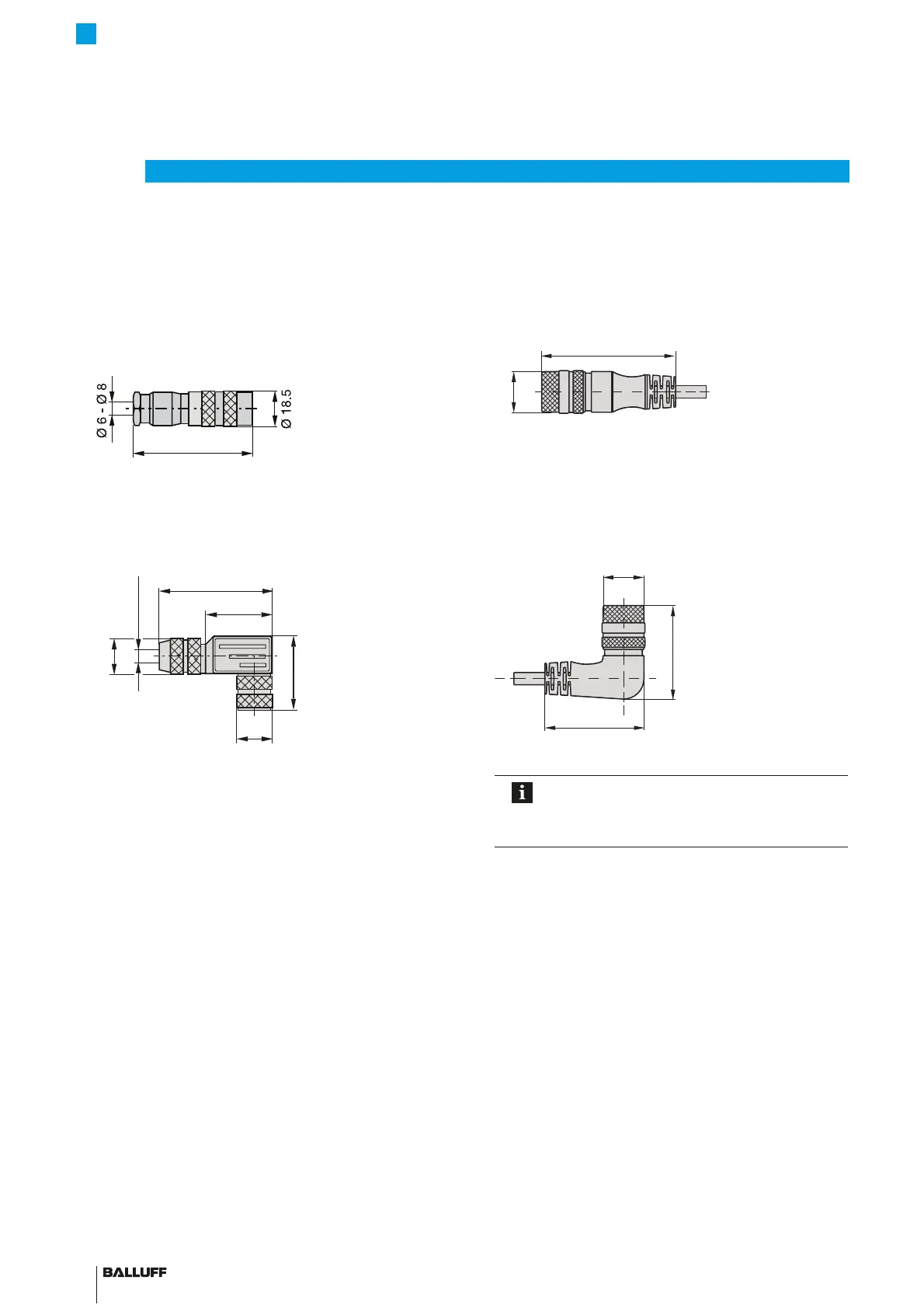

12.3 Connectors and cables
12.3.1 BKS-S32/S33M-00, freely configurable
BKS-S32M-00
Straight connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 12-2:
~ 62
Connector type BKS-S32M-00
BKS-S33M-00
Angled connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 12-3:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector type BKS-S33M-00
12.3.2 BKS-S232/S233-PU-_ _, preassembled
BKS-S232-PU-_ _
Straight connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S232-PU-05: Cable length 5m
Fig. 12-4:
Ø 20
66
Connector type BKS-S232-PU-_ _
BKS-S233-PU-_ _
Angled connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S233-PU-05: Cable length 5m
Fig. 12-5:
Ø 20
46
48.5
Connector type BKS-S233-PU-_ _
The outlet direction and the pin assignment for
the BKS-S233-PU-_ _ is the same as that for
the BKS S116-PU-_ _ (sea Fig. 12-8 or
Tab. 12-1).
12
Accessories (continued)
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
