Balluff BTL7 Series Manual

www.balluff.com 27english
12

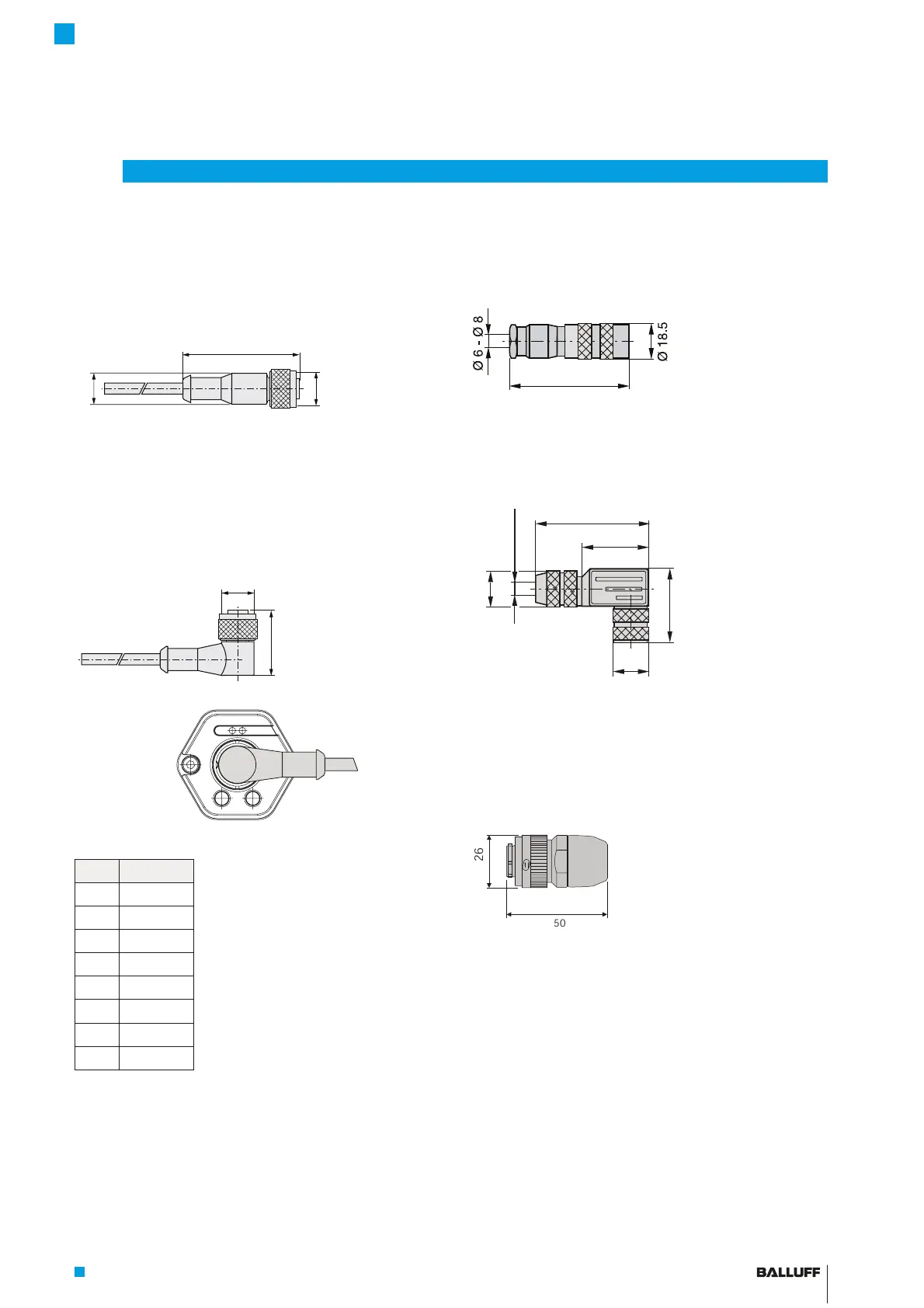

Accessories (continued)
12.3.3 BKS-S115/S116-PU-_ _, preassembled
BKS-S115-PU-_ _
Straight connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S115-PU-05: Cable length 5m
Fig. 12-6:
43
Ø 13.5
M12x1
Connector type BKS-S115-PU-_ _
BKS-S116-PU-_ _
Angled connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S116-PU-05: Cable length 5m
Fig. 12-7:
28
M12x1
Connector type BKS-S116-PU_ _
Fig. 12-8:
Connector type BKS-S116-PU_ _, outlet
Pin Color
1 YE yellow
2 GY grey
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 12-1: BKS-S115/116-PU-_ _ pin assignment
12.3.4 BKS-S135/S136M-00, freely configurable
BKS-S135M-00
Straight connector, freely configurable
M16 per IEC130-9, 6-pin
Fig. 12-9:
~ 62
Connector type BKS-S135M-00
BKS-S136M-00
Angled connector, freely configurable
M16 per IEC130-9, 6-pin
Fig. 12-10:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector type BKS-S136M-00
12.3.5 BKS-S140-23-00, freely configurable
BKS-S140-23-00
Straight connector, freely configurable
10-pin
Fig. 12-11:
50
Ø
26
Connector type BKS-S140-23-00
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
