Balluff BTL7 Series Manual

28 english
12
Accessories (continued)

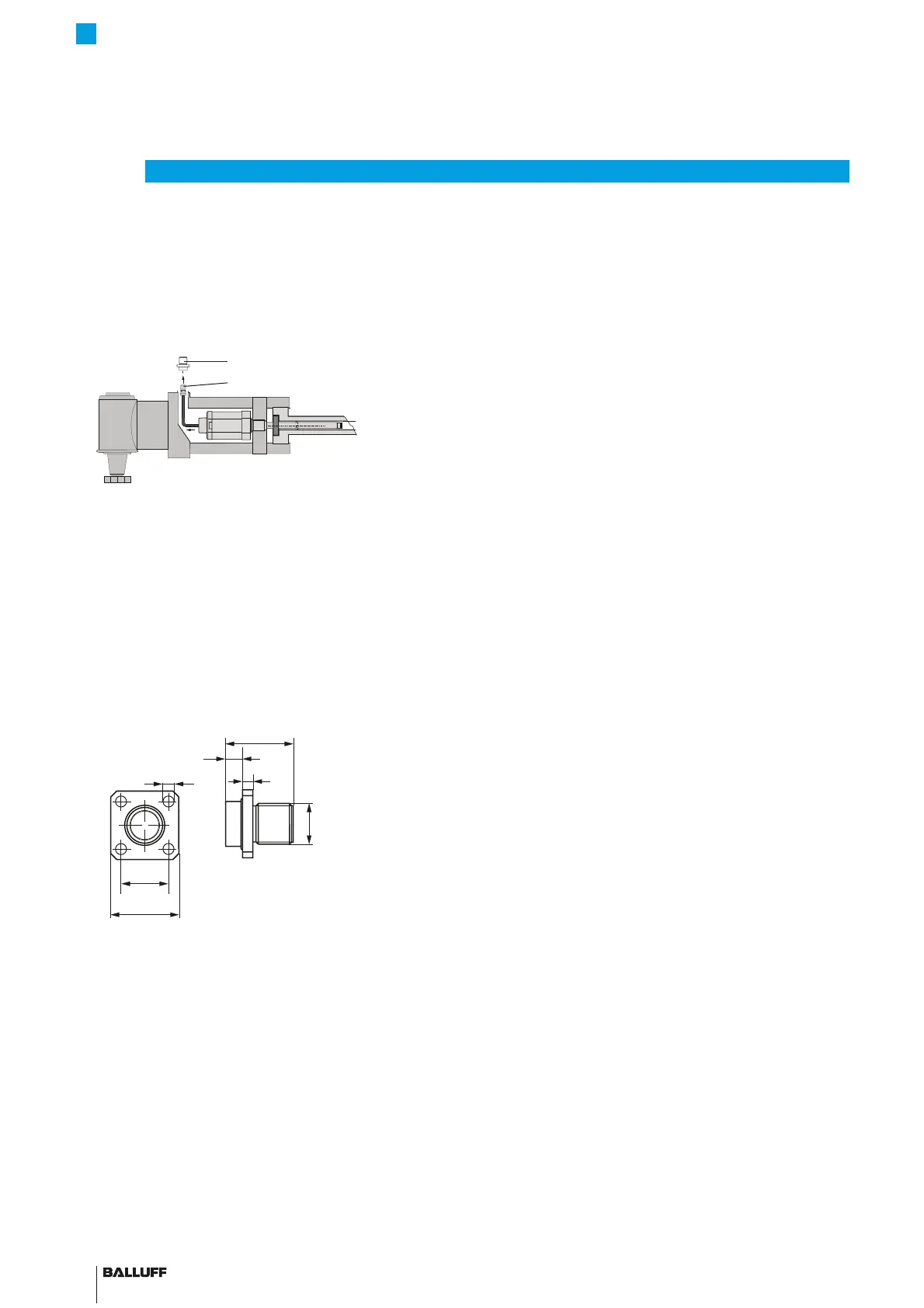

12.3.6 Plug-in system, 8-pin
The transducer is available with an 8-pin pigtail plug-in
system. The plug-in system has two parts:
– The M12 contact insert is preassembled to the trans-
ducer’s cable
– The square flange for assembly using the contact insert
is included in the scope of delivery.
Fig. 12-12:
Square flange
M12 contact insert
Plug-in system based on the example installing the
transducer in a hydraulic cylinder
Series ZA10
Square flange material: Nickel-plated brass
BTL7-…-KA00,2-ZA10, PUR cable 0,2 m
BTL7-…-KA00,3-ZA10, PUR cable 0,3 m
Series ZA15
Square flange material: Stainless steel 1.4404
BTL7-…-KA00,2-ZA15, PUR cable 0,2 m
BTL7-…-KA00,3-ZA15, PUR cable 0,3 m
Fig. 12-13:
20
5
3
M12x1
14
20
Ø 3.2
Square flange
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
