Bandit 20XP - Page 111

Bandit
107Copyright 12/17
MODEL 20XP
Parts may not be exactly as shown.NOTICE
HYDRAULIC COMPONENTS

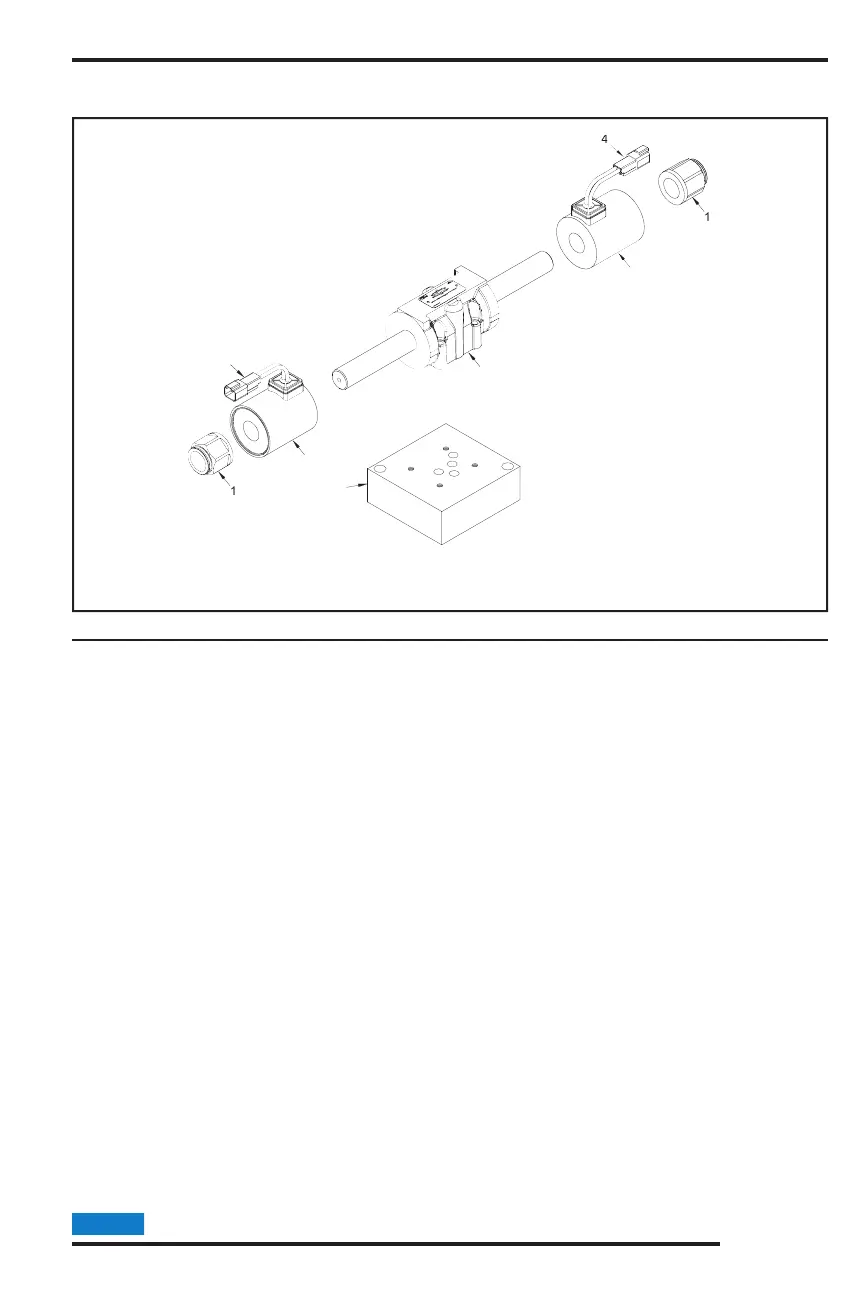

“AUTOFEED PLUS” VALVE (DUAL SOLENOID)
Torque Retainer Nut to a maximum of 4 to 6 ft.-lbs. (5 to 8 Nm) and install Loctite 243.
Over torque will cause damage and will also void warranty.
LOCATION PART NUMBER DESCRIPTION
1. 900-3920-20 Retainer Nut (Danfoss)
2. 900-2909-55 Herschman Connector Only
3. a. 900-3920-19 Solenoid Only - 12v (Danfoss)
b. 900-3923-58 Solenoid Only - 24v (Danfoss)
4. 900-3919-47 Solenoid Assembly (Danfoss Includes #’s 1,3,4, & 6)
5. 900-3918-38 Autofeed Plus Relief Block Subplate (DTS)
6. 900-3915-44 Seal Kit (Not Shown)
7. a. 900-3925-89 10’ Cord and Molded Herschman Connector (Not Shown)
b. 900-3920-71 16’ Cord and Molded Herschman Connector (Not Shown)
c. 900-3918-63 25’ Cord and Molded Herschman Connector (Not Shown)
4
5
3
2
1
2
1
