MODEL 20XP
Parts may not be exactly as shown.NOTICE
OPTIONAL COMPONENTS

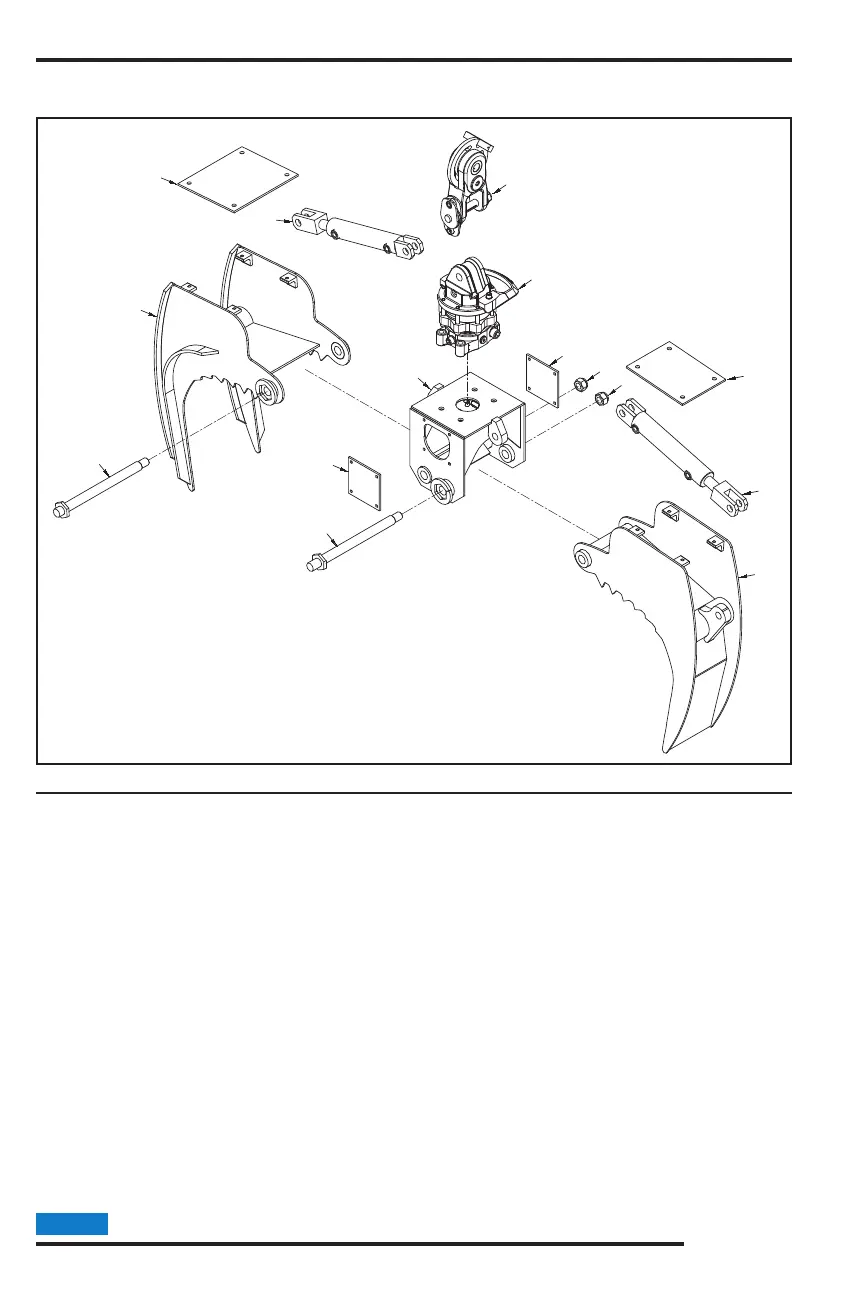

MODEL 75 LOADER GRAPPLE
LOCATION PART NUMBER DESCRIPTION
2
7
7
6
1
3
9
9
10
11
4
5
6
8
8
1. 914-2000-94 Narrow Jaw Assembly (Includes 3)
2. 914-2000-93 Wide Jaw Assembly (Includes 4)
3. 955-1011-66 Cylinder Cover - Narrow Jaw
4. 955-1011-67 Cylinder Cover - Wide Jaw
5. 914-2000-95 Grapple Head Assembly (Includes 6)
6. 955-3009-15 Grapple Fitting Bolt On Cover
7. a. 955-1012-61 Pivot Pin
b. 955-1010-72 Pivot Pin Keeper
8. 900-3933-18 Hydraulic Cylinder - 2 x 8
9. 900-4900-80 Lock Nut for Grapple Pin
10. 900-3910-19 Grapple Rotator
11. 900-4905-69 Swing Brake
