Bandit
121Copyright 12/17
MODEL 20XP
Parts may not be exactly as shown.NOTICE

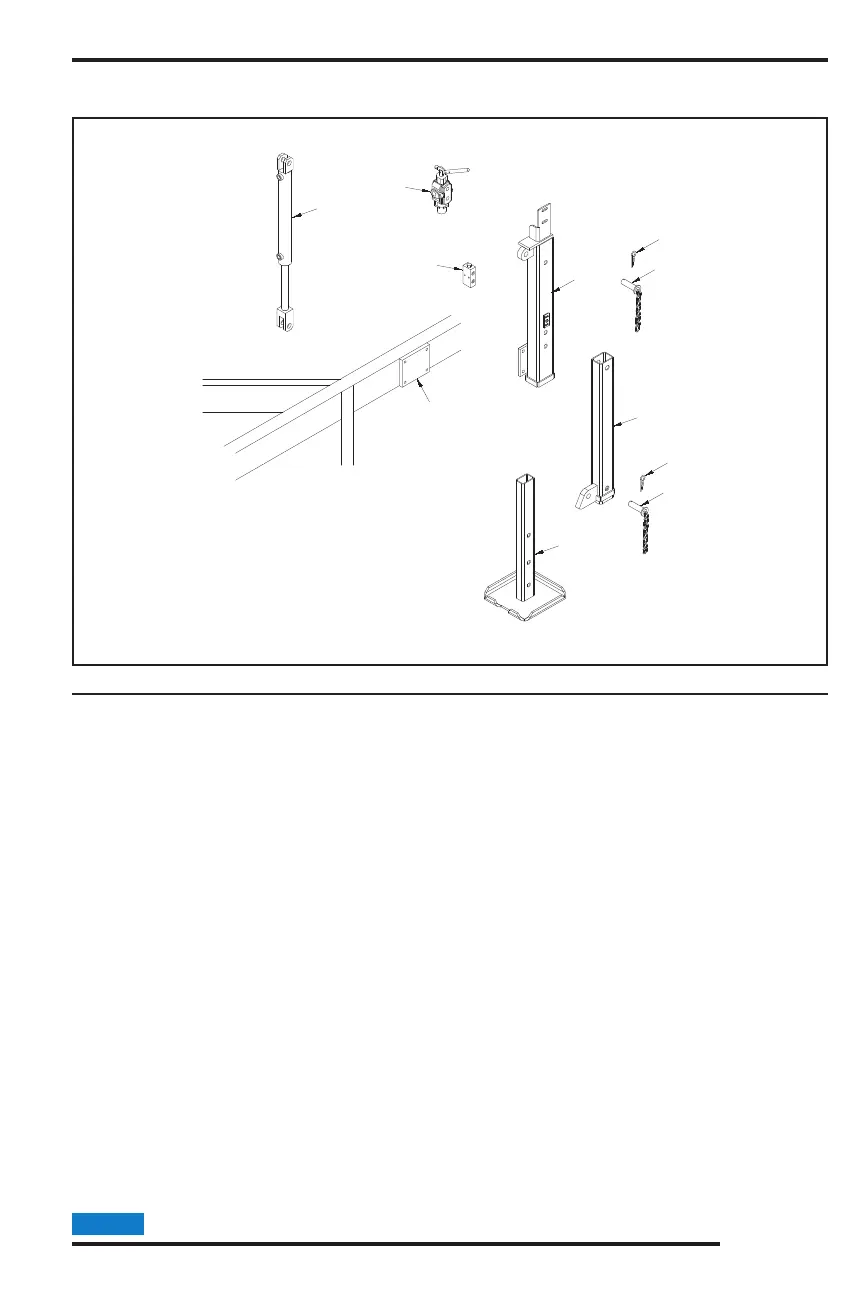

HYDRAULIC TONGUE JACK
LOCATION PART NUMBER DESCRIPTION
7
2
6
6
7
8
9
3
4
1
5
1. 920-300340 Tongue Jack Mount Plate
2. a. 900-3934-24 Tongue Jack Cylinder - Welded
b. 904-0007-14 Pin For Welded Cylinder (Not Shown)
3. 900-3920-01 Tongue Jack Valve
4. 900-3949-09 Check Valve
5. -- Outside Tube Assembly
6. 900-4907-60 Cotter Hair Pin
7. 914-1000-38 Lock Pin
8. 980-0131-50 Inside Tube Assembly
9. 980-0509-53 Drop Leg Foot Pad Assembly
10. 980-0509-00 Bolt-On Hydraulic Tongue Jack Kit (Includes #’s 1 - 9)
OPTIONAL COMPONENTS
