Bandit
55Copyright 12/17
MODEL 20XP
Figure 2
Figure 3

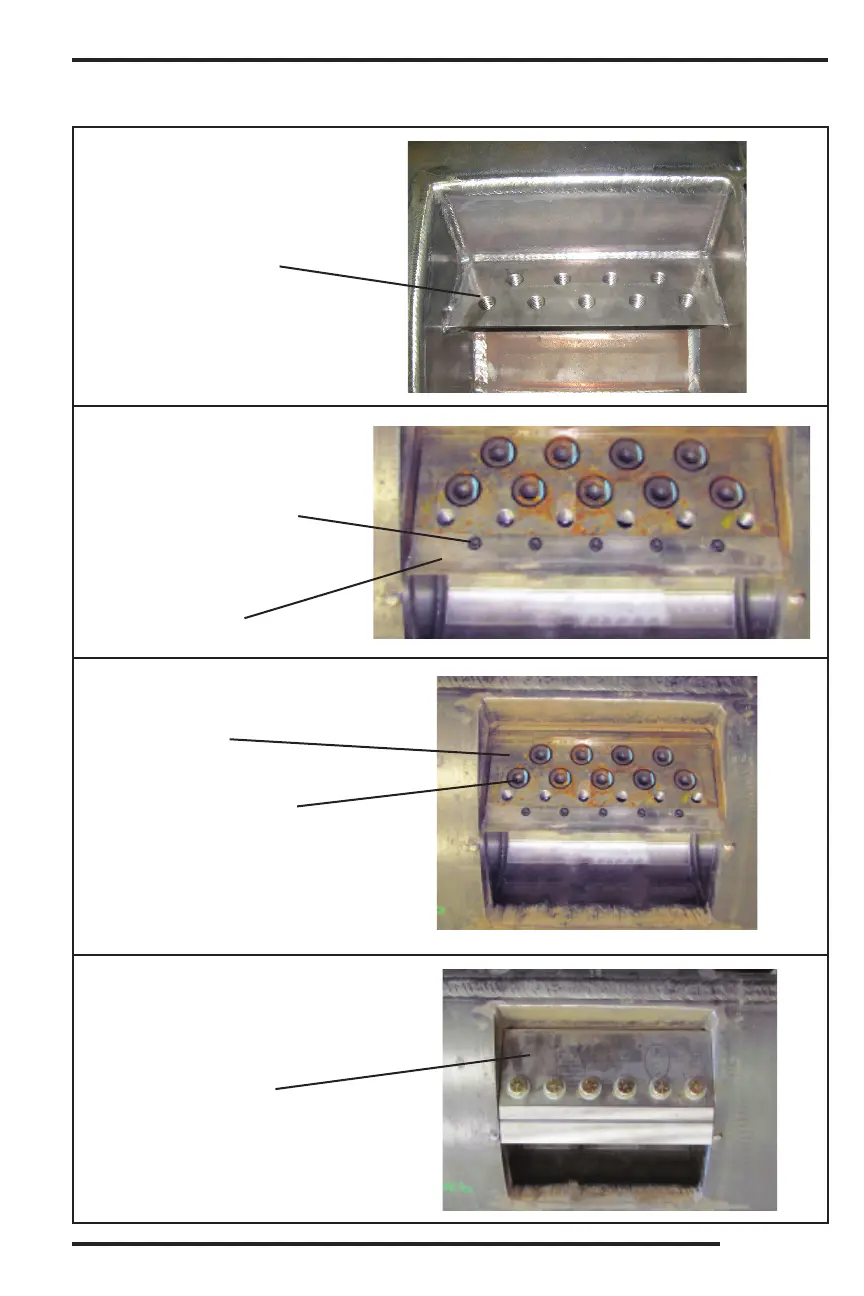

BABBITT KNIFE & HOLDERS INSTALLATION
MAINTENANCE
Figure 4
Figure 1
Clean all the threaded
holes if the knife holder is
removed or replaced.
If replacing the counter knife,
apply Loctite 243 to the socket
head cap screws and torque
to 15 ft.-lbs. (20 Nm).
Counter Knife
Knife Holder
Apply Loctite 243 to the knife
holder bolts and torque to
250 ft.-lbs. (339 Nm).
1
3 2
5 4
67
9 8
Install the knives and
torque the knife bolts to
210 ft.-lbs. (285 Nm)
1 235 4 6
