The chip breaker assembly is sharp and can be dangerous. It is always necessary for your protection to
be extra careful and wear proper hand protection when handling the chip breaker assembly. Before removing
or installing the chip breaker make sure all shut down procedures are followed.

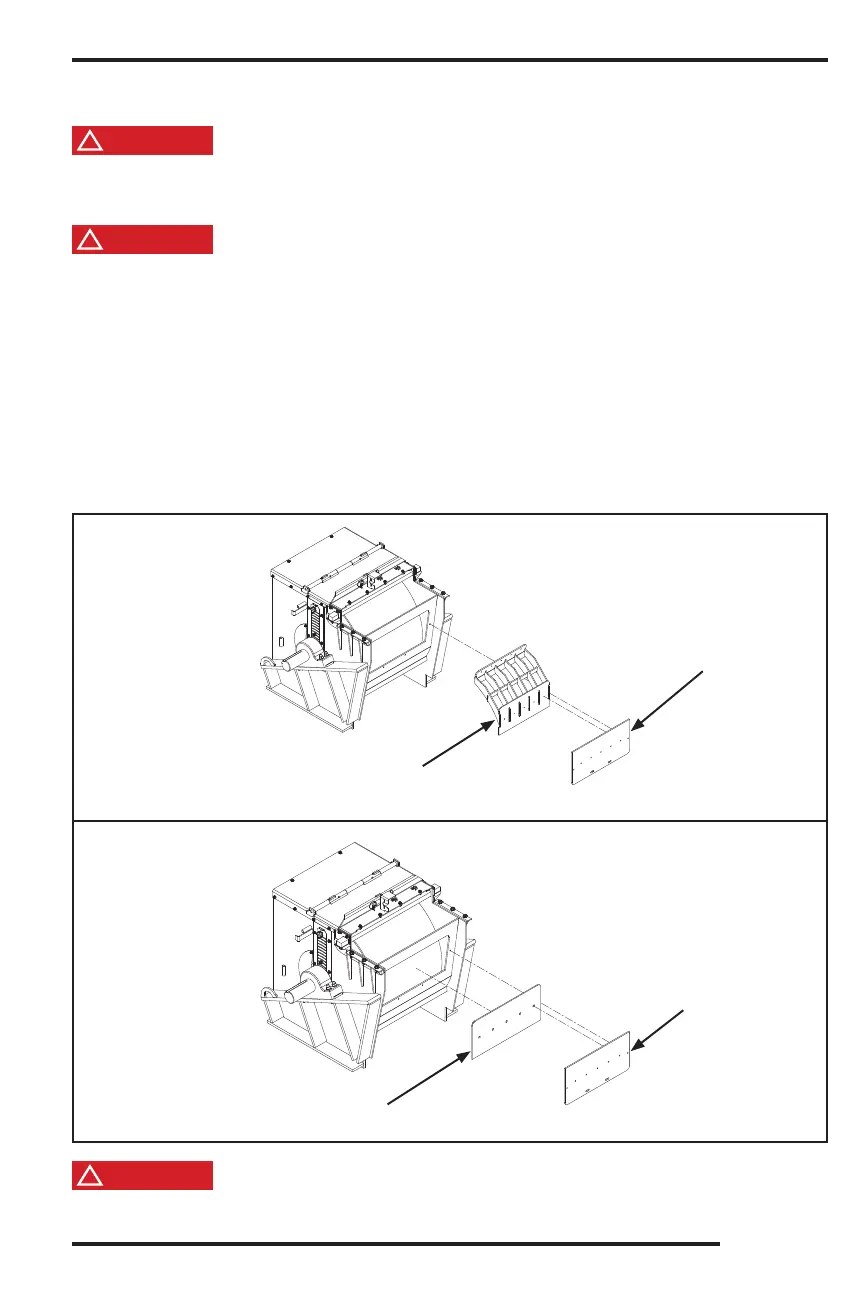

The chip breaker assembly must be installed as shown in Figure 1. Bolt the chip breaker assembly to the
bottom mount plate and then bolt in to the belly band of the drum housing.
Do not operate the machine without the chip breaker assembly or the replacement plate bolted to the
bottom mount plate and the bottom mount plate bolted to the belly band of the drum housing.
If the chip breaker assembly is removed, the replacement plate must be bolted to the bottom mount plate
in place of the chip breaker assembly (see Figure 2) and mounted to the belly band of the drum housing. A
machine without a replacement plate or chip breaker assembly will be more susceptible to plugging .
MAINTENANCE
Before attempting any type of maintenance, disengage clutch, wait for the disc/drum to come to a c omplete
stop, turn o engine, remove the ignition key, make sure the ignition key is in your possession, install the disc/
drum lock pin, and disconnect the battery.
