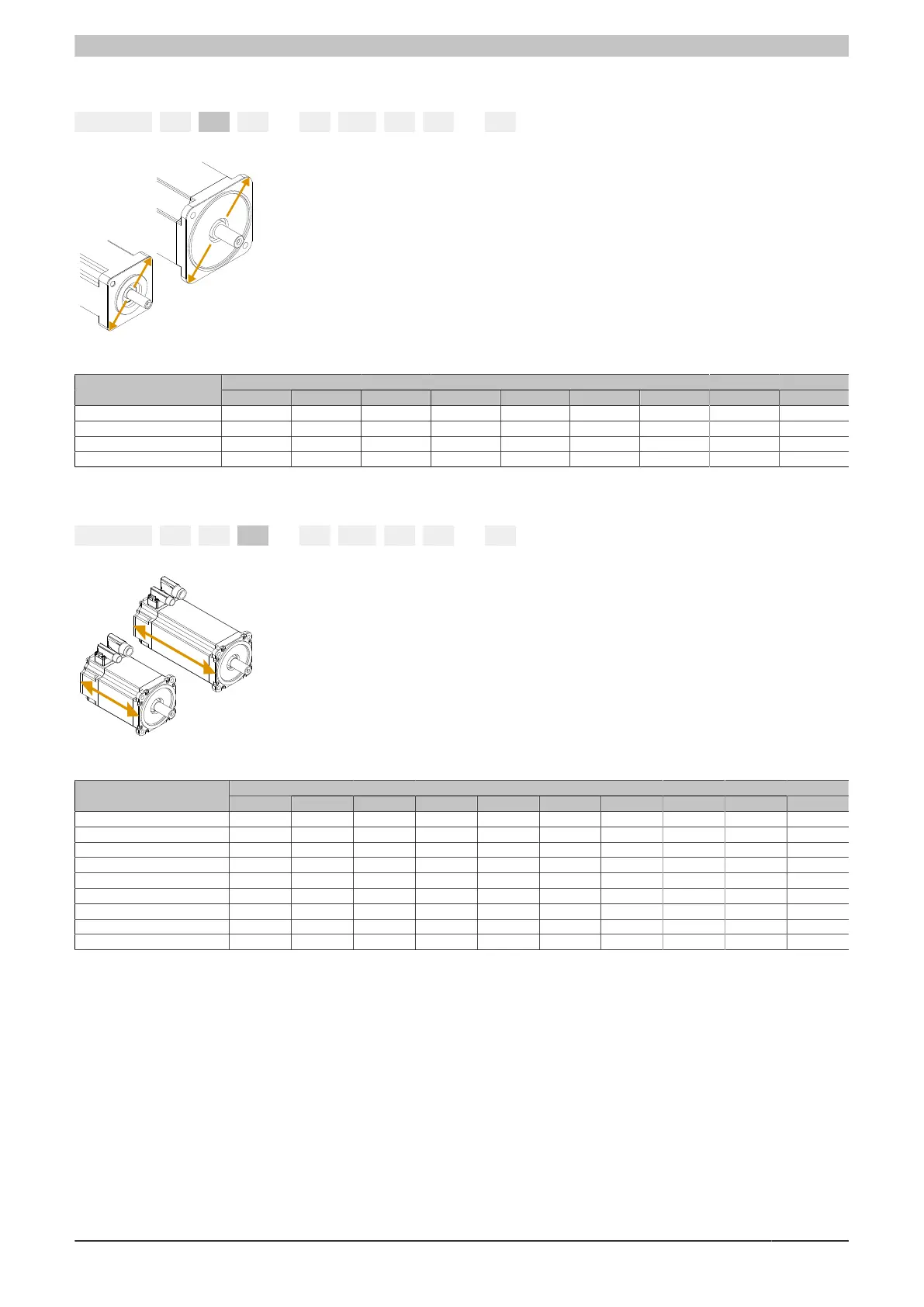

Technical data
8LS...-3 user's manual V2.50 17
2.4 Size (c)
8LS b c d . ee nnn ff gg - h see "Order key" on page 13
8LS three-phase synchronous motors are available in various sizes (2, A, 3 ... 9).
These differ in dimensions (especially flange dimensions) and power data.
The sizes are distinguished by a character (c) in the model number. The larger this
number, the larger the flange dimensions and power data of the respective motor.
Availability
Available sizes (c)
8LSx2 8LSxA 8LSx3 8LSx4 8LSx5 8LSx6 8LSx7 8LSx8 8LSx9
8LSA Yes Yes Yes Yes Yes Yes Yes Yes ---
8LSC --- --- --- Yes Yes Yes Yes Yes ---
8LSO --- --- --- --- --- --- --- --- Yes
8LSP --- --- --- --- --- --- --- --- Yes
2.5 Length (d)
8LS b c d . ee nnn ff gg - h see "Order key" on page 13
8LS three-phase synchronous motors are available in different lengths. These differ
in the power data with identical flange dimensions.
The lengths are distinguished by a number (d) in the model number. The larger this
number, the longer the respective motor.
Availability
Available lengths (d)
8LSxx2 8LSxx3 8LSxx4 8LSxx5 8LSxx6 8LSxx7 8LSxx8 8LSxxA 8LSxxB 8LSxxC
8LSA2 --- Yes Yes Yes Yes --- --- --- --- ---
8LSAA Yes Yes Yes --- --- --- --- --- --- ---
8LSA3 --- Yes Yes Yes Yes Yes --- --- --- ---
8LSA4 / 8LSC4 --- Yes Yes Yes Yes --- --- --- --- ---
8LSA5 / 8LSC5 --- Yes Yes Yes Yes Yes --- Yes Yes Yes
8LSA6 / 8LSC6 --- Yes Yes Yes Yes --- --- --- --- ---
8LSA7 / 8LSC7 --- Yes Yes Yes Yes Yes Yes --- --- ---
8LSA8 / 8LSC8 --- Yes Yes Yes Yes --- --- --- --- ---
8LSO9 / 8LSP9 --- Yes Yes Yes Yes --- --- --- --- ---
