Technical data
8LS...-3 user's manual V2.50 25

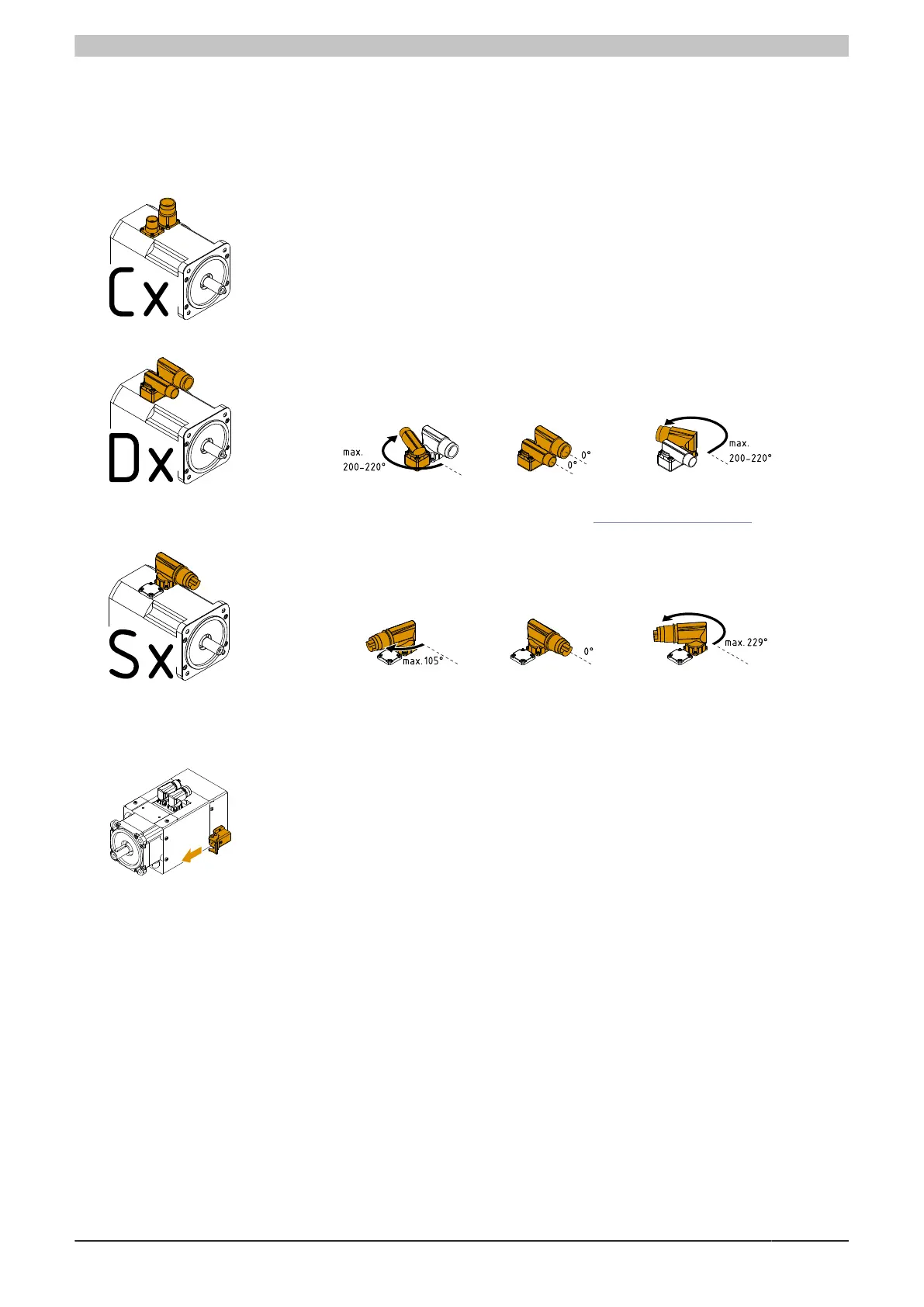

2.8.1 Connection direction (ff) 8LSA / 8LSC
Power connection and encoder connection
8LSA and 8LSC three-phase synchronous motors are available with 3 different connection options.
Straight built-in connector
Connection direction: Straight (top)
Encoder and power cable: Separated with own connections
Angled built-in connector
Connection direction: Angled (swivel connector)
Encoder and power cable: Separated with own connections
Check the angle specifications (max. 200-220°) and the feasibility with regard to
your requirements using the CAD configurator (cad.br-automation.com).
Single-cable solution (hybrid)
Connection direction: Angled, swivel connector
Encoder and power cable: Combined in one cable
Fan connection
8LSC three-phase synchronous motors are only available at the factory with one possible fan connection direction.
Fan connection
Connection direction: Angled
Other connection directions are possible, but must be implemented by the user. The junction box and cover with
fan can be rotated in 90° steps; pay attention to possible interference with the motor connections.
Further information:
Changing the fan connection direction (page 263)
Motor options (ff) - Overview (order code)
see "Motor options (ff) 8LSA / 8LSC" on page 24
