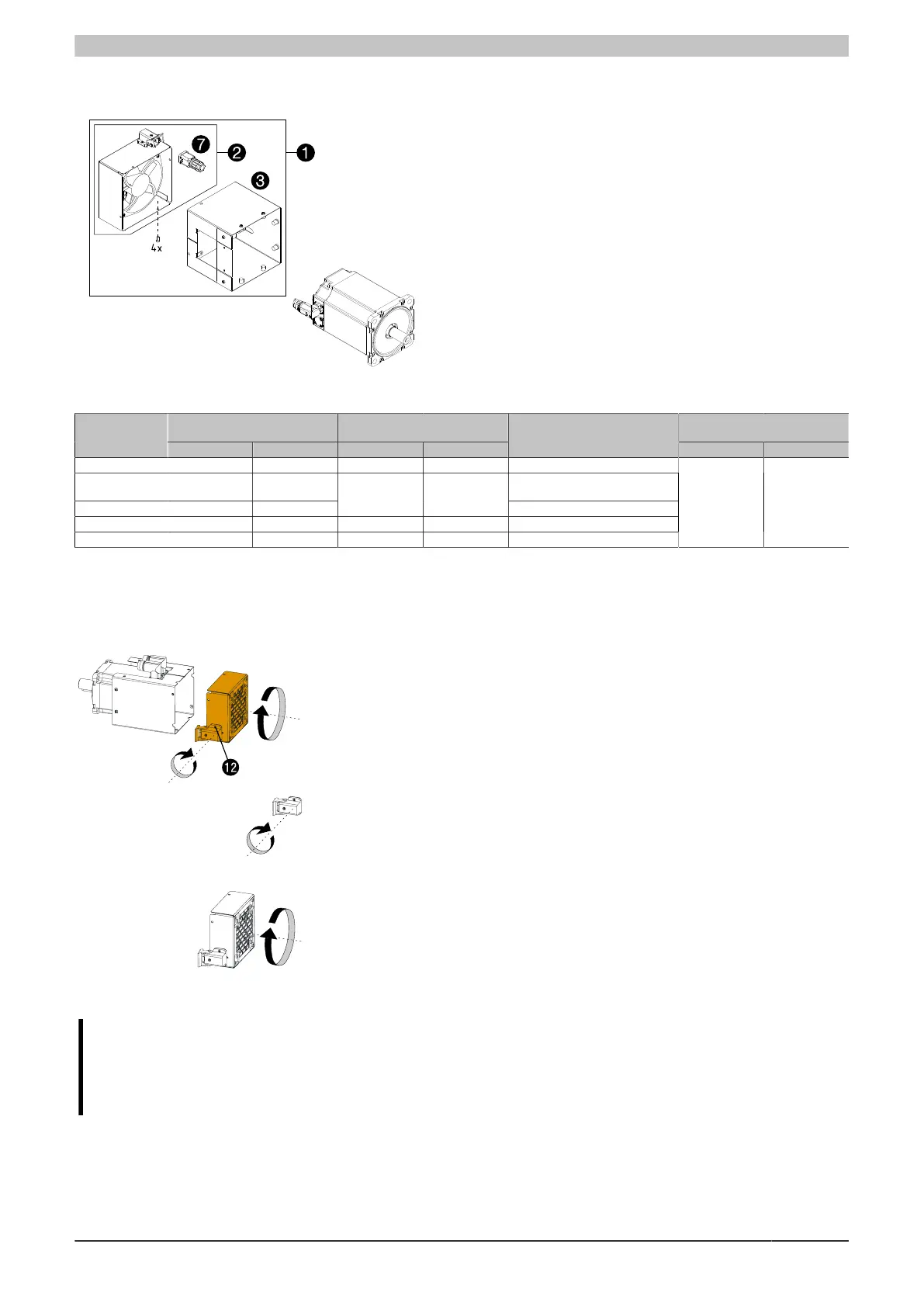

2.18 Replacement parts - 8LSC fan kit
Replacement parts for the fan assembly are available for
motors with cooling type 8LSC.
Overview of replacement parts
1
Fan kit
2
Cover with fan
7
Fan connector
24 VDC 230 VAC 24 VDC 230 VAC
3
Side panel for fan
Metal Plastic
8LSC4...-3 8XMFL4.00-1 8XMFL4.10-1 8XMFL4.02-1 8XMFL4.12-1 8XMFL4.01-1
8LSC5...-3
8LSC6...-3
8XMFL5.00-1 8XMFL5.10-1 8XMFL5.01-1
8LSC5A/B/C...-3 8XMFL5.C0-1 8XMFL5.C2-1
8XMFL5.02-1 8XMFL5.12-1
8XMFL5.C3-1
8LSC7...-3 8XMFL7.00-1 8XMFL7.10-1 8XMFL7.02-1 8XMFL7.12-1 8XMFL7.01-1
8LSC8...-3 8XMFL8.00-1 8XMFL8.10-1 8XMFL8.02-1 8XMFL8.12-1 8XMFL8.01-1
8XMFLC.02-1 8XMFLC.01-1
230 VAC / 24 VDC fans - Technical data
see "Fan modules" on page 39
Connection direction
8LSC three-phase synchronous motors are only available at the factory with
the fan connection direction shown.
Other connection directions are possible, but must be implemented by the
user.
The junction box and cover with fan can be rotated in 90° steps; pay attention
to possible interference with the motor connections.
Built-in connector: Loosen the two mounting screws (12) and carefully lift
the built-in connector. Turn the built-in connector to the desired position (pos-
sible in 90° steps). Make sure that the built-in connector seal is not damaged
and that no cables are crushed. Tighten the mounting screws (12) again.
Cover with fan: After disassembly, the cover with fan can be easily mount-
ed in the desired position; see the following disassembly and assembly in-
structions.
Disassembly / Assembly
Caution!
Work on motors and their wiring is only permitted to be carried out by qualified personnel
2)
without
voltage applied. The control cabinet must first be disconnected from the power supply and secured
against being switched on again.
2)
see "Qualified personnel" on page 9
