Technical data
8LS...-3 user's manual V2.50 37
2.11 Special motor options (gg) 8LSO / 8LSP
8LS b c d . ee nnn ff gg - h see "Order key" on page 13
The special motor option is specified as part of the model number in the form of a 2-character code (gg).
No special motor option
If no special motor option is desired, the two-character code (gg) as part of the model number only provides
information about the cooling type.
Order code
Cool-
ing type
(gg)
Standard fan
24 VDC
8LSO9 00 ---
8LSP9 05 Yes
No special motor option

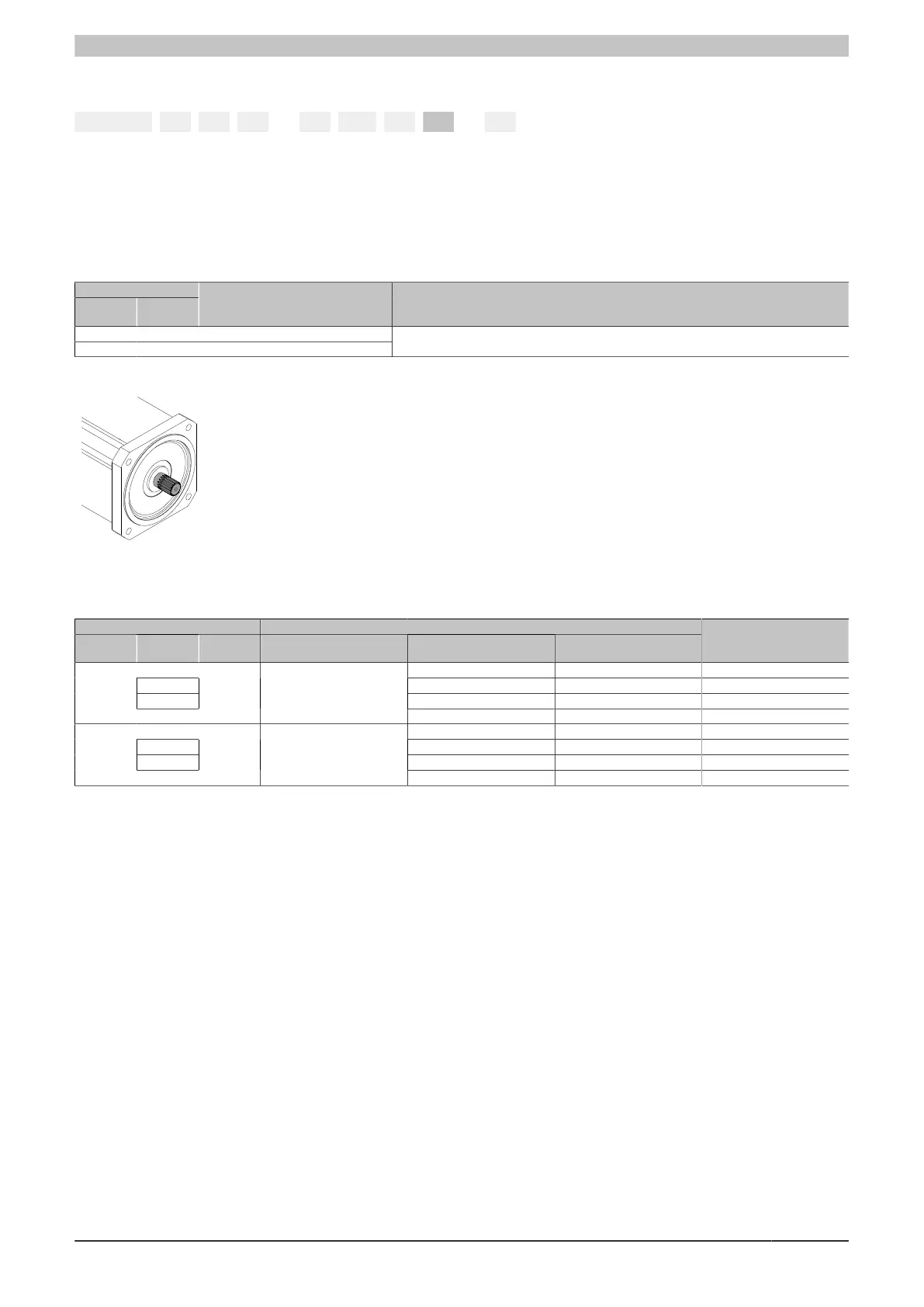

Toothed shaft for 8LSO / 8LSP
The toothed shaft manufactured per ANSI B 92.1 is available as special motor option 44
for speeds 1300 and 1500.
The toothed shaft is only available with special motor options (ff). Note that the code (ff) in the respective chapter
section ("Motor options (ff) 8LSO / 8LSP" on page 30) is specified with a smooth shaft, which becomes a toothed
shaft due to special motor option 44, however.
Order code Motor option (ff)
Cool-
ing type
(ff) (gg) Mounting type Connection direction Oil seal
Standard fan
24 VDC
B6 270° (right) Yes ---
F6 90° (left) Yes ---
K6 180° B-side bearing Yes ---
8LSO9
P6
44 Flange/Foot
0° (A-side bearing) Yes ---
B6 270° (right) Yes Yes
F6 90° (left) Yes Yes
K6 180° B-side bearing Yes Yes
8LSP9
P6
44 Flange/Foot
0° (A-side bearing) Yes Yes
