Technical data
8LS...-3 user's manual V2.50 31

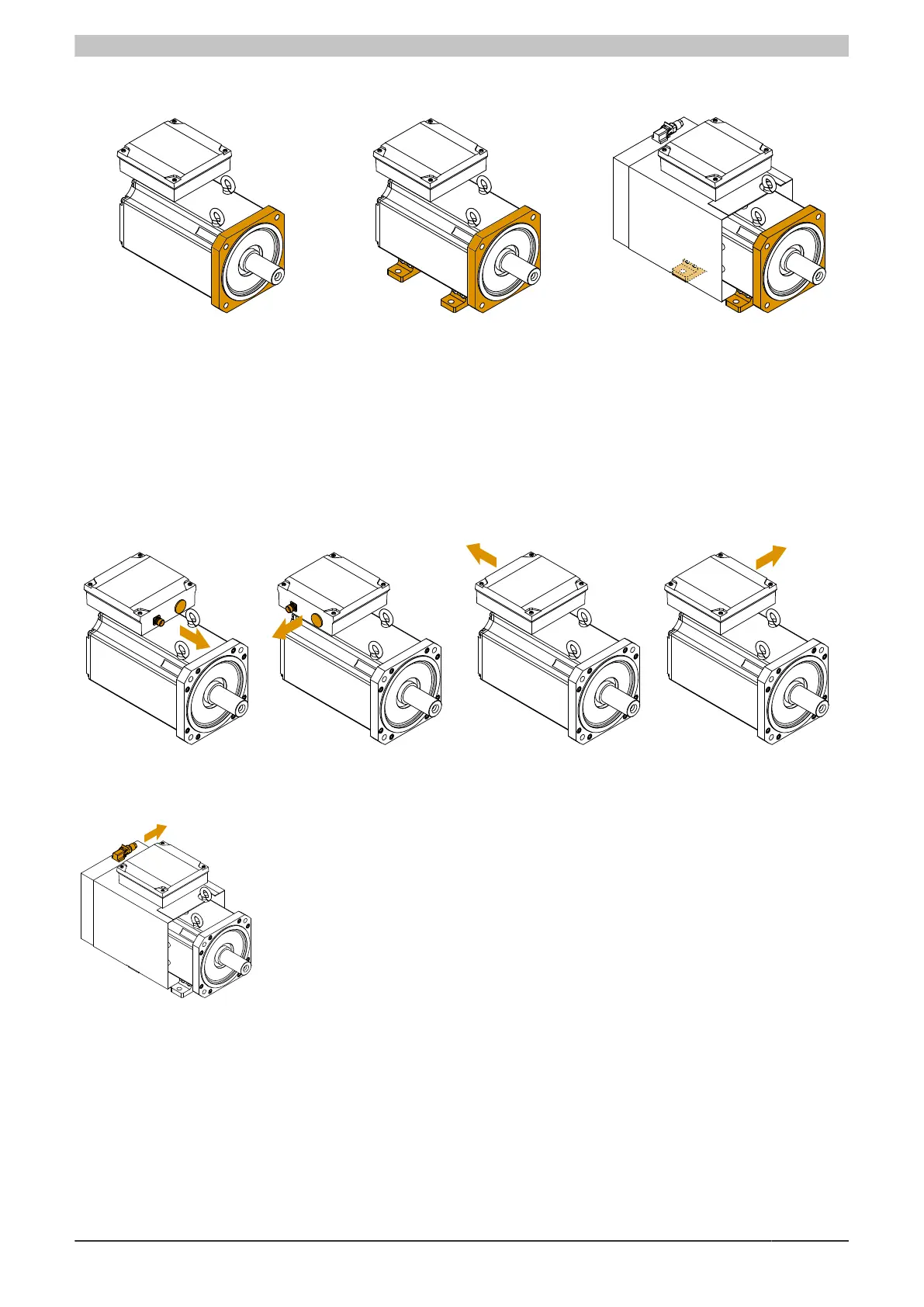

Mounting types
Mounting flange Mounting flange and mounting base
8LSO 8LSO 8LSP
2.9.2 Connection direction (ff) for 8LSO / 8LSP
8LSO and 8LSP three-phase synchronous motors are available with a terminal box and 4 different connection
directions
Motor options (ff) - Overview (order code)
see "Motor options (ff) 8LSO / 8LSP" on page 30
Power connection and encoder connection
0° 90° 180° 270°
Fan connection
270°
With the 8LSP three-phase synchronous motor, the fan connection direction is
always 270°.
