Technical data
30 8LS...-3 user's manual V2.50

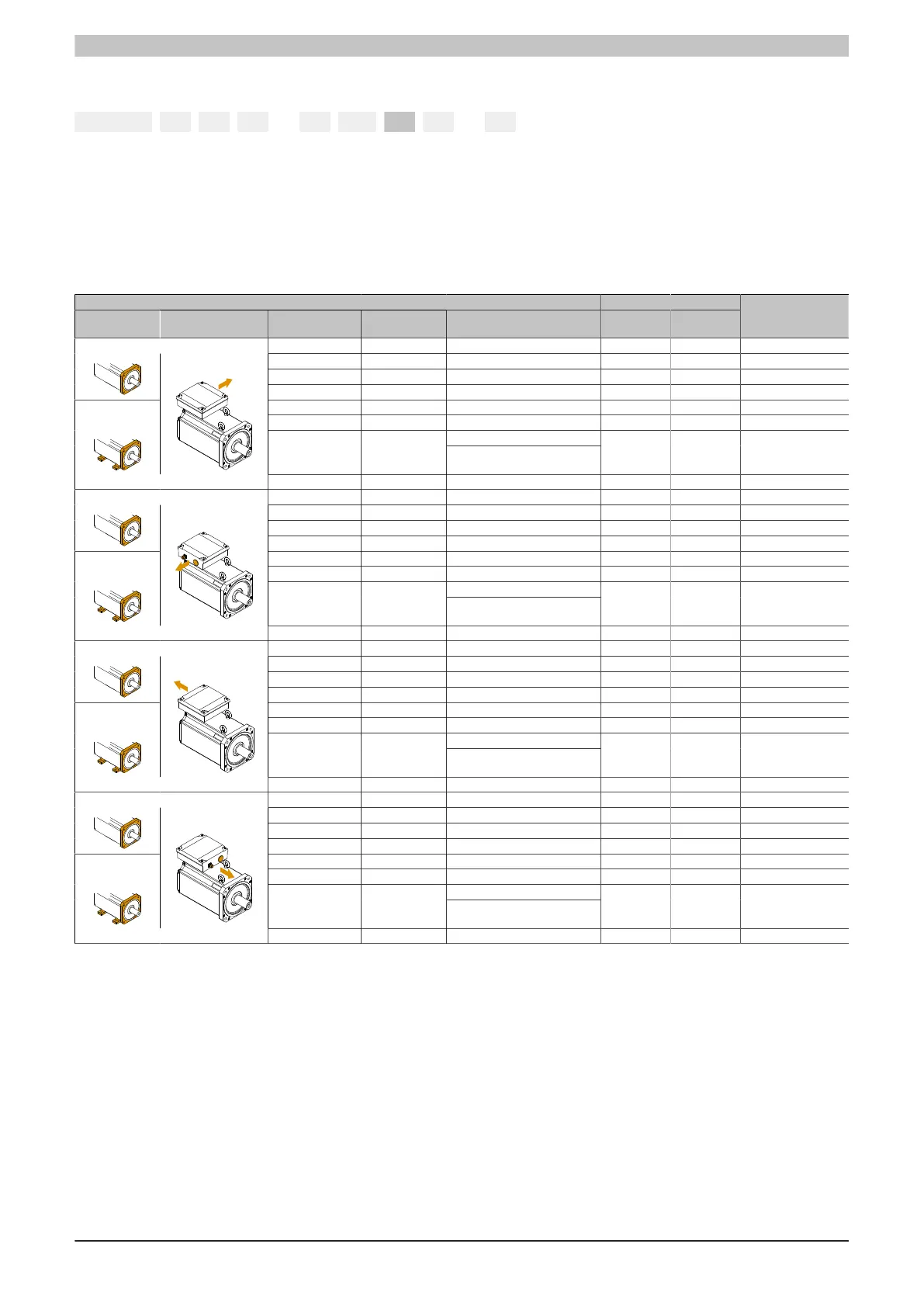

2.9 Motor options (ff) 8LSO / 8LSP
8LS b c d . ee nnn ff gg - h see "Order key" on page 13
See the following table for the corresponding code (ff) in the order key.
Applies to all options:
The terminal box is always located on top; the cable outlet / connection direction is shown in the options table.
The encoder connection is straight and facing the connection direction.
Availability
Motor option Availability
Mounting type Connection
direction
Oil seal Holding brake Shaft end 8LSO 8LSP
Order code (ff)
--- --- Smooth shaft Yes --- A0
--- --- Keyed shaft Yes --- A1
Yes --- Smooth shaft Yes --- A6
Flange
Yes --- Keyed shaft Yes --- A7
--- --- Smooth shaft Yes Yes B0
--- --- Keyed shaft Yes Yes B1
Smooth shaft
Yes ---
Toothed shaft
1)
(special motor option)
Yes Yes B6
Flange/Foot
270° (right)
Yes --- Keyed shaft Yes Yes B7
--- --- Smooth shaft Yes --- E0
--- --- Keyed shaft Yes --- E1
Yes --- Smooth shaft Yes --- E6
Flange
Yes --- Keyed shaft Yes --- E7
--- --- Smooth shaft Yes Yes F0
--- --- Keyed shaft Yes Yes F1
Smooth shaft
Yes ---
Toothed shaft
1)
(special motor option)
Yes Yes F6
Flange/Foot
90° (left)
Yes --- Keyed shaft Yes Yes F7
--- --- Smooth shaft Yes --- J0
--- --- Keyed shaft Yes --- J1
Yes --- Smooth shaft Yes --- J6
Flange
Yes --- Keyed shaft Yes --- J7
--- --- Smooth shaft Yes Yes K0
--- --- Keyed shaft Yes Yes K1
Smooth shaft
Yes ---
Toothed shaft
1)
(special motor option)
Yes Yes K6
Flange/Foot
180° B-side bearing
Yes --- Keyed shaft Yes Yes K7
--- --- Smooth shaft Yes --- N0
--- --- Keyed shaft Yes --- N1
Yes --- Smooth shaft Yes --- N6
Flange
Yes --- Keyed shaft Yes --- N7
--- --- Smooth shaft Yes Yes P0
--- --- Keyed shaft Yes Yes P1
Smooth shaft
Yes ---
Toothed shaft
1)
(special motor option)
Yes Yes P6
Flange/Foot
0° (A-side bearing)
Yes --- Keyed shaft Yes Yes P7
1) The "toothed shaft" is only available as a special motor option (gg) with code 44: see "Special motor options (gg) 8LSO / 8LSP" on page 37.
2.9.1 Mounting type (ff) for 8LSO/8LSP
Cooling type 8LSO is available with the mounting flange as well as the mounting flange and mounting base.
Cooling type 8LSP is always equipped with a mounting flange and mounting base.
If the motor is equipped with a mounting flange and mounting base, then installation takes place either on the
mounting flange or the mounting base.
Motor options (ff) - Overview (order code)
see "Motor options (ff) 8LSO / 8LSP" on page 30
