Installation and connection
282 8LS...-3 user's manual V2.50

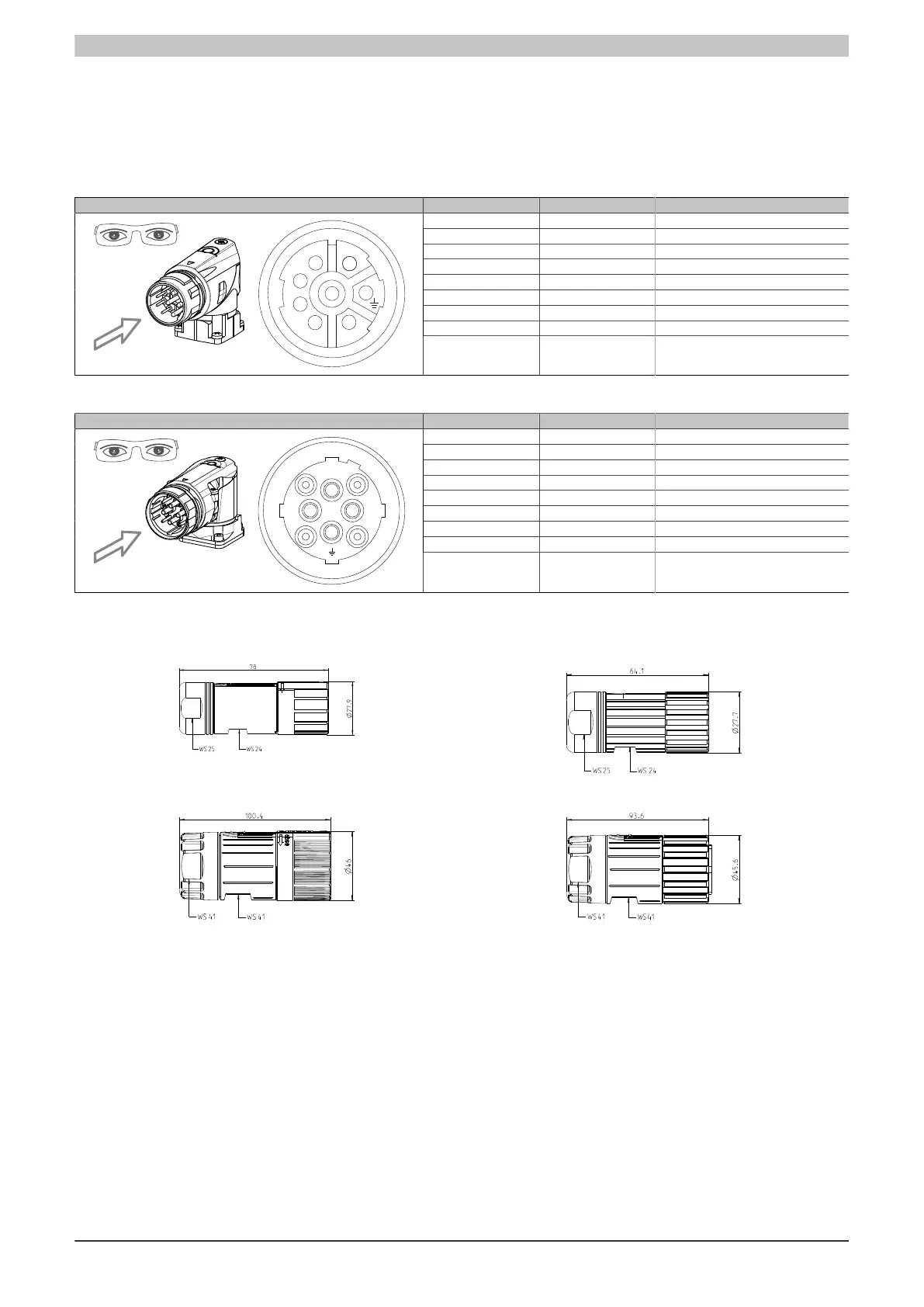

5.5.4 Connection type
5.5.4.1 Power connection
5.5.4.1.1 Pinout power connection.
Built-in connector, size 1
Pin Description Function
1 U Motor connection U
4 V Motor connection V
3 W Motor connection W
2 PE Grounding
A T+ Temperature +
B T- Temperature -
C B+ Brake +
D B- Brake -
3D
C
B
A
1
2
4
Built-in connector, size 1.5
Pin Description Function
U U Motor connection U
V V Motor connection V
W W Motor connection W
Ground symbol PE Grounding
1 T+ Temperature +
2 T- Temperature -
+ B+ Brake +
- B- Brake -
V
W
2
U
1
+
5.5.4.1.2 Power connector dimensions
Size 1 (speedtec) Size 1 (screwed in)
SW 25
SW 24
SW25
SW24
64,1
Size 1.5 (speedtec) Size 1.5 (screwed in)
SW 41
SW 41
SW41
SW41
93,6
45,6
