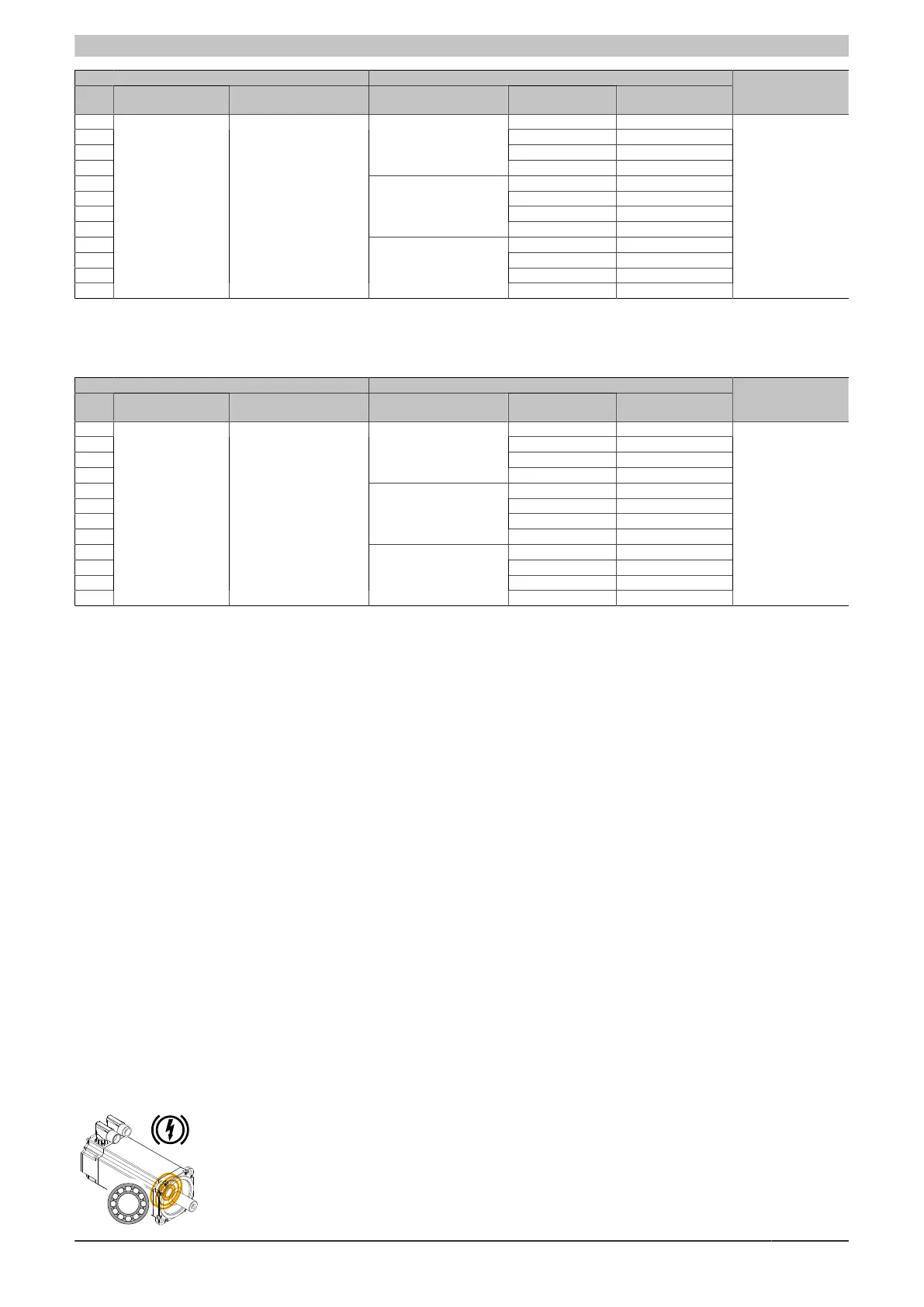

Technical data
8LS...-3 user's manual V2.50 35
Order code Options (ff)
(ff) (gg)
8LSA
(gg)
8LSC
Connection direction Oil seal Shaft end
Special motor
options (gg)
C0 --- Smooth shaft
C1 --- Keyed shaft
C6 Yes Smooth shaft
C7
Straight (top connector)
Yes Keyed shaft
D0 --- Smooth shaft
D1 --- Keyed shaft
D6 Yes Smooth shaft
D7
Angled (swivel connector)
Yes Keyed shaft
S0 --- Smooth shaft
S1 --- Keyed shaft
S6 Yes Smooth shaft
S7
04
(self-cooling)
11
(standard fan 24 VDC)
Single-cable so-
lution (hybrid)
Angled, swivel connector
Yes Keyed shaft
Reinforced A-
side bearing
Permissible combinations (with special-purpose holding brake for reinforced A-side bearing)
The following combinations are available with special motor option reinforced A-side bearing (gg).
Order code Options
(ff) (gg)
8LSA
(gg)
8LSC
Connection direction Oil seal Shaft end
Special motor
options (gg)
CC --- Smooth shaft
CD --- Keyed shaft
CE Yes Smooth shaft
CF
Straight (top connector)
Yes Keyed shaft
DC --- Smooth shaft
DD --- Keyed shaft
DE Yes Smooth shaft
DF
Angled (swivel connector)
Yes Keyed shaft
SC --- Smooth shaft
SD --- Keyed shaft
SE Yes Smooth shaft
SF
04
(self-cooling)
11
(standard fan 24 VDC)
Single-cable so-
lution (hybrid)
Angled, swivel connector
Yes Keyed shaft
Reinforced A-
side bearing
+
Special-purpose
holding brake
Example orders
Motor with reinforced A-side bearing - Without holding brake
For an 8LSA55 with D0 encoder with connection type "Single-cable solution, angled (swivel connector)", the fol-
lowing selection is made: No holding brake, no oil seal, with key. Motor option (ff) = S1. A reinforced A-side bearing
is also required. Special motor option (gg) for 8LSA = 04.
Order code: 8LSA55.D0030S104-3
For an 8LSC55 with D0 encoder with connection type "Single-cable solution, angled (swivel connector)", the fol-
lowing selection is made: No holding brake, no oil seal, with key. Motor option (ff) = D1. A reinforced A-side bearing
is also required. Special motor option (gg) for 8LSC = 11.
The order code is: 8LSC55.D0030S111-3
Motor with reinforced A-side bearing - With special-purpose holding brake
A reinforced A-side bearing is required for an 8LSA55 with E0 encoder and the desired angled (swivel connector)
connection direction. Special motor option (gg) for 8LSA = 04. The following selection is also made: Special-pur-
pose holding brake, no oil seal, with key. Motor option (ff) = DD
The order code is: 8LSA55.E0030DD04-3
A reinforced A-side bearing is required for an 8LSC55 with E0 encoder and the desired angled (swivel connector)
connection direction. Special motor option (gg) for 8LSC = 11. The following selection is made: No holding brake,
no oil seal, with key. Motor option (ff) = DD .
The order code is: 8LSC55.E0030DD11-3
2.10.1 Special-purpose holding brake for reinforced A-side bearing
A special-purpose holding brake is required for special motor option "Reinforced A-side
bearing" in conjunction with a holding brake.
