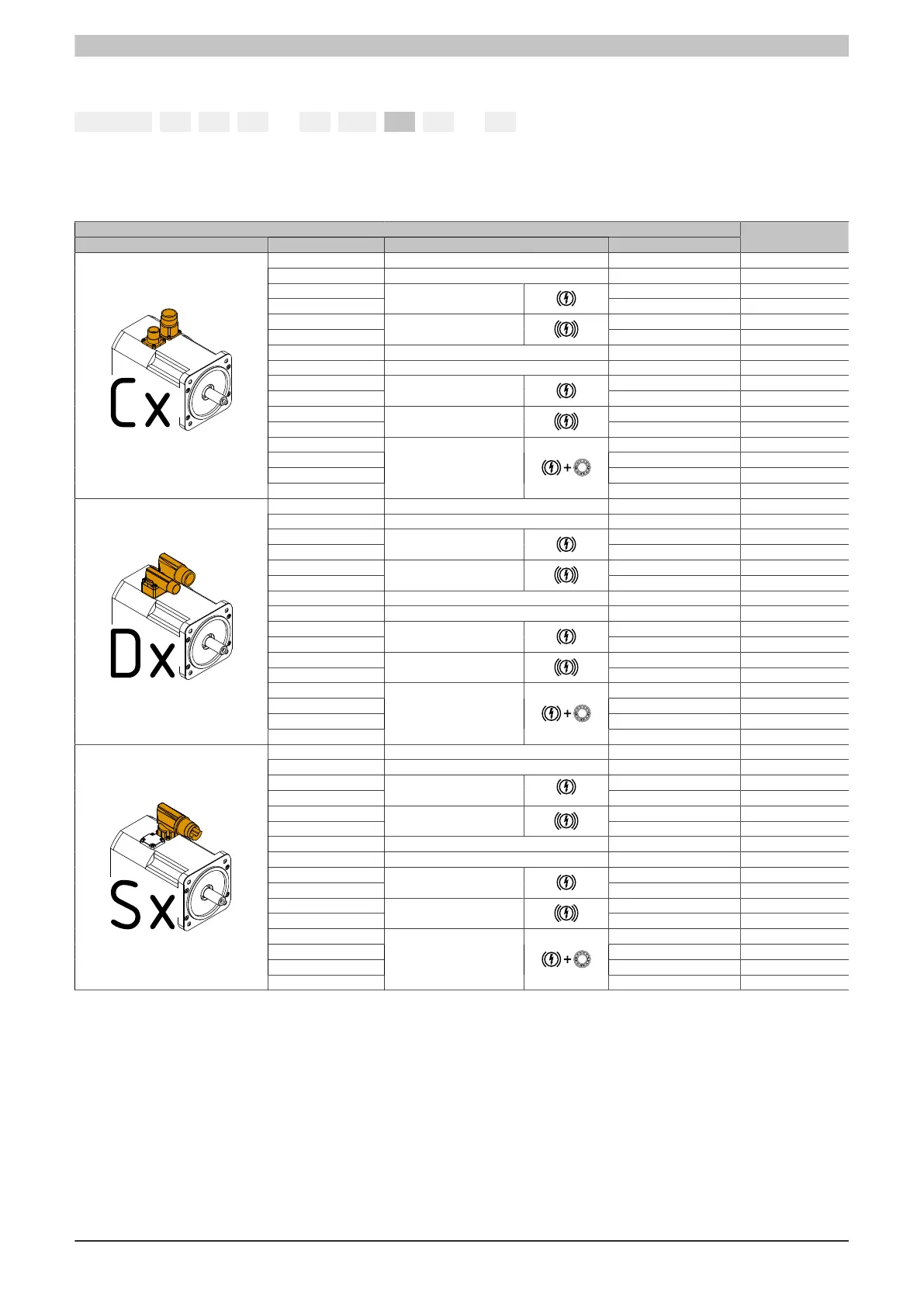

2.8 Motor options (ff) 8LSA / 8LSC
8LS b c d . ee nnn ff gg - h see "Order key" on page 13
See the following table for the corresponding code (ff) in the order key.
The first position in the code (ff) defines the connection direction with options Cx, Dx and Sx. The second position
(e.g. x0, x1, x2, x3 ... xA, xB, xC, etc.) defines all other motor options according to the table.
Motor option
Connection direction Oil seal Holding brake Shaft end
Order code (ff)
--- --- Smooth shaft C0
--- --- Keyed shaft C1
--- Smooth shaft C2
---
Standard holding brake
Keyed shaft C3
--- Smooth shaft C4
---
Heavy-duty holding brake
Keyed shaft C5
Yes --- Smooth shaft C6
Yes --- Keyed shaft C7
Yes Smooth shaft C8
Yes
Standard holding brake
Keyed shaft C9
Yes Smooth shaft CA
Yes
Heavy-duty holding brake
Keyed shaft CB
--- Smooth shaft CC
--- Keyed shaft CD
Yes Smooth shaft CE
Straight (top connector)
Encoder and power cable:
Separated with own connections
Yes
Special-purpose
holding brake
2)
(special motor option)
Keyed shaft CF
--- --- Smooth shaft D0
--- --- Keyed shaft D1
--- Smooth shaft D2
---
Standard holding brake
Keyed shaft D3
--- Smooth shaft D4
---
Heavy-duty holding brake
Keyed shaft D5
Yes --- Smooth shaft D6
Yes --- Keyed shaft D7
Yes Smooth shaft D8
Yes
Standard holding brake
Keyed shaft D9
Yes Smooth shaft DA
Yes
Heavy-duty holding brake
Keyed shaft DB
--- Smooth shaft DC
--- Keyed shaft DD
Yes Smooth shaft DE
Angled (swivel connector)
Encoder and power cable:
Separated with own connections
Yes
Special-purpose
holding brake
2)
(special motor option)
Keyed shaft DF
--- --- Smooth shaft S0
--- --- Keyed shaft S1
--- Smooth shaft S2
---
Standard holding brake
Keyed shaft S3
--- Smooth shaft S4
---
Heavy-duty holding brake
Keyed shaft S5
Yes --- Smooth shaft S6
Yes --- Keyed shaft S7
Yes Smooth shaft S8
Yes
Standard holding brake
Keyed shaft S9
Yes Smooth shaft SA
Yes
Heavy-duty holding brake
Keyed shaft SB
--- Smooth shaft SC
--- Keyed shaft SD
Yes Smooth shaft SE
Single-cable solution (hybrid),
angled, swivel connector
1)
Encoder and power ca-
ble: Combined in one cable
Yes
Special-purpose
holding brake
2)
(special motor option)
Keyed shaft SF
1) Temperature evaluation and availability: see "Availability - Single-cable solution (hybrid) (ff) 8LSA / 8LSC" on page 26
2) The "special-purpose holding brake" is only available in combination with a "reinforced A-side bearing": see "Special motor options (gg) 8LSA / 8LSC" on
page 34.
