Installation and connection
8LS...-3 user's manual V2.50 281

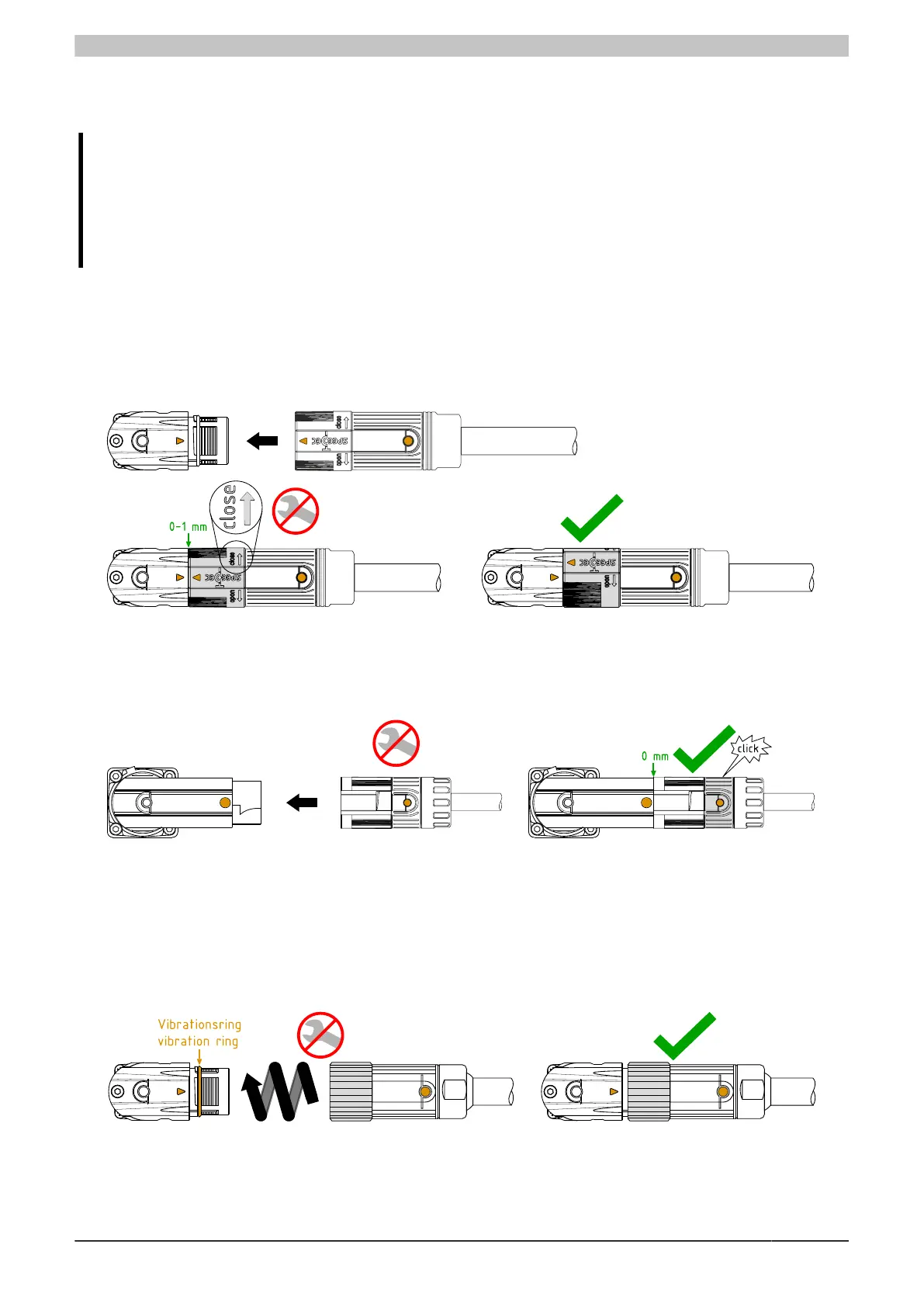

5.5.3 Connecting connectors properly
The power and encoder connectors are available in different variants.
Caution!
Damage due to improper connector installation!
Incorrectly attached connectors can lead to malfunctions and damage to the motor and encoder!
•
Always attach the connectors without excessive force or the use of tools.
•
Make sure that the connectors are fully attached and locked if necessary.
5.5.3.1 speedtec system
The speedtec system has a tool-free quick-release fastener. During installation, make sure that the connectors
are tightly connected and locked.
In addition to the quick-release fastener, the speedtec connector also has internal threads, making it compatible
with built-in connectors that use a screw connection.
5.5.3.2 springtec system
The self-locking springtec system twists the first ring when attached and returns it to the middle position after it
has been locked.
5.5.3.3 Screw terminal
The screw terminal does not require a tool. During installation, make sure that the connector is screwed on straight.
If strong vibrations (>4-6 g) are expected during operation, the screw connection must be secured with a vibration
ring. This prevents the screw connection from coming loose (does not function as a seal).
The vibration rings can be pushed onto the power/signal connector on the motor without requiring a tool. The
vibration ring is only permitted to be pushed into the first mounting groove (immediately after the fine thread).
Vibration ring order data
Model number: 8PX000.00-1
Model number: 8PX001.00-1
50-piece anti-vibration ring size 1 for speedtec connector
10-piece anti-vibration ring size 1.5 for speedtec connector
