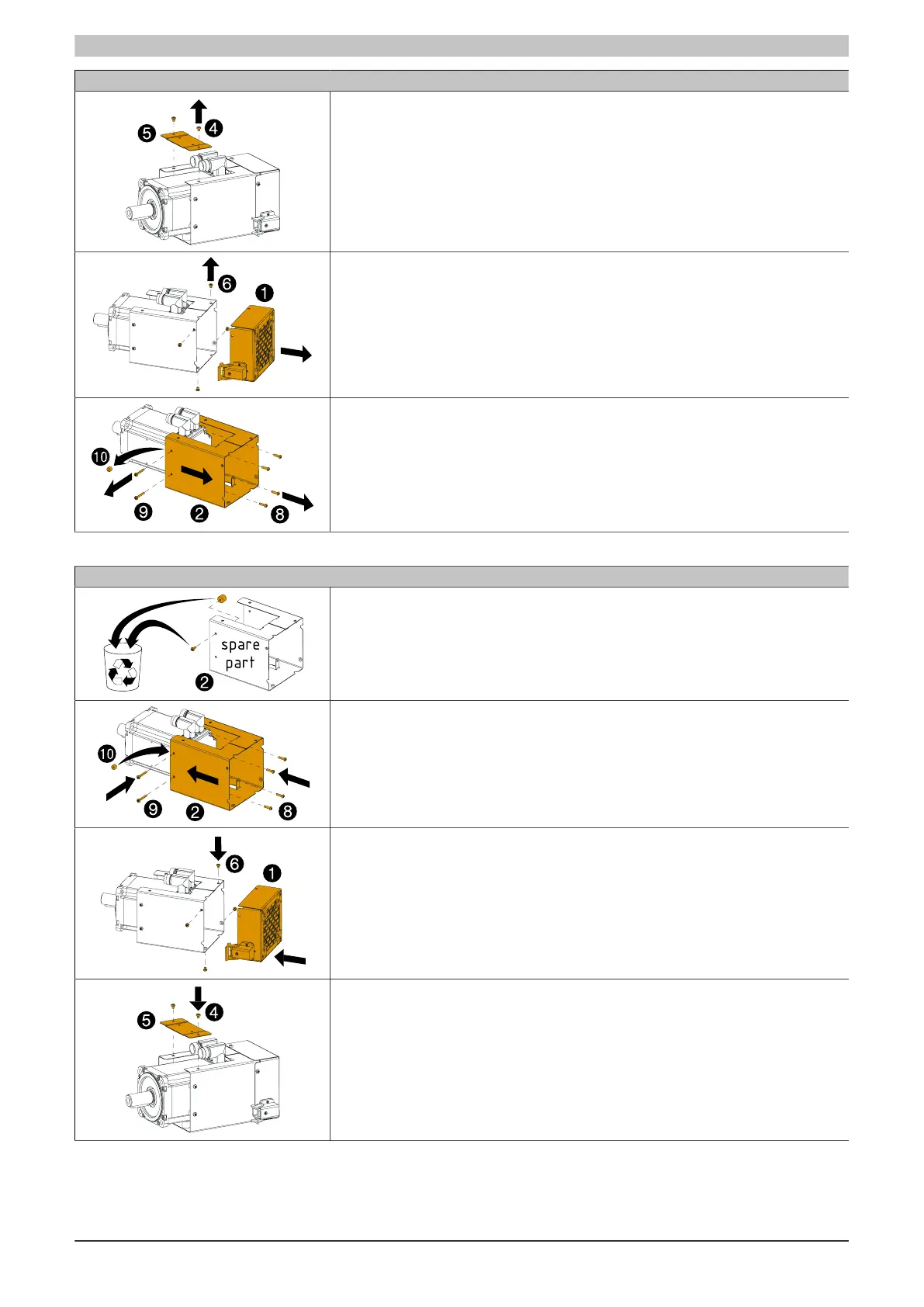

8LSC disassembly
Remove the screws (4) and the stabilization plate (5).
Remove the screws (6) and the cover with fan (1).
Note: Keep the screws (6) in a safe place, they are needed to mount the
new cover with fan (if a complete fan kit is used as a replacement, these
screws are included).
Remove the screws on three sides (8) and (9) and the spacers (10). Remove
the side panel (2) from the motor.
Note: Keep fasteners (8) and (9) and (10) in a safe place because they are
required to secure the new side panel.
8LSC mounting
Remove the screws and rubber buffers from the side panel (2), the replace-
ment part. Dispose of the removed parts properly.
Note: Mounting using these rubber buffers is not intended for 8LSC motors!
Slide the new side panel (2) onto the motor and fasten it with the screws (8).
With the screws (9), also install the spacers (10) on all three sides.
Note: The fasteners (8) and (9) and (10) are reused and are not part of the
replacement part.
Tightening torque for screw (8): Up to 8LSC6, M4x10, 1.8 Nm and screw
locking; 8LSC7 and 8LSC8, M5x16, 3.7 Nm and screw locking
Slide the new cover with fan (1) onto the side panel and fasten it with the
new screws (6).
Note: You can mount the cover with fan (1) rotated in 90° steps as well
as change the direction of the built-in connector. See Connection direction
(page 263).
Note: The screws (6) are reused and are not part of the replacement part
(if a complete fan kit is used as a replacement, these screws are included).
Mount the stabilization plate (5) with the new screws (4).
