Technical data
242 8LS...-3 user's manual V2.50

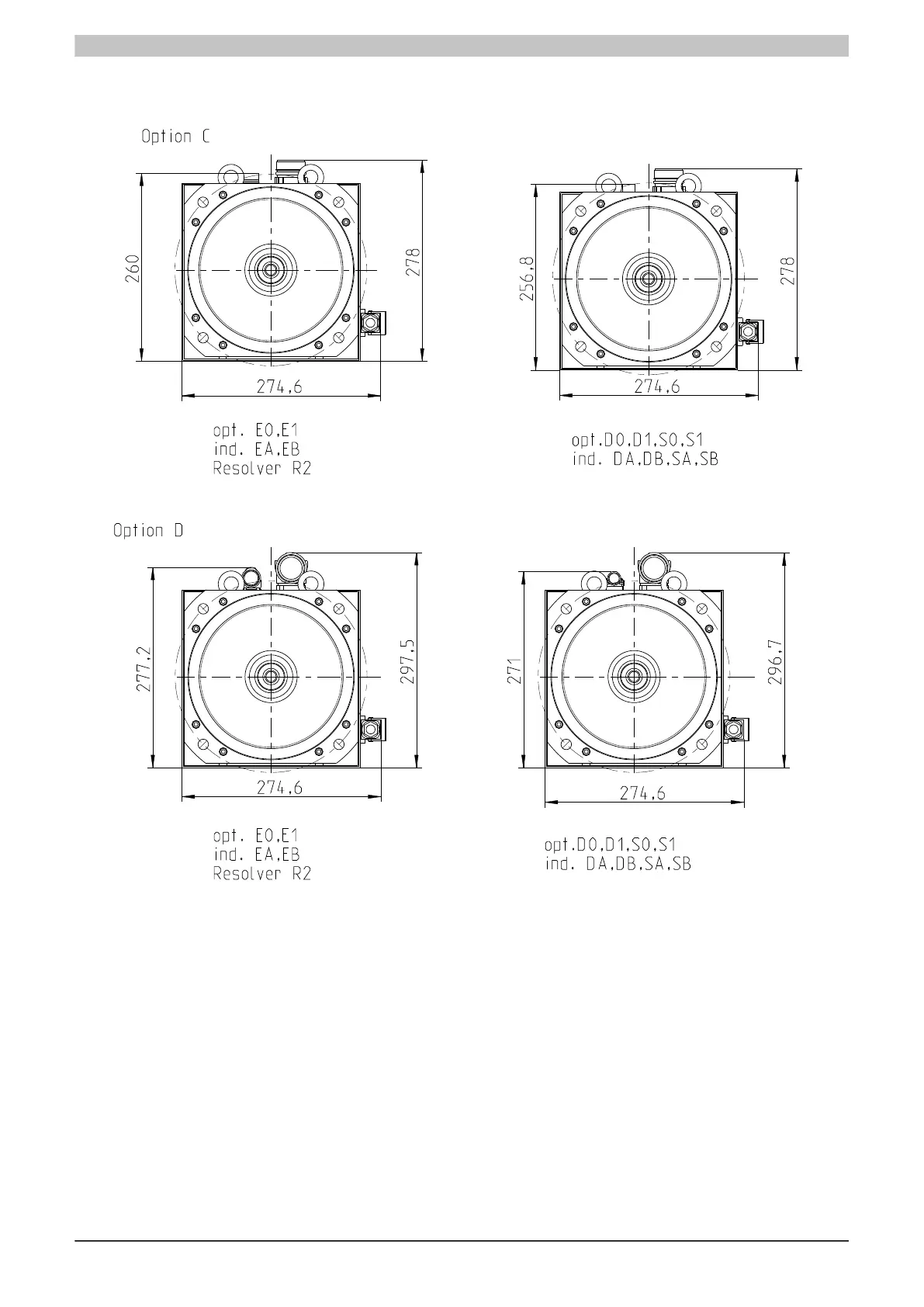

2.15.6.5.1 8LSC8...-3 - Dimensions of connector options
Option C
opt. E0,E1
ind. EA,EB
Resolver R2
opt.D0,D1,S0,S1
ind. DA,DB,SA,SB
Option D
opt. E0,E1
ind. EA,EB
Resolver R2
opt.D0,D1,S0,S1
ind. DA,DB,SA,SB
274,6
278
278
297,5
277,2
274,6
296,7
271
