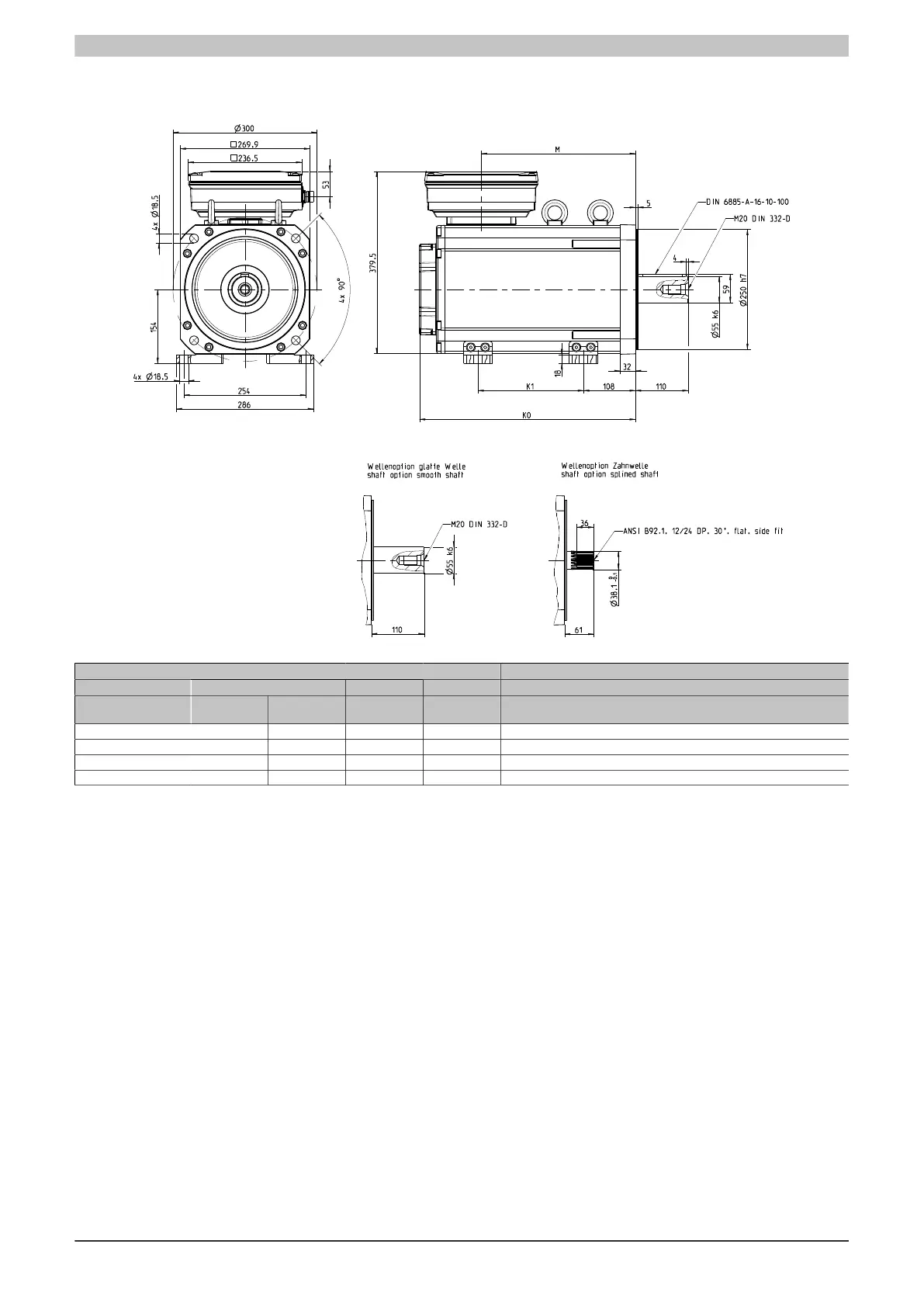

2.16.1.5 8LSO9...-3 - Dimensions
EnDat/Resolver feedback Extension of K
0
and M depending on motor option [mm]
K
0
K
1
M Oil seal
Encoder assign-
ments
R2, DA, DB D0, D1 All encoders All encoders
8LSO93...-3 422 450 220 321 0
8LSO94...-3 482 510 280 381 0
8LSO95...-3 572 600 370 471 0
8LSO96...-3 662 690 460 561 0
IMPORTANT: Dimension K
0
depends on the length of the encoder cover.
