B&R 8LS 3 Series User Manual

Installation and connection
286 8LS...-3 user's manual V2.50

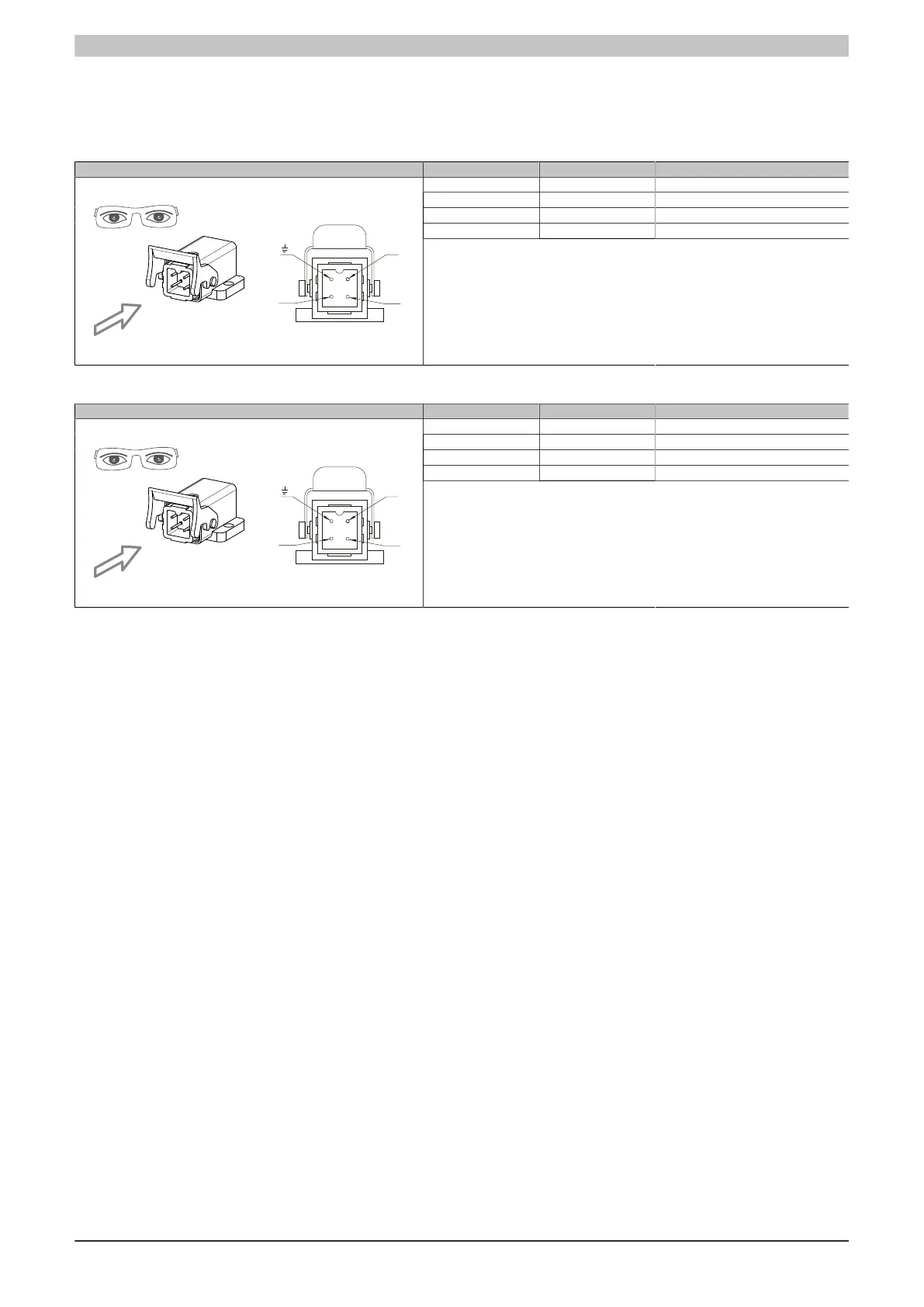

5.5.4.5 Fan connection
5.5.4.5.1 Fan connector pinout
24 V
Pin Description Function
1 Fan connector - Ground
2 -- --
3 Fan connector + 24VDC
4 -- --
Pin 1
Pin 2
Pin 3
230 V
Pin Description Function
1 N 230 VAC
2 L1 230 VAC
3 -- --
Ground symbol PE Grounding
Pin 1
Pin 2
Pin 3
Cable-side connector - Order data
The 4-pole connector is available in plastic and aluminum variants.
Plastic housing
•
Model number: 8XMFLC.01-1
•
4x 0.75-1.5 mm²
•
Union nut tightening torque: 3 Nm
•
Ambient temperature (operation) -25°C to 80°C
Die-cast aluminum housing
•
Model number: 8XMFLC.02-1
•
Push-in connection
•
4x 0.14-1.5 mm²
•
Union nut tightening torque: 5.5 Nm
•
Ambient temperature (operation) -40°C to 125°C
