Technical data

8LS...-3 user's manual V2.50 67

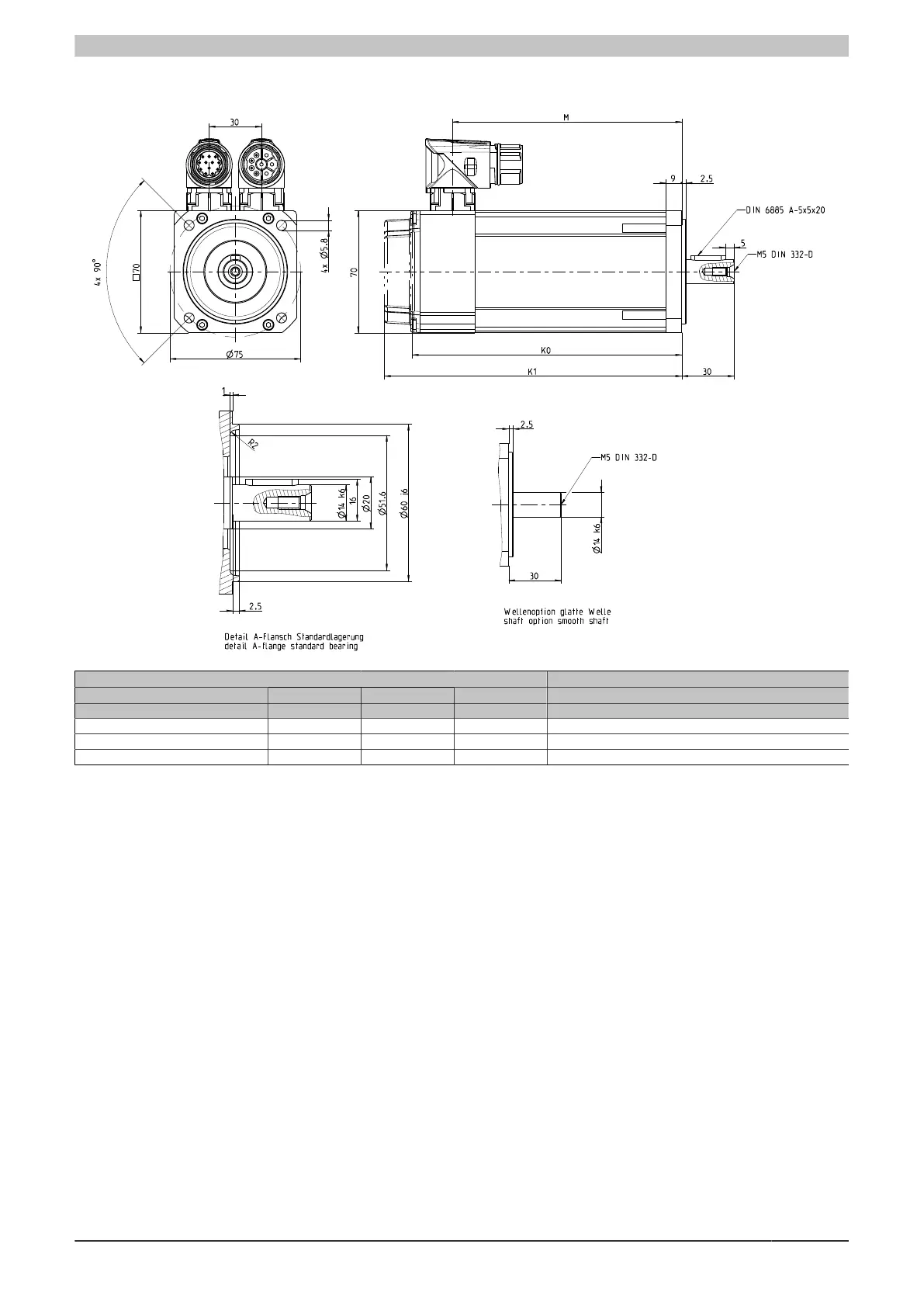

2.14.2.5 8LSAA...-3 - Dimensions

EnDat/Resolver feedback Extension of K

and M depending on motor option [mm]

M Holding brake

Encoder assignments R0, D8, D9 E4, E5, D4, D5

8LSAA2...-3 135 150.5 111.5 31

8LSAA3...-3 155 170.5 131.5 31

8LSAA4...-3 180 195.5 156.5 31

IMPORTANT: Dimensions K

and K

depend on the length of the encoder cover.
