Technical data • Individual components
Panel PC 700 with 945GME N270 CPU board User's Manual V 1.16
3.6.1 PCI SATA RAID 2 x 160 GB 24x7 ET - 5ACPCI.RAIC-03
The hard disks being used are specified for 24-hour operation (24x7) and also provides an
extended temperature specification (ET).
Features
• SATA RAID controller
• RAID Level 0 (striped) and 1 (mirrored)
• 2 SATA hard disk drives (suitable for 24 hour operation)
• Only requires 1 PCI slot
• Transfer rates up to 150 MB/s

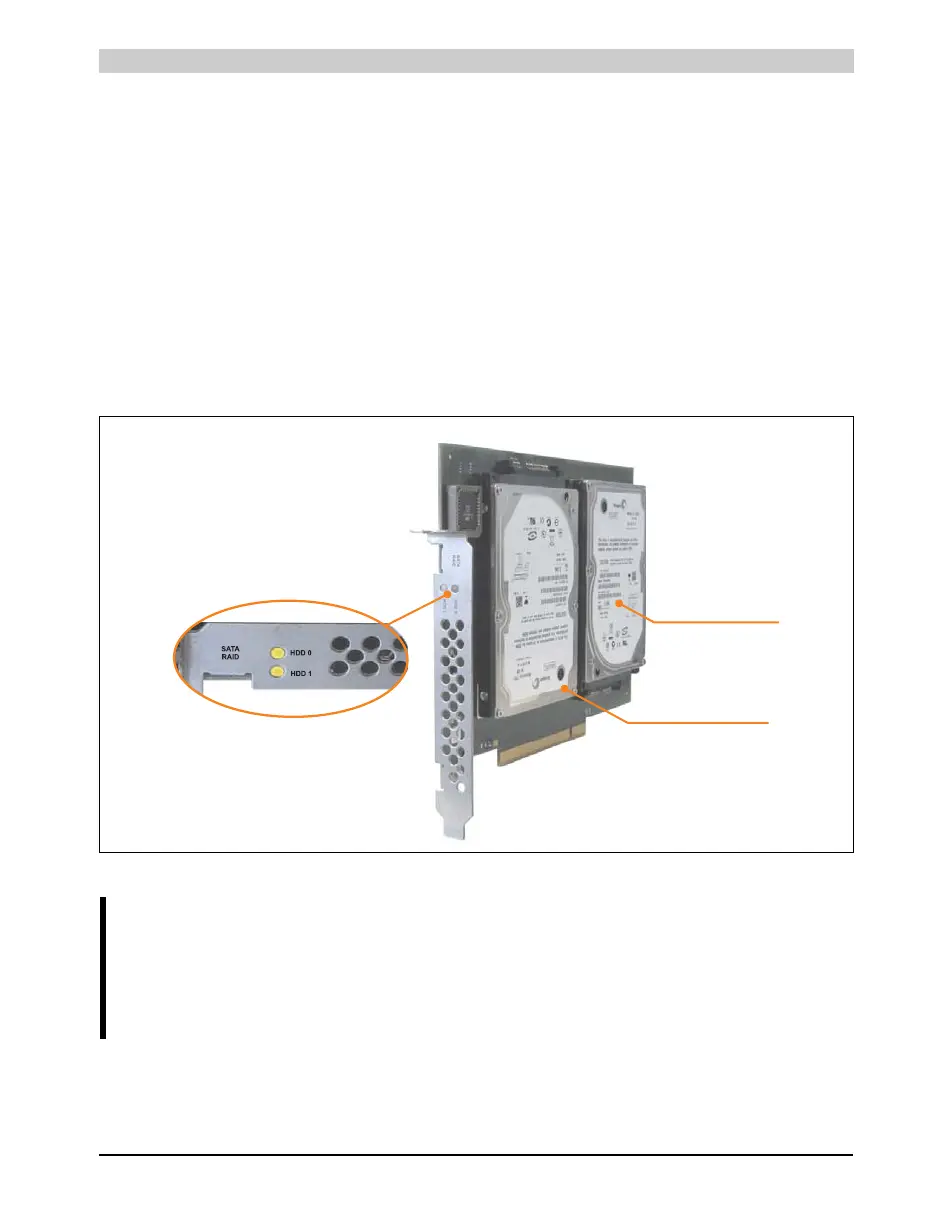

Figure 104: PCI SATA RAID controller - 5ACPCI.RAIC-03
Information:
The PCI SATA RAID controller can not be used in place of a Universal Power Supply
(UPS). If the operating system is shut down improperly, the next time it is started it
is detected as an error by the RAID 1, and a complete rebuild is executed. This
generally takes at least 50 minutes (configurable) to complete.
Primary hard disk
Secondary hard disk (HDD 1)
Access LED (yellow) for primary
and secondary hard disks
