Technical data • Introduction
Panel PC 700 with 945GME N270 CPU board User's Manual V 1.16
1.2.1 Selection guide - Basic system
Explanation:
1) Select a system unit.
2) Select CPU board (select 1).
3) Select the main memory (select 1).
4) Select a heat sink (select 1).
5) Select optional components, based on selected system unit (see section 1.2.2 "Selection
guide - Optional components", on page 41).

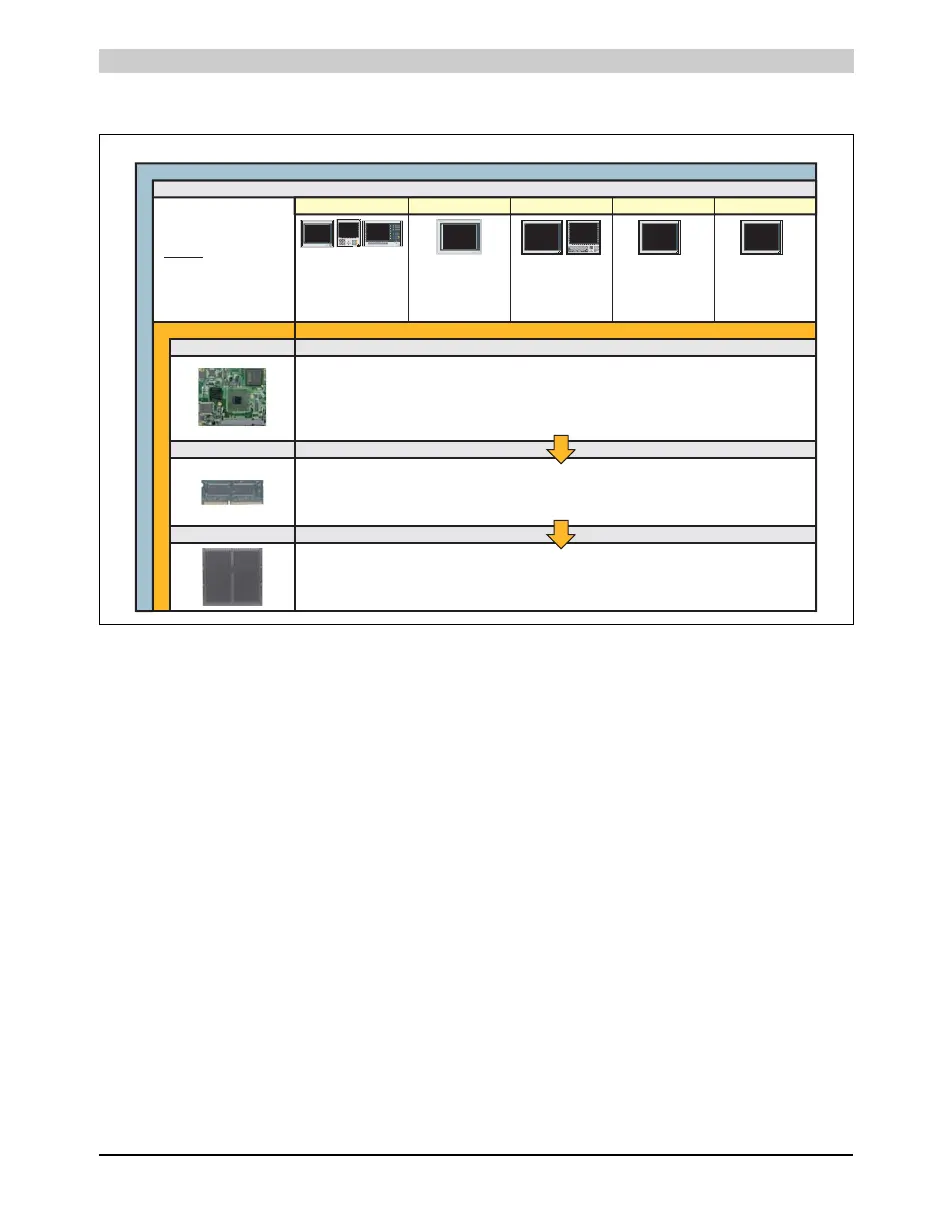

Figure 2: Configuration - Basic system
Select 1
CPU board - main memory - heat sink: Select one of each component
(0 / 0)
(2 / 1)
(0 / 0)
(0 / 0)
5PC720.1043-00
5PC720.1043-01
5PC781.1043-00
5PC782.1043-00
5PC720.1214-00 (0 / 0)
5PC720.1214-01 (2 / 1)
5PC720.1505-00
5PC720.1505-01
5PC720.1505-02
5PC781.1505-00
(0 / 0)
(2 / 1)
(1 / 1)
(0 / 0)
10.4" Panel PC 12.1" Panel PC
15" Panel PC
A system unit consists of
a housing, base board, and
display
PCI slots (0, 1 or 2)
Slide-in slot (0 or 1)
Variants:
Example: 2 / 1
= 2 PCI, 1 slide-in slot
Basic system configuration
System unit
Main memory
Heat sink
17" Panel PC 19" Panel PC
5PC720.1706-00 (0 / 0) 5PC720.1906-00 (0 / 0)
CPU board
5PC600.X945-00
5MMDDR.0512-01 - 512 MB
5MMDDR.1024-01 - 1 GB
5MMDDR.2048-01 - 2 GB
5AC700.HS01-03
