12.3.1 Temperature humidity diagram
Support 5CFCRD.
0064-03
5CFCRD.
0128-03
5CFCRD.
0256-03
5CFCRD.
0512-03
5CFCRD.
1024-03
5CFCRD.
2048-03
5CFCRD.
4096-03
5CFCRD.
8192-03
PVI Transfer Tool V2.57 (part of PVI Development Setup V2.5.3.3005)
B&R Embedded OS Installer V2.21
Mechanical characteristics
Dimensions
Length
Width
Thickness
36.4 ±0.15 mm
42.8 ±0.10 mm
3.3 ±0.10 mm
Weight 11.4 g
Environmental characteristics
Ambient temperature
Operation
Storage
Transport
0 to +70°C
-50 to +100°C
-50 to +100°C
Relative humidity
Operation/Storage/Transport 8 to 95%, non-condensing
Vibration
Operation
Storage/Transport
Max. 16.3 g (159 m/s
2
0-peak)
Max. 30 g (294 m/s
2
0-peak)
Shock
Operation
Storage/Transport
Max. 1000 g (9810 m/s
2
0-peak)
Max. 3000 g (29430 m/s
2
0-peak)
Altitude Maximum 80,000 feet (24,383 meters)

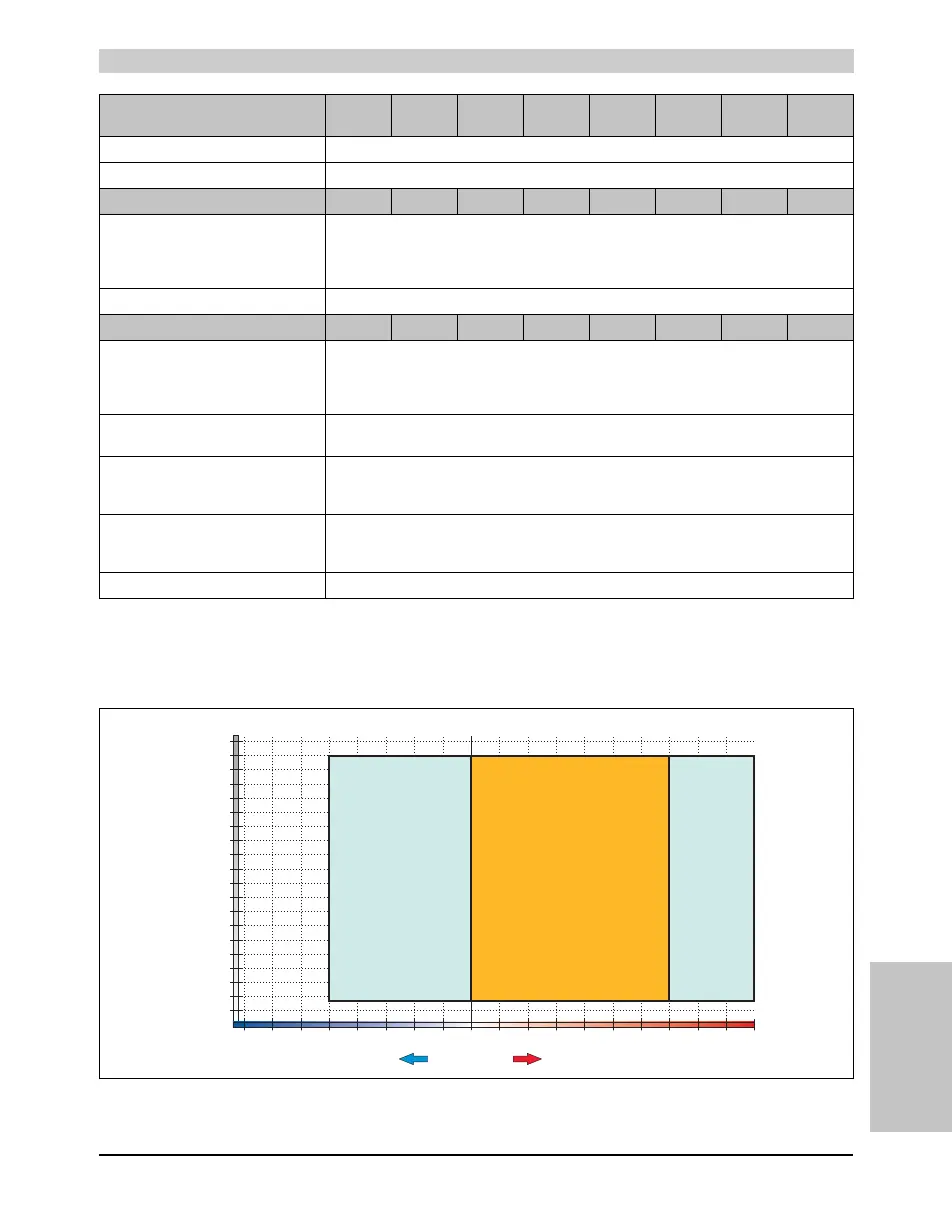

Figure 204: Temperature humidity diagram - CompactFlash cards 5CFCRD.xxxx-03
Table 222: Technical data - CompactFlash cards 5CFCRD.xxxx-03 (Forts.)
0
0102030405060708090-80 -70 -60 -50 -40 -30 -20 -10
5
10
100
95
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
Temperature [°C]
+
-
Relative humidity [%RH] (non-condensing)
100
Operation
Storage
Transport
