17. Legend strip templates
Panel PC 700 devices with keys are delivered with partially pre-labeled key legend strips (F1,
F2, etc.). The key legend strip slots are accessible on the back of the Panel PC 700 device
(above and below).
Printable legend strips (A4 format) can be ordered from B&R (see table 18 "Model numbers -
Other items", on page 33). They can be printed using a standard laser printer (b/w or color) in a
temperature range from -40°C to +125°C. A print template (available for Corel Draw version 7,
9 and 10) for the respective legend strip template can be downloaded from the B&R homepage
(www.br-automation.com
). The print templates can also be found on the HMI Drivers & Utilities
DVD (model number 5SWHMI.0000-00).

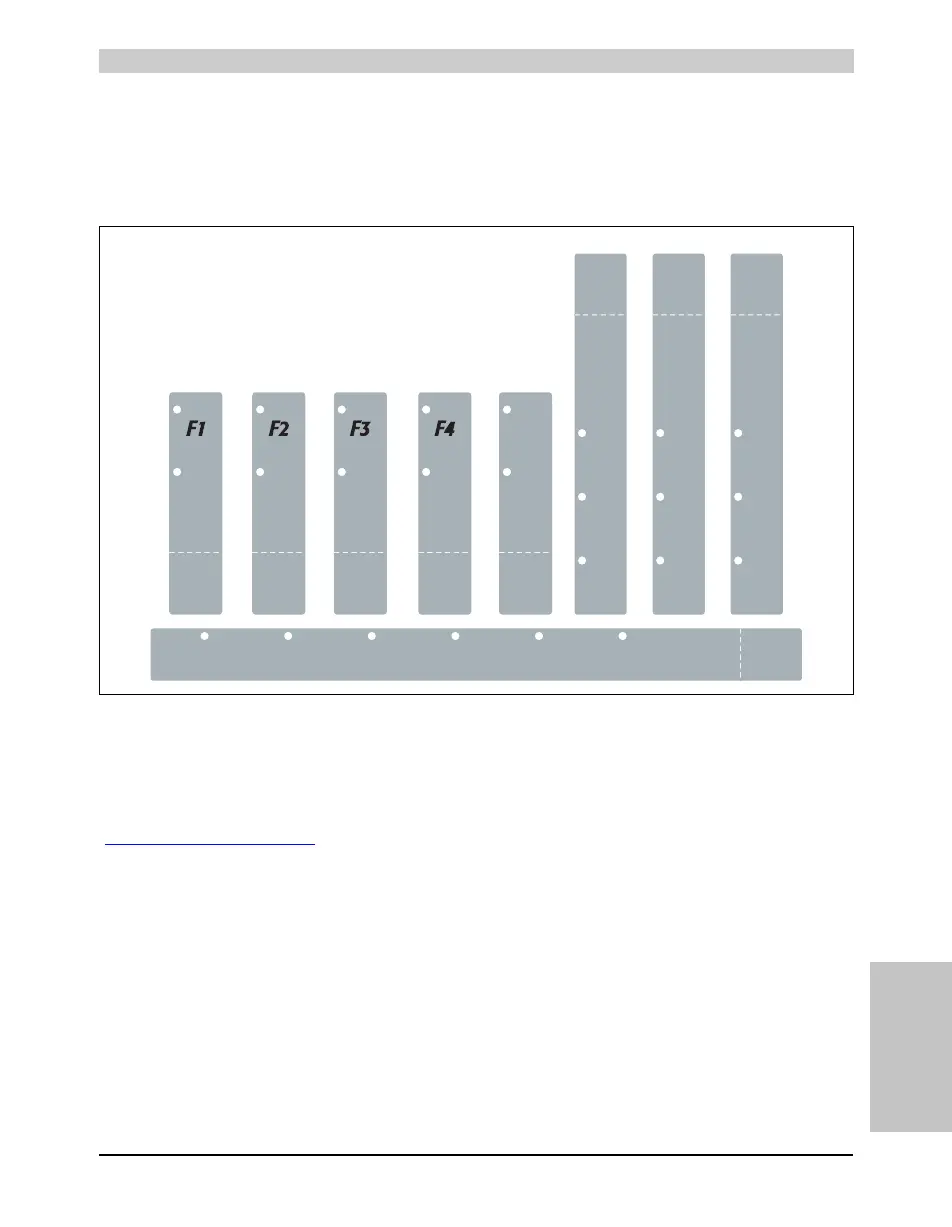

Figure 245: Legend strip templates
