Accessories • USB Media Drive - 5MD900.USB2-01
Chapter 6
Accessories
403Panel PC 700 with 945GME N270 CPU board User's Manual V 1.16
13.4 Dimensions with front cover
13.5 Cutout installation

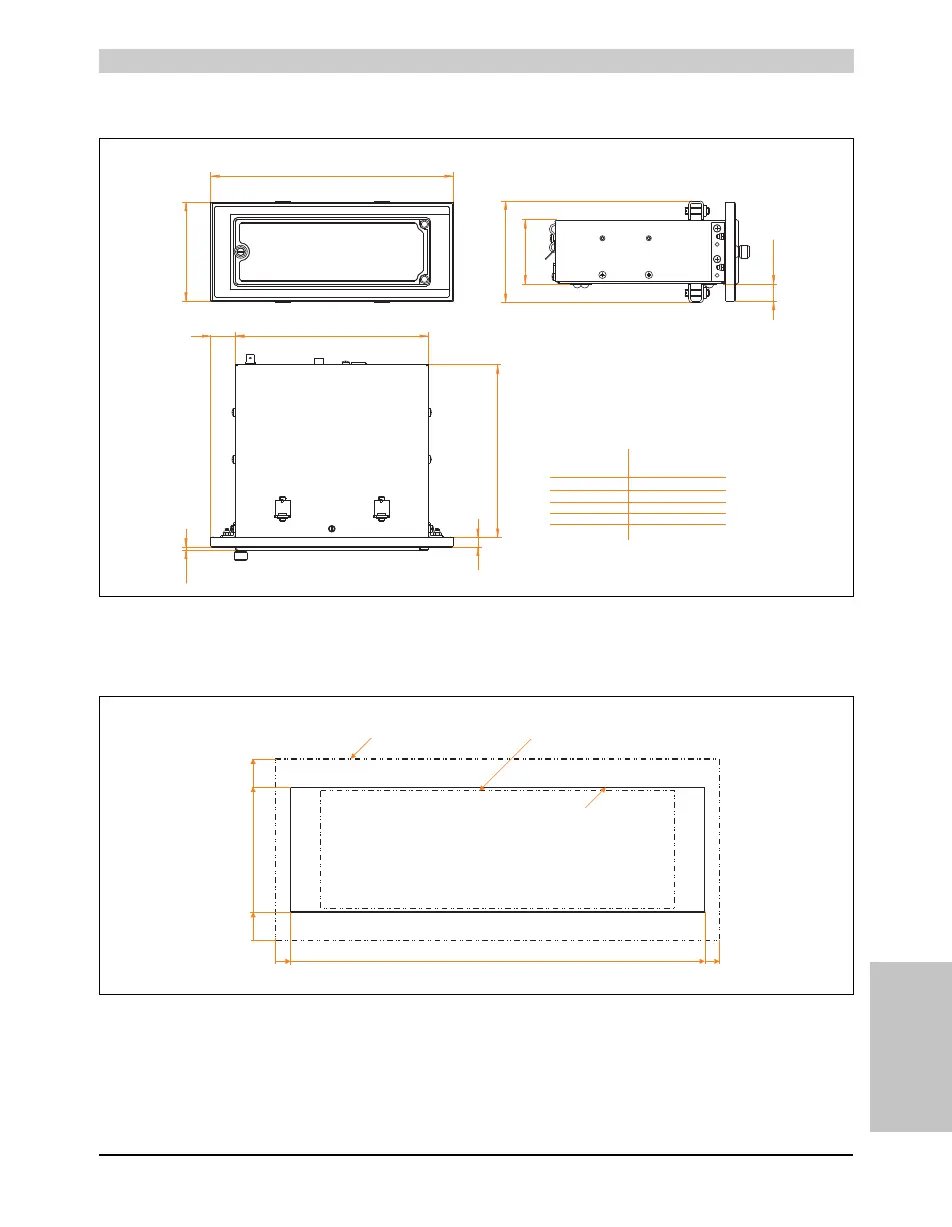

Figure 208: Dimensions - USB Media Drive with front cover
Figure 209: Installation cutout - USB Media Drive with front cover
General tolerance acc. to
Nominal size range DIN ISO 2768 medium
To 6 m m
Over 6 to 30 mm
Over 30 to 120 mm
Over 120 to 400
Over 400 to 1000
± 0.1 mm
± 0.2 mm
± 0.3 mm
± 0.5 mm
± 0.8 mm
196
80
2.3
8
156
140
52
20
14
82.5
Cutout
Outline contour (Front cover) Outline contour (Media Device)
Cutout dimensions 183 ±0.5 mm x 55 ±0.5 mm
0
0
6.5
196
189.5
80
12.5
67.5
To Next Page
