26 Power Panel User's Manual
Power Panel • Power Panel Expansion EX101 Module
The following B&R SYSTEM 2005 interface module inserts can be operated with the EX101
module:
7.3 Photo
Model Number Short Description
3IF613.9 Three RS232 interfaces
3IF621.9 One RS485/RS422 interface and one CAN interface
3IF622.9 One RS232 interface and two RS485/RS422 interfaces
3IF661.9 One RS485 interface (PROFIBUS-DP Slave)
3IF671.9 One RS232 interface, one RS485/RS422 interface and one CAN interface
3IF672.9 One RS232 interface and two CAN interfaces
3IF681.95 One RS232 interface and one ETHERNET interface with 10 BASE2 connection
(CHEAPERNET BNC socket)
3IF681.96 One RS232 interface and one ETHERNET interface with 10 BASE-T connection (Twisted
Pair / RJ45 socket)
Table 8: Interface modules that can be operated in the EX101
The IF621 interface module insert shown in the picture is not included in the delivery

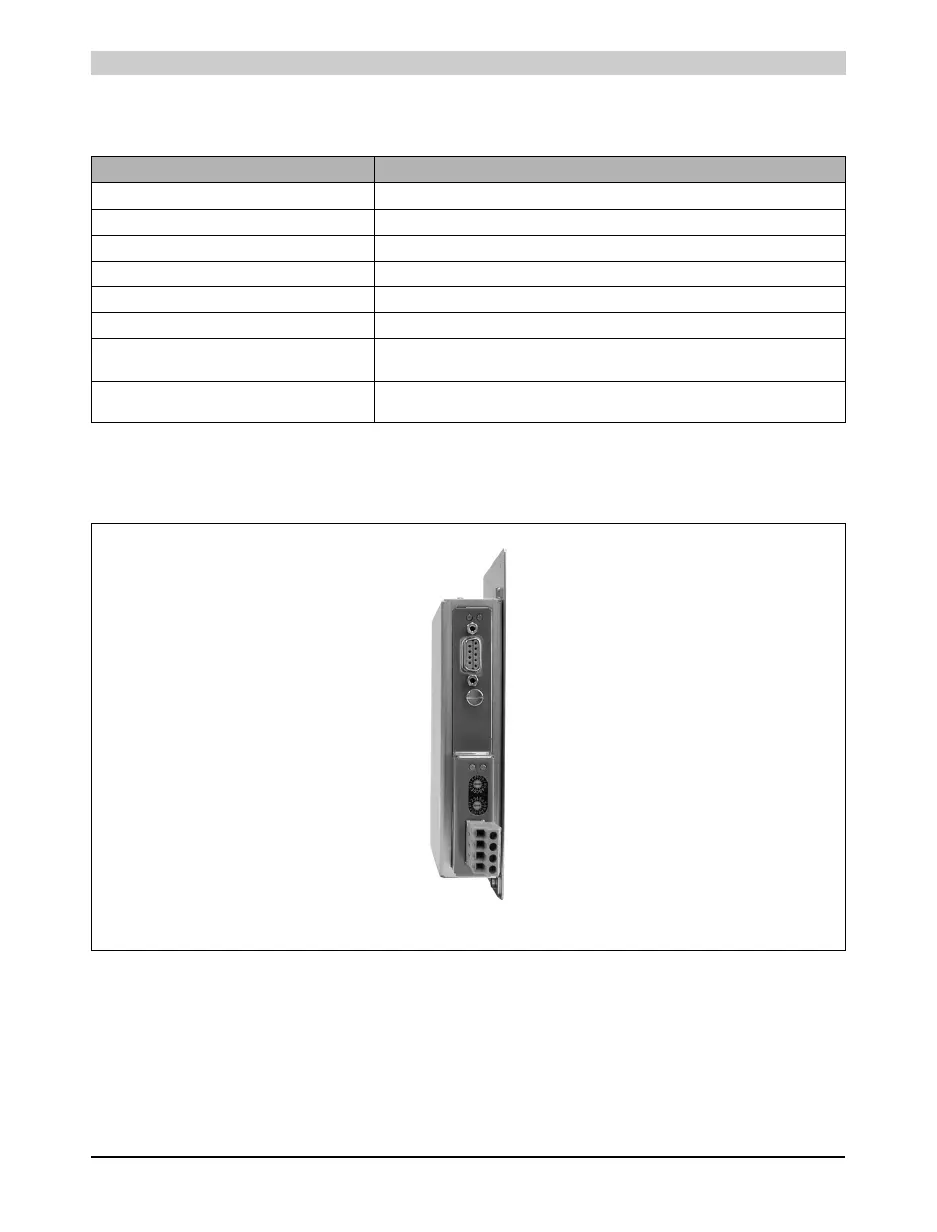

Figure 8: EX101
