Power Panel User's Manual 41
Chapter 1
Power Panel
Power Panel • Description of Components
12.10.3 Connection Example
12.11 Digital Outputs
12.11.1 Terminal Block Connections

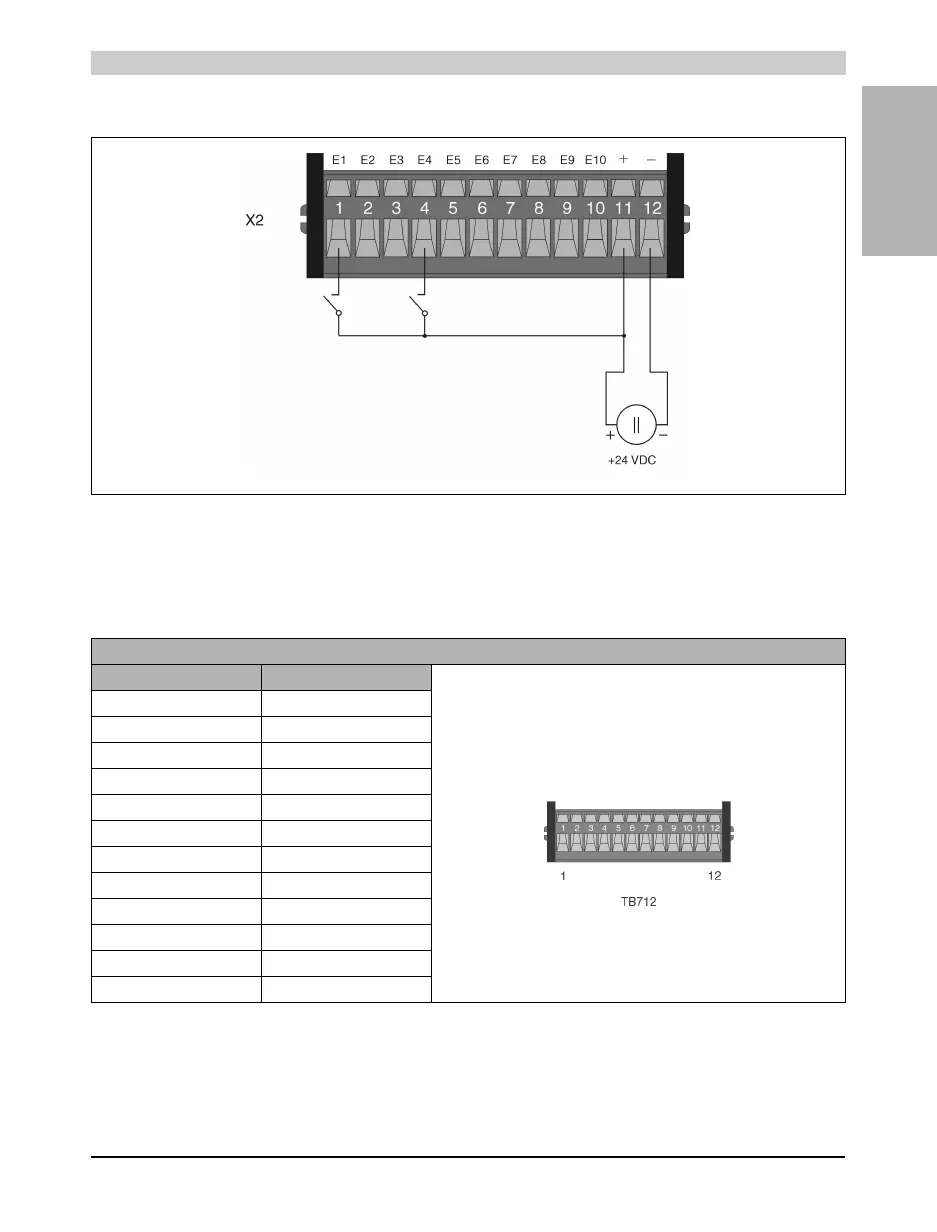

Figure 19: Digital inputs connection example
Digital Outputs Pin Assignment
Connection Description
X3
1 Output 1
2 Output 2
3 Output 3
4 Output 4
5 Output 5
6 Output 6
7 Output 7
8 Output 8
9 Potential-Free Relay Contact
10 Potential-Free Relay Contact
11 +24 VDC, outputs 1 - 8
12 GND, outputs 1 - 8
Table 22: Digital outputs pin assignment
