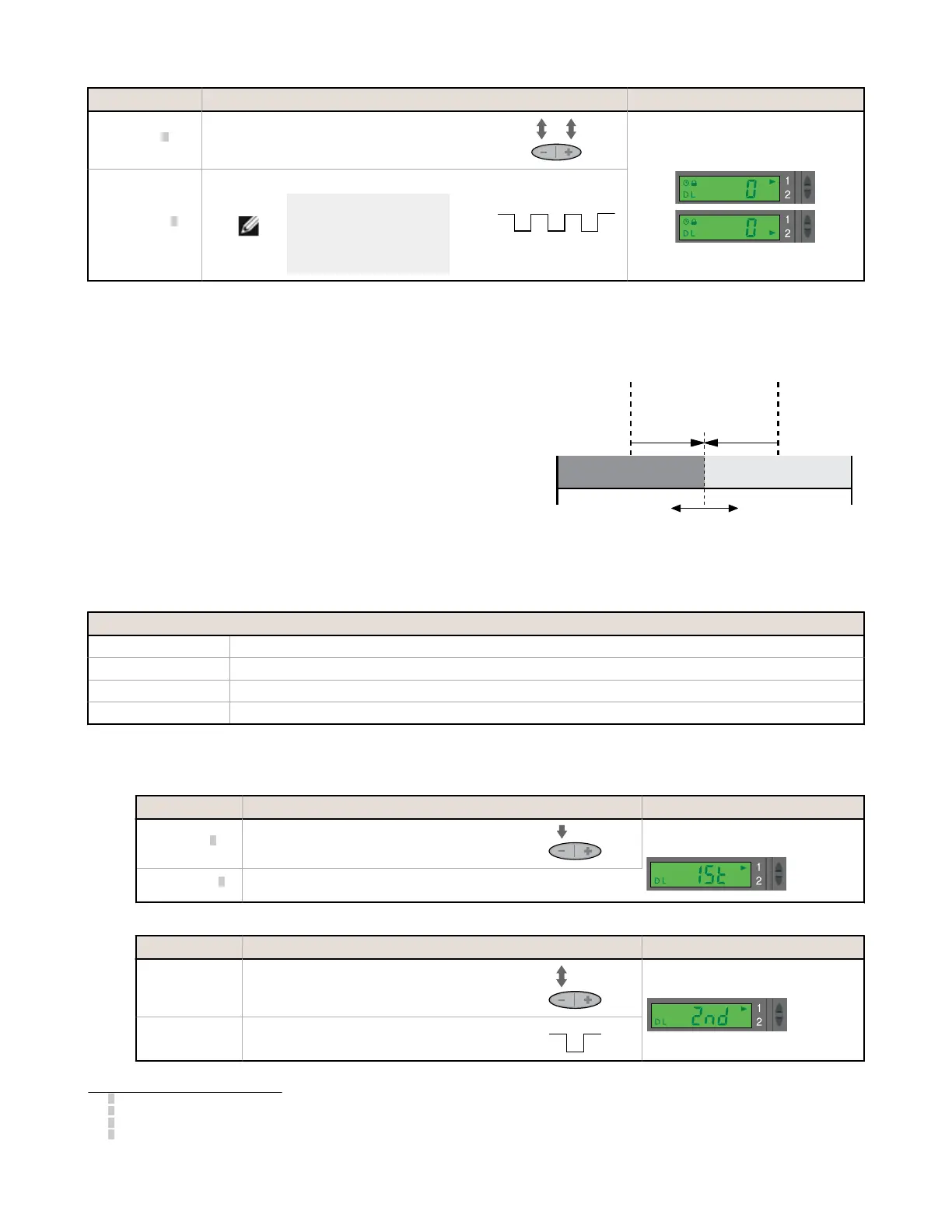

Banner D10 Series User Manual

Method Action Result
Push Button
6
Single-click both buttons simultaneously.
Pointer icon: moves to the other channel
indicator.
Remote Input
7
Triple-pulse the remote line.
NOTE: Triple-pulse will
change the display, but will
not save. To save Channel
Select, make an adjustment
to that channel as a TEACH,
SET, or Sensor Setup.
T T
T
T
T
Two-Point Static TEACH (Threshold)
• Establishes a single switching threshold
• Threshold position is adjustable using “+” and “-” buttons (see
Manual Adjust on page 10)
Static TEACH is the traditional setup method, used when two
conditions can be presented by the user. The sensor locates a single
sensing threshold (the switchpoint) midway between the two taught
conditions, with the Output ON condition on one side, and the Output
OFF condition on the other.
The first condition taught is the ON condition. The Output ON and OFF
conditions can be reversed by changing Light/Dark Operate status in
Setup mode (see Sensor Setup on page 10 ).
Static TEACH and Manual Adjust
Using Manual Adjust with Static TEACH moves the switching threshold.
Sensor positions
threshold midway
between taught conditions
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
2nd Taught
Condition
1st Taught
Condition
Position
adjusted by
Manual Adjust
Figure 2. Static TEACH (Light Operate shown)
Contrast Values
500+ Excellent: Very stable operation.
100-500 Good: Minor sensing variables will not affect sensing reliability.
32-99 Low: Minor sensing variables may affect sensing reliability.
0-31 Marginal: Consider an alternate sensing scheme.
Figure 3. Contrast Values
1. Access the Static TEACH Mode.
Method
Action Result
Push Button
8
Press and hold the Static (-) button > 2 seconds.
• Display flashes “1St”
• Arrow icon turns red
Remote Input
9
No action is required; the sensor is automatically ready for the 1st TEACH
condition.
2. TEACH the Output ON condition.
Method
Action Result
Push Button
a. Present the Output ON condition.
b. Click the Static button.
Display flashes “2nd”
Remote Input
a. Present the Output ON condition.
b. Single-pulse the remote line.
T
6
0.04 seconds ≤ "Click" ≤ 0.8 seconds
7
0.04 sec. ≤ T ≤ 0.8 seconds
8
0.04 seconds ≤ "Click" ≤ 0.8 seconds
9
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
– Dual Discrete Outputs
4 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 64154 Rev. G
