Banner D10 Series User Manual

Installation

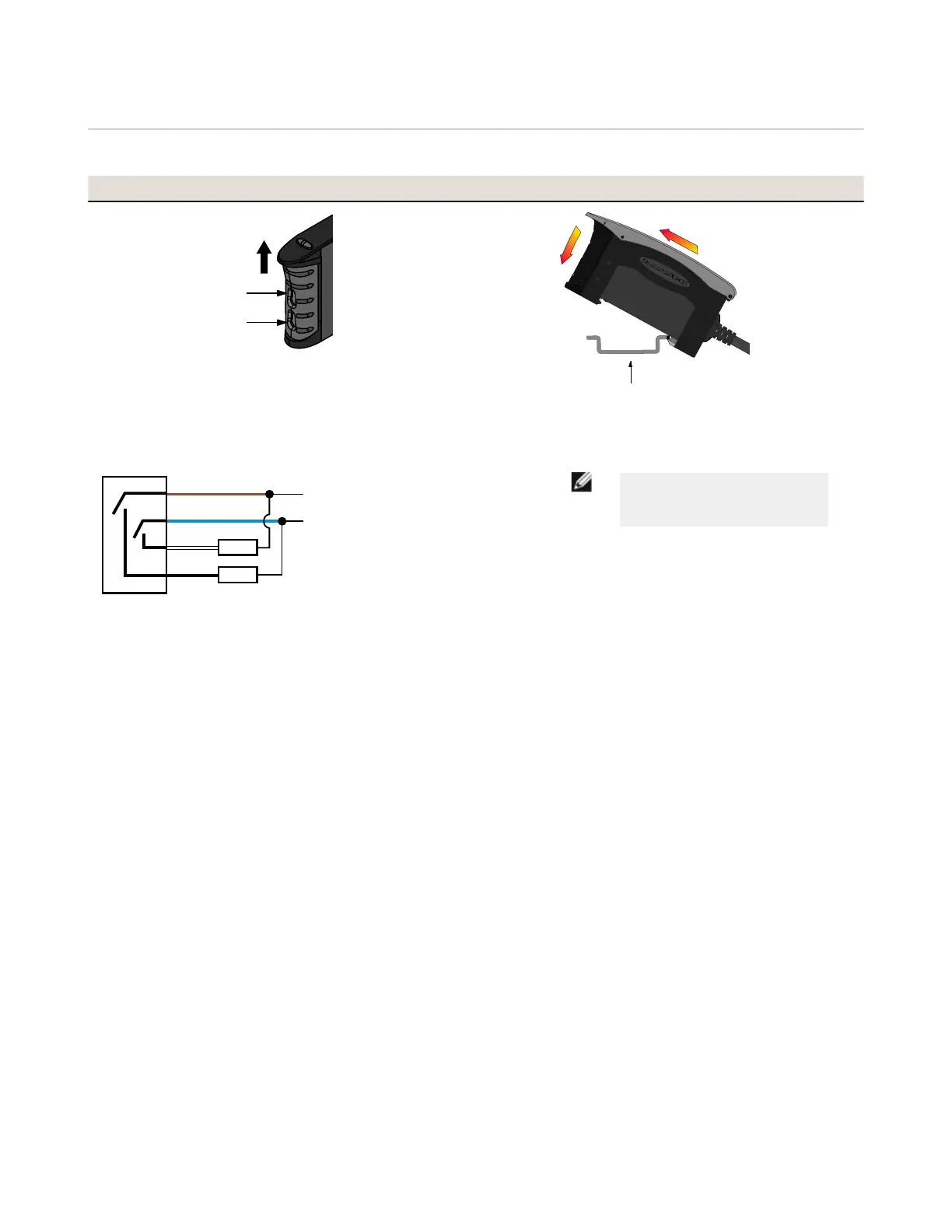

Installing Fibers and Housing
Installing Fibers Mounting the D10 on a DIN Rail or the Mounting Bracket
Plastic fiber
emitter port
Plastic fiber
receiver port
Slides up to
release fibers
DIN Rail (or included mounting bracket)
Wiring Diagram
10-30V dc
100 mA maximum load
–
+
1
3
2
4
Load
Load
Key
1 = Brown
2 = White
3 = Blue
4 = Black
NOTE: Quick disconnect (QD)
wiring diagrams are
functionally identical.
D10—Discrete Output
