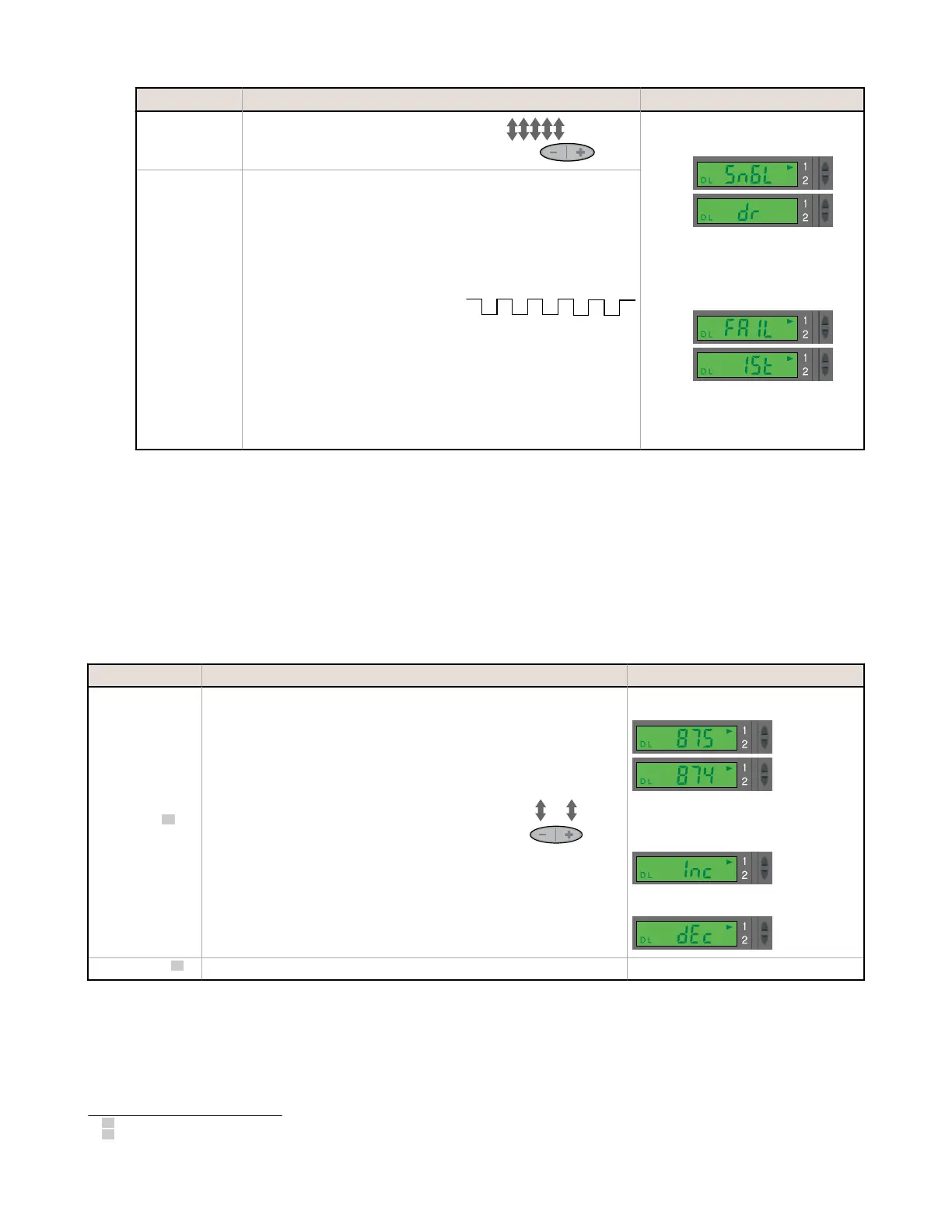

Method Action Result
Push Button
a. Present the Output OFF condition.
b. Five-click the Static button.
Threshold condition accepted
• Display flashes “Sn6l,” then
"dr" twice
• Sensor returns to RUN mode
with new settings
• Arrow icon turns green
Threshold condition not accepted
• Display flashes “FAIL” and
returns to “1St”
• Arrow icon remains red
• After 60 seconds, the sensor
returns to RUN mode (the Arrow
icon turns green) without
changing settings
Remote Input
a. Present the Output OFF condition.
b. Five-pulse the remote line.
T T
T
T
T
T
T
T
T
Manual Adjust
Manual Adjust is used during Run mode and is accomplished using the push buttons only. Its behavior depends on whether
a switching threshold or a sensing window is used.
Switching Threshold:
• Fine-tunes sensing sensitivity
• Press “+” to increase; press “-” to decrease
Sensing Window:
• Adjusts sensing window size (tolerance) for the single-point target condition
• Press “+” to increase; press “-” to decrease
Method
Action Result
Push Button
16
Click "+" to increase, or click "-" to decrease.
or
Display briefly flashes the threshold setpoint
value as it is being changed
OR
Display flashes"inc" or "dEc" as the window
size is adjusted
or
Remote Input
17
Not available with remote programming. n/a
Sensor Setup
• Configures sensor display and operating parameters
• Changes are updated instantly
• Click Dynamic (+) or double-pulse remote line to select an option
• Click Static (-) or single-pulse remote line to advance
16
0.04 seconds ≤ "Click" ≤ 0.8 seconds
17
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
– Dual Discrete Outputs
