Banner D10 Series User Manual

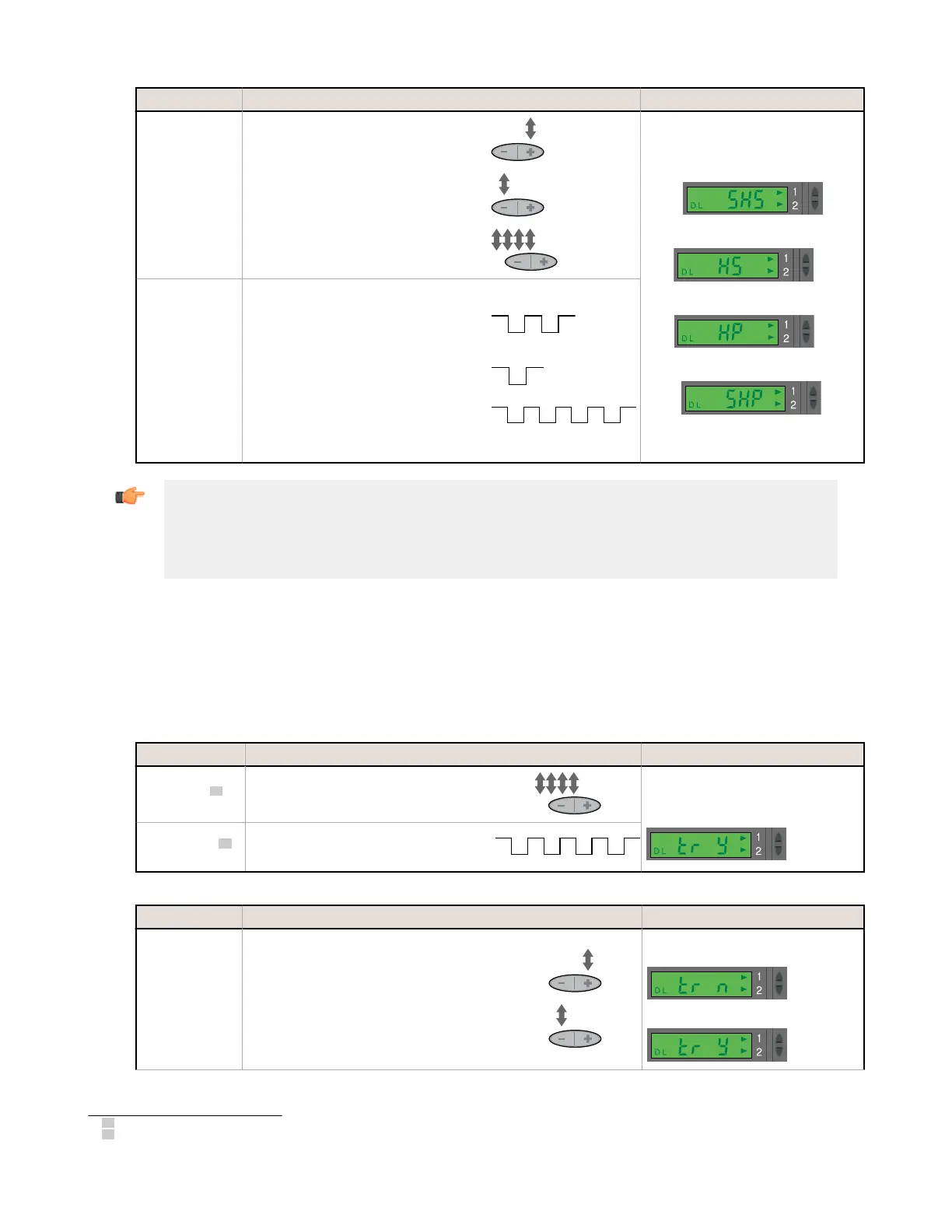

Method Action Result
Push Button
a. Click Dynamic (+) to toggle between
selections.
b. Click Static (-) to save selection and return
to RUN mode.
OR
c. Press Static (-) four times to proceed to
Advanced Setup.
Indicator Arrow Icons 1 and 2 ON Red
Super-high-speed (50-μs response)
"SHS" (Complementary outputs; see note
below)
High-speed (200-μs response)
"HS"
High-power (1-ms response)
"HP"
Super-high-power (2.5-ms response)
"SHP"
OR
See Advanced Setup on page 12.
Remote Input
a. Double pulse the remote line to toggle
between selections.
b. Single-pulse the remote line to save
selection and return to RUN mode.
OR
c. Four-pulse the remote line to proceed to
Advanced Setup.
T T
T
T
T T
T T T
T T
Super-High-Speed Operation Note: Under most conditions, the sensor’s two discrete outputs
operate independently. However, the outputs become complementary when operating at Super-High-
Speed, due to its extremely fast response time. Only channel 1 is taught/adjusted; channel 2 is
complementary to it (output 1 conducts for the taught ON condition, and output 2 conducts for the OFF
state). To invert these conditions (output 1 – OFF condition, output 2 – ON), change light/dark operate
setting.
Advanced Setup
• Advanced adjustments to previously configured sensor display and operating parameters
• Quad-click Static (-) or quad-pulse remote line before exiting “Power and Speed” settings to enter this mode
• Click Dynamic (+) or double-pulse remote line to select an option
• Click Static or single-pulse remote line to advance
• Changes are updated instantly
1. Enter SETUP Mode.
Method
Action Result
Push Button
20
From the Power and Speed mode, quad-click
the Static (-) button.
• Indicator Arrow Icons 1 and 2
remain red
• Display shows "Tracking
Enabled" option
Remote Input
21
From the Power and Speed mode, quad-pulse
the remote line.
T T
T T T
T T
2. Set tracking, if desired.
Method
Action Result
Push Button
a. Click Dynamic (+) to toggle between selections.
b. Click Static (-) to save selection and advance to
"Factory Default."
Sets output 2 identical to output 1
Tracking Disabled: Display shows "tr n"
Tracking Enabled: Display shows "tr Y"
20
0.04 seconds ≤ "Click" ≤ 0.8 seconds
21
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
– Dual Discrete Outputs
