Overview
The D10 Expert Sensor is a high-performance plastic fiber-optic sensor whose
many configuration (TEACH-mode) options make it suitable for demanding
applications. Even with all its features, it is extremely easy to use. Advanced
16-bit microcontroller technology makes this possible.
The D10 Expert provides high-performance sensing in low-contrast
applications. Expert TEACH and setup options provide static, dynamic and
single-point programming plus manual fine adjustment, remote programming
and push button lockout. Its slender, stylized housing has a large digital display
visible beneath a clear cover for easy programming and status monitoring
during operation. The sensor mounts directly to standard 35 mm DIN rail or
using the supplied mounting bracket.
The sensor features two outputs with independent setpoints: either NPN or
PNP, depending on model. Built-in crosstalk avoidance protocol provides
trouble-free operation for multiple sensors in one area.
For emitter and receiver port locations, see Installation on page 3.
dynamic
static
Output
Indicators
Output Select
Indicators
4-Digit
Display
Light/Dark
Operate, Clock
and Lock Icons
Programming
Push Buttons

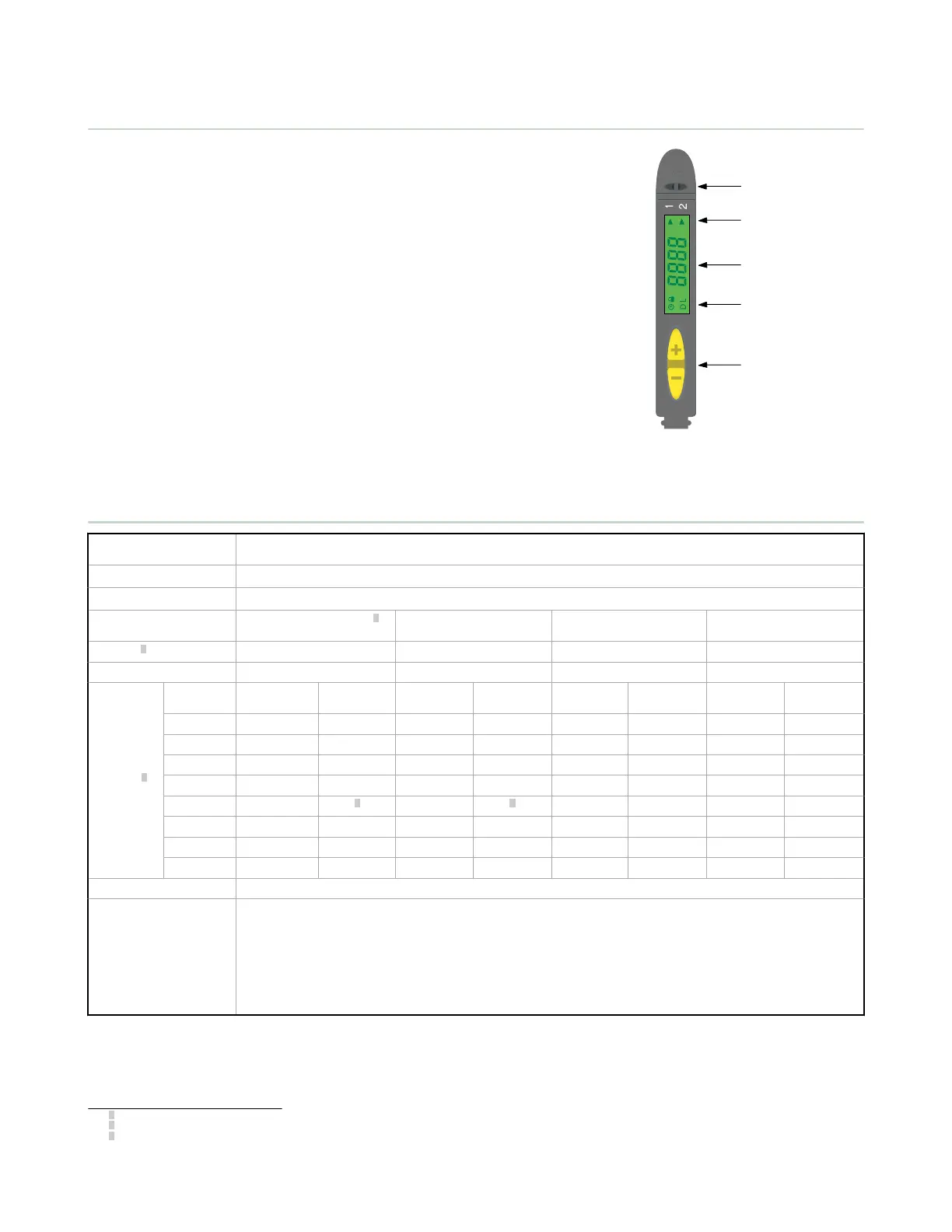

Figure 1. D10 Features
Programming Options
Light/Dark Operate
Selection
Toggle to select the condition for which each output will conduct: when the target is present or when the target is absent.
OFF-Delay Timing Selection
Programmable OFF-delay pulse stretcher: 0, 2, 5, 10, 15, 20, 30, 40, 60, 80, or 100 ms
Display Selection
Discrete Output: Raw signal value or % excess signal
Power Level/Speed
Selection
Super High-Speed (SHS)
3
High-Speed (HS) High-Power (HP) Super High-Power (SHP)
Response
4
50 μs 200 μs 1 ms 2.5 ms
Repeatability 25 μs 50 μs 75 μs 100 μs
Max Range
4
Fiber Red 680 nm Green 525
nm
Red 680 nm Green 525
nm
Red 680 nm Green 525
nm
Red 680 nm Green 525
nm
PIT16U 20 mm 9 mm 30 mm 9 mm 55 mm 13 mm 90 mm 16 mm
PIT26U 100 mm 40 mm 150 mm 40 mm 250 mm 55 mm 400 mm 70 mm
PIT46U 300 mm 100 mm 550 mm 100 mm 1000 mm 160 mm 1200 mm 180 mm
PIT66U 600 mm 180 mm 1000 mm 180 mm 1700 mm 280 mm 2400 mm 320 mm
PBT16U 6 mm
5
10 mm
5
18 mm 3 mm 30 mm 3.5 mm
PBT26U 30 mm 12 mm 50 mm 12 mm 100 mm 20 mm 150 mm 25 mm
PBT46U 100 mm 30 mm 175 mm 30 mm 250 mm 42 mm 300 mm 60 mm
PBT66U 175 mm 55 mm 250 mm 55 mm 400 mm 80 mm 475 mm 100 mm
Tracking Feature Sets Output 2 to identical settings as Output 1; Output 2 settings can then be revised as desired (see Advanced Setup on page 12).
Factory Default Settings The following settings are preset at the factory; revert sensor to factory defaults using Advanced Setup procedure (see Advanced Setup on
page 12).
• Light operate (LO)
• No OFF-delay (t 0)
• Raw signal value (1234)
• Output 1 displayed
• High Speed (HS); 200 μs
response
• Maximum power setting
• Discrete: switchpoint positioned
at middle of range
3
See the Super High-Speed note under Sensor Setup.
4
Diffuse mode performance based on 90% reflectance white test card.
5
ø0.010-inch bifurcated fiber not recommended in these speed settings. Contact Banner Engineering for more information.
D10 Expert
™
– Dual Discrete Outputs
2 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 64154 Rev. G
