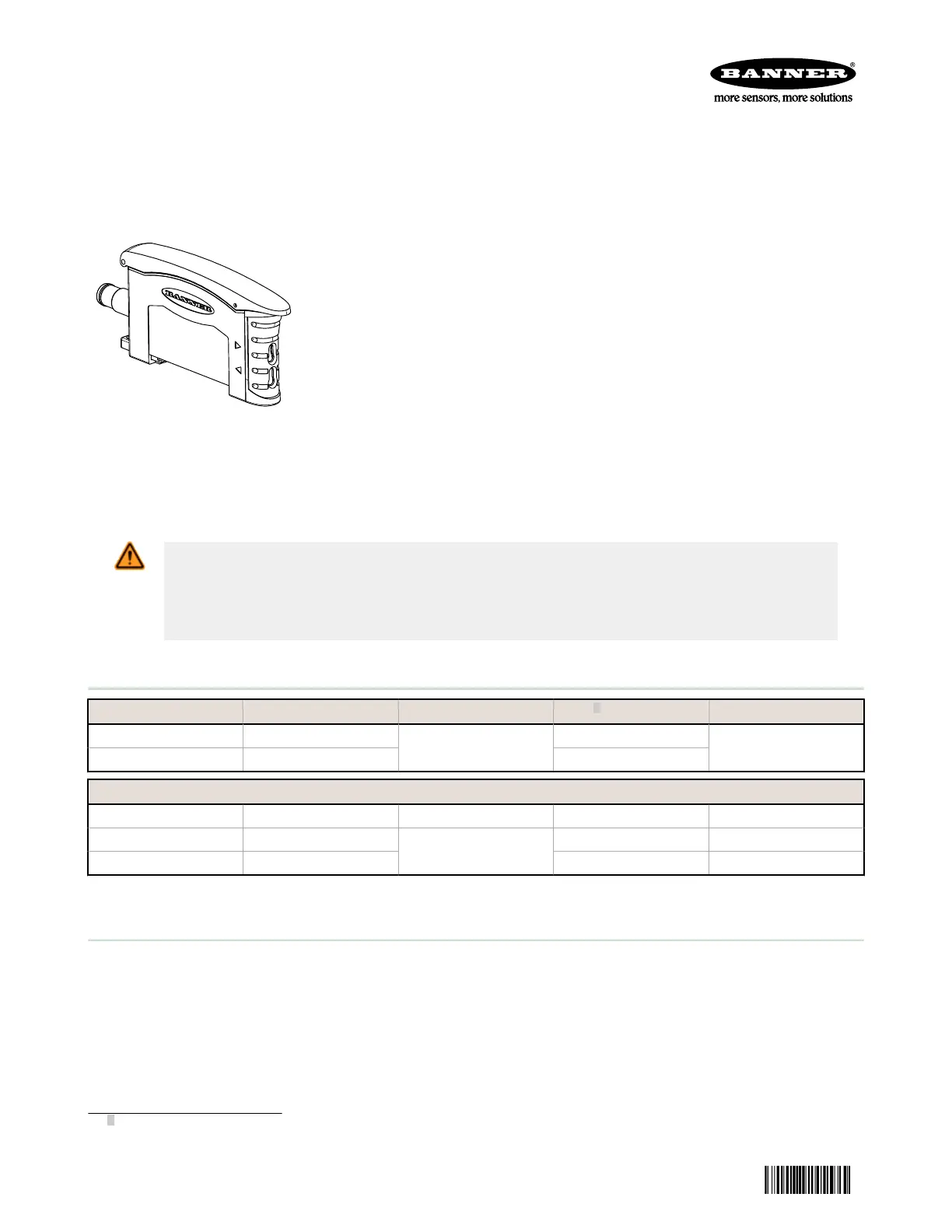

Datasheet
Advanced sensor with dual displays for use with plastic fiber optics
• Easy-to-read 8-segment light bar indicator for teach and signal strength
readout, plus indicators for continuous readout of operating status (user
configuration)
• Easy-to-set automatic Expert-style configuration options include Static and
Dynamic TEACH, and Window SET, plus manual adjustment for fine tuning
• Smart gain-control algorithm to maximize performance in low-contrast
applications
• Fast 500-microsecond sensing response with improved crosstalk avoidance
routine (for two sensors) in Normal mode
• Selectable high-speed (HS) mode option for 200-µs response
• Extreme configuration flexibility via push buttons or a remote input wire
• Easy selection of Light/Dark Operate (LO/DO), 30 ms pulse stretcher (OFF-
delay), and response speed, via push buttons or a remote input wire
• Models available with visible red (680 nm) or visible green (525 nm) sensing
beam
• Sleek, ultra-slim 10 mm housing, mounts to a standard 35 mm DIN rail
• Models with bussable power provide simplified wiring of up to 16 sensors and
feature improved temperature compensation for side-by-side mounting
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
Models
Red Beam Models
Green Beam Models Description Cable
1
Outputs
D10BFP D10BFPG
Standard sensor
2 m (6.5 ft) Cable
Bipolar NPN/PNP
D10BFPQ D10BFPGQ 6-pin Pico-style QD
Models with Bussable Power
D10B5FP - Main unit 2 m (6.5 ft) Cable Bipolar NPN/PNP
D10B2PFP - Sub-unit 2 m (6.5 ft) Cable Single PNP
D10B2NFP - 2 m (6.5 ft) Cable Single NPN
Overview
The D10 Expert
™
is an easy-to-use, DIN-rail-mountable fiber optic sensor. It provides high-performance sensing in low-
contrast applications. Configuration options include Setup mode plus Static and Dynamic TEACH, and Window Set options,
in addition to manual fine adjustment, remote programming, and security push button lockout.
1
To order the 9 m (30 ft) cable model, add the suffix "W/30" to the cabled model number. For example, D10xFP W/30. Models
with a quick disconnect require a mating cordset. See Accessories.
D10 Expert
™
Series with Bar Graph Display
and Discrete Output
Original Document
117830 Rev. G
14 November 2016
