Banner D10 Series - D10 Expert Series Dimensions; Product Dimensions

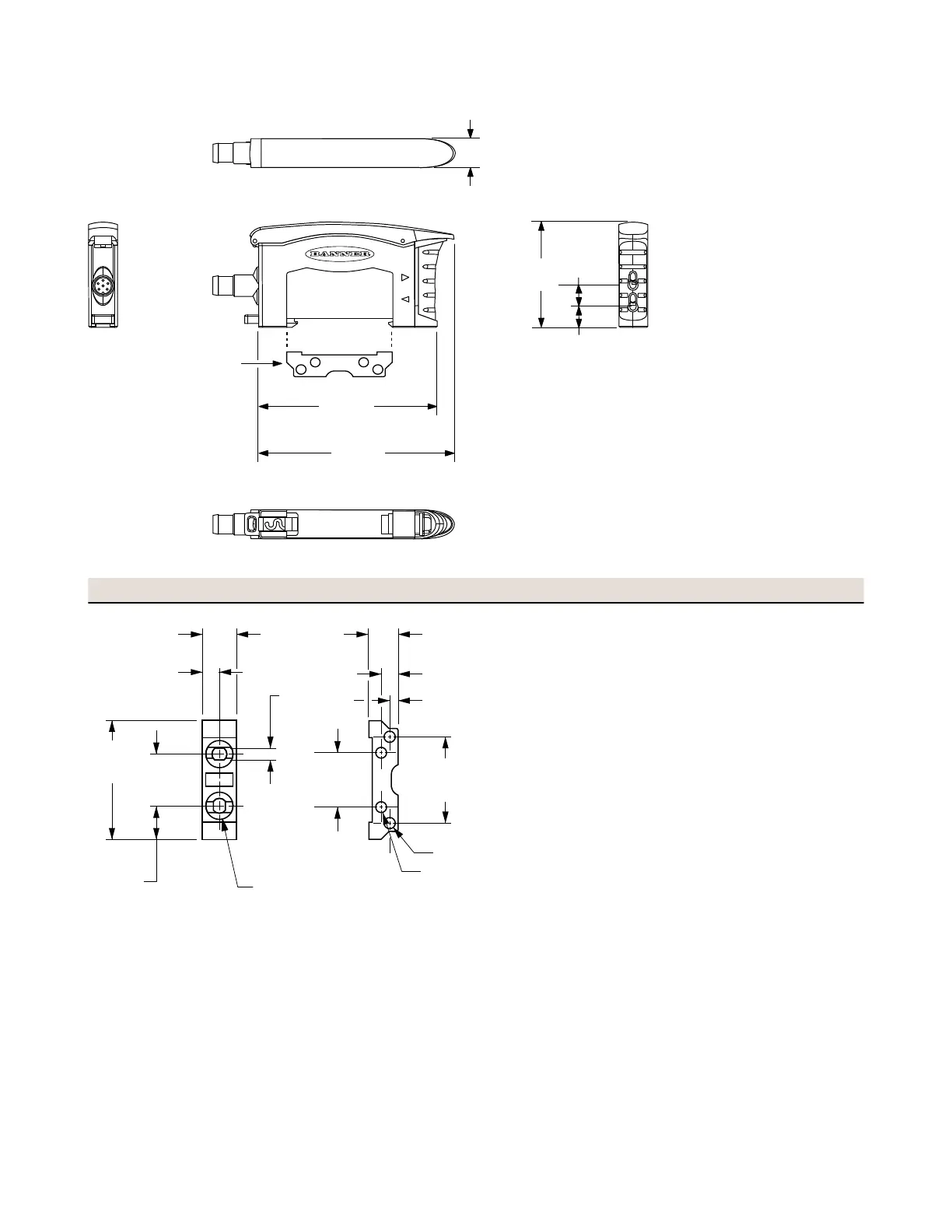

Dimensions
61.3 mm
(2.42")
68.1 mm
(2.68")
10.5 ± 0.2 mm (typ.)
(0.41")
Mounting Bracket
(included)
35.9 mm
(1.41")
7.6 mm
0.30"
9.8 mm
(0.39")
All measurements are listed in millimeters [inches], unless noted otherwise.
Included Bracket Dimensions
10.0 mm
(0.39")
35.1 mm
(1.38")
10.0 mm
(0.39")
15.2 mm
(0.60")
2x C'sink
ø8.0 mm (0.31")
3.2 mm (0.13") deep
ø4.4 mm (0.18") thru
2x 3.5 mm
(0.14")
5.0 mm
(0.20")
8.6 mm
(0.34")
25.4 mm
(1.00")
16.0 mm
(0.63")
2 x ø3.3 mm (0.13")
2x ø3.2 mm (0.13")
2.5 mm (0.10")
5.0 mm (0.20")
M3 Hardware included:
Lock Washer (2)
Flat Washer (2)
Screws (2)
Hex Nuts (2)
D10 Expert
™
Series with Bar Graph Display and Discrete Output
P/N 117830 Rev. G www.bannerengineering.com - Tel: +1-763-544-3164 11
