Accessories

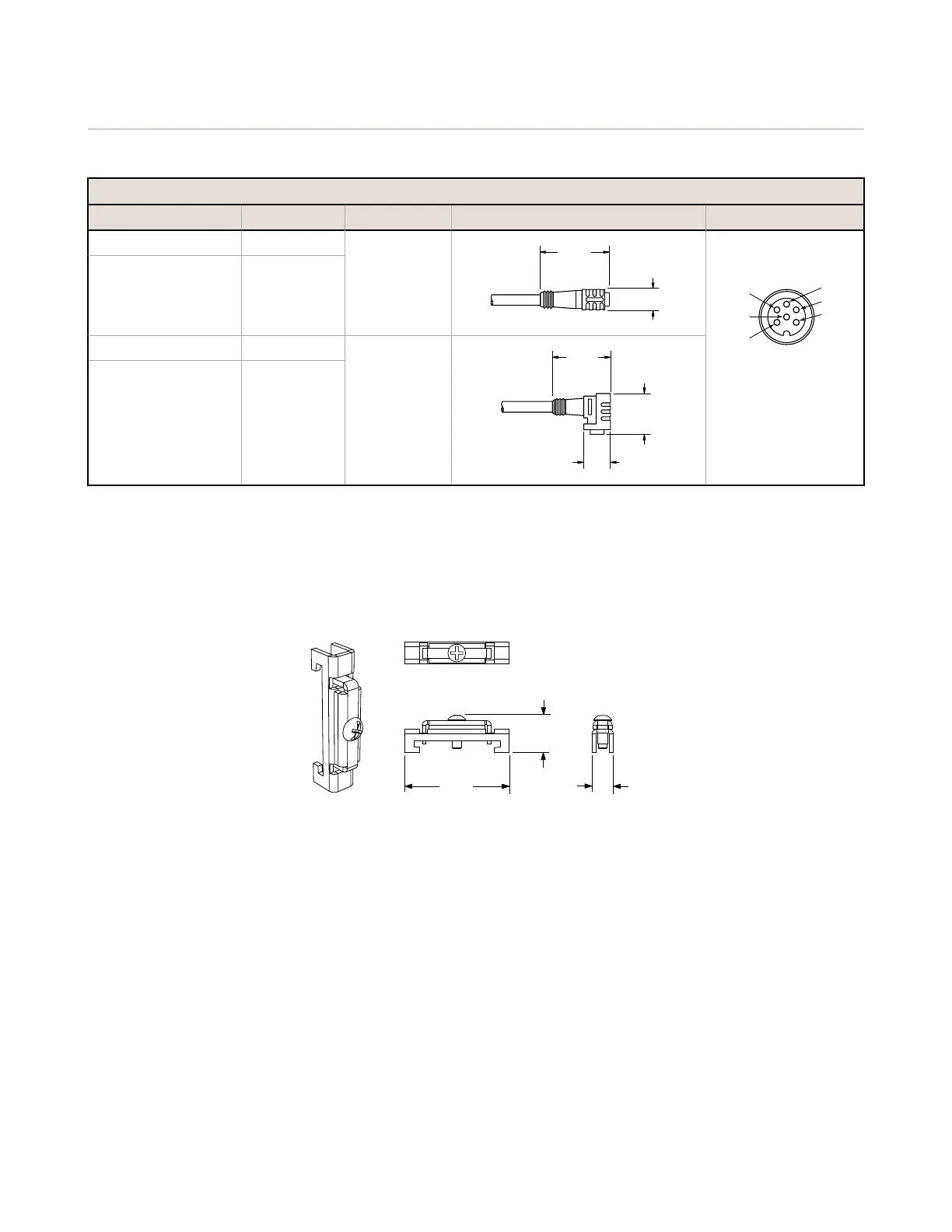

Quick Disconnect Cordsets
6-Pin Snap-on M8/Pico-Style Cordsets
Model Length Style Dimensions Pinout (Female)
PKG6Z-2 2 m (6.5 ft)
Straight
ø 9.0
32 Typ.
3
2
4
5
6
1
1 - brown
2 = White
3 = Blue
4 = Black
5 = Gray
6 = Pink
PKG6Z-9 9 m (30 ft)
PKW6Z-2 2 m (6.5 ft)
Right-angle
ø 10.9
29 Typ.
15 Typ.
PKW6Z-9 9 m (30 ft)
DIN Rail Accessories
SA-DIN-CLAMP
• Pair of metal DIN rail end stops; slide onto DIN rail at either side of the sensor stack
• Combination (#2 Phillips, #8 standard slotted) set screw
9.1 mm
(0.36")
9.1 mm
(0.63")
45.0 mm
(1.77")
SA-D10B-CAP
Package of 5 each replacement terminal caps and plugs to cover beginning and end of stack of connected sensors.
