3.2 Program Mode
Channel 1 Menu
Program (PRG) mode allows the following
sengs to be programmed in the DF-G3.
CH1 Factory Default Sengs:
Out SEL1 (dual only) LO
tch SEL1 2-pt tch
rESP SPd 2 ms
OFSt Pct1 10 Pct
Auto Thr1 oFF
dLY SEL1 oFF
SEnS SEL1 Std
inPt SEL oFF
diSP rEAd diSP 1234
GAin SEL Auto
Note: The LO/DO selecon is
not available in the Single
Output menu.
to set value
to set value
Fixed Gain Set
To scroll through menu lists: Press “+” or “-” To enter a choice list or to select and save: Click SET To exit a choice list without saving: Press and hold SET for 2 seconds
Click SET
to enter choice list
Press and hold SET to exit
choice list without saving
DISPLAY
LOOP
Return to Menu List

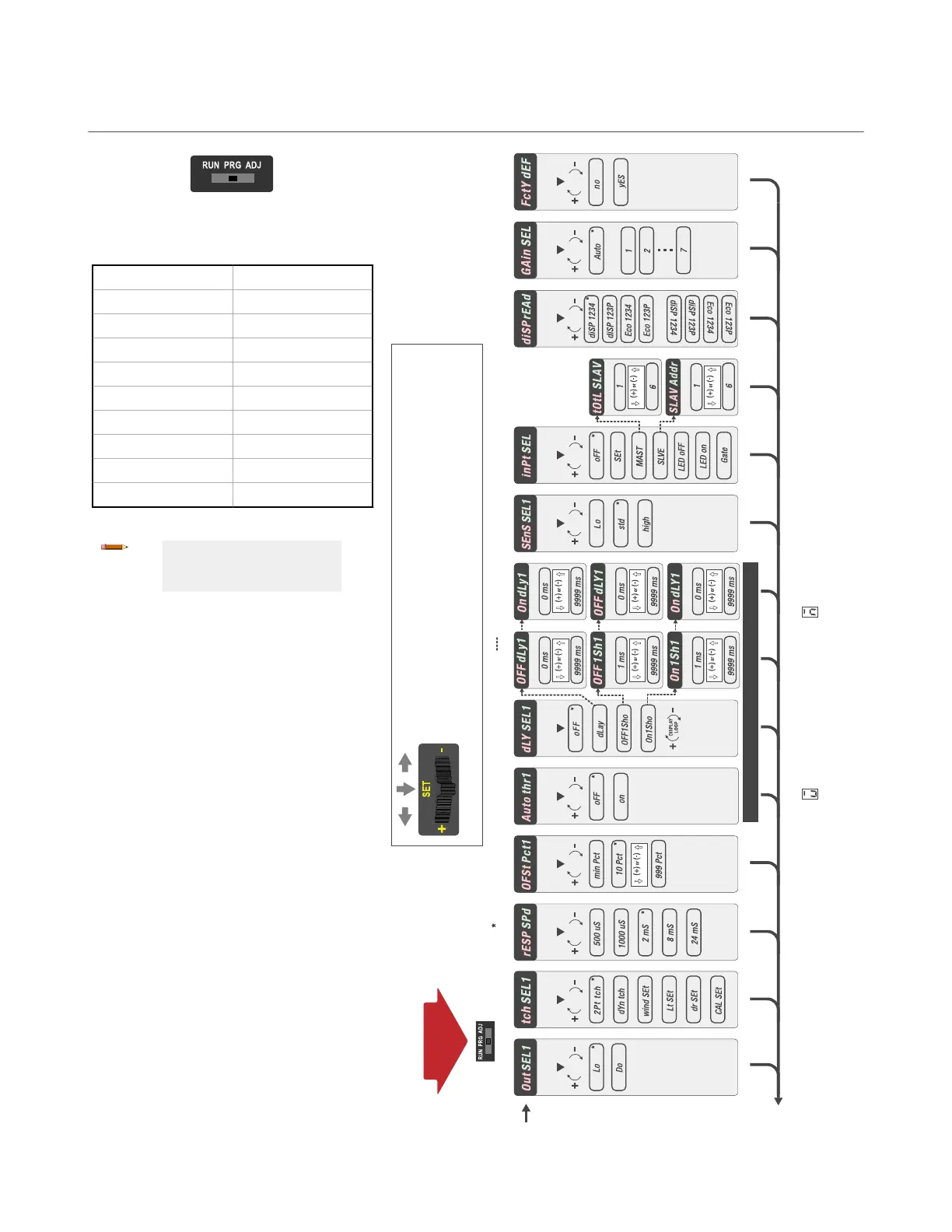

PROGRAM MODE
Switch Mode
to “PRG”
Click SET
to enter choice list
DISPLAY
LOOP
Click SET
to enter choice list
Click SET
to enter choice list
DISPLAY
LOOP
Click SET
to enter choice list
Click SET
(display flips 180˚)
Click SET
to enter choice list
DISPLAY
LOOP
Click SET
to enter choice list
DISPLAY
LOOP
Click SET
to enter choice list
DISPLAY
LOOP
rocker button
Click SET to select and save a choice in any list
Menu
List
on display represents a “w” on display represents a “m”
Click SET
to enter choice list
default setting
setting-specific
Click SET
to enter choice list
Click SET
to enter choice list
DISPLAY
LOOP
DISPLAY
LOOP
to set value
Click SET
to set value
Click SET
to set value
Click SET
to set value
Click SET
to set value
Click SET
DISPLAY
LOOP
DISPLAY
LOOP
to set value
Click SET
to set value
Click SET
Menu available in Lt, dr or wind set only
Menu not a
vailable when
in cal set
DF-G3 Long Range Expert
™
Dual Display Fiber Amplier
