Banner DF-G3 Long Range Expert User Manual

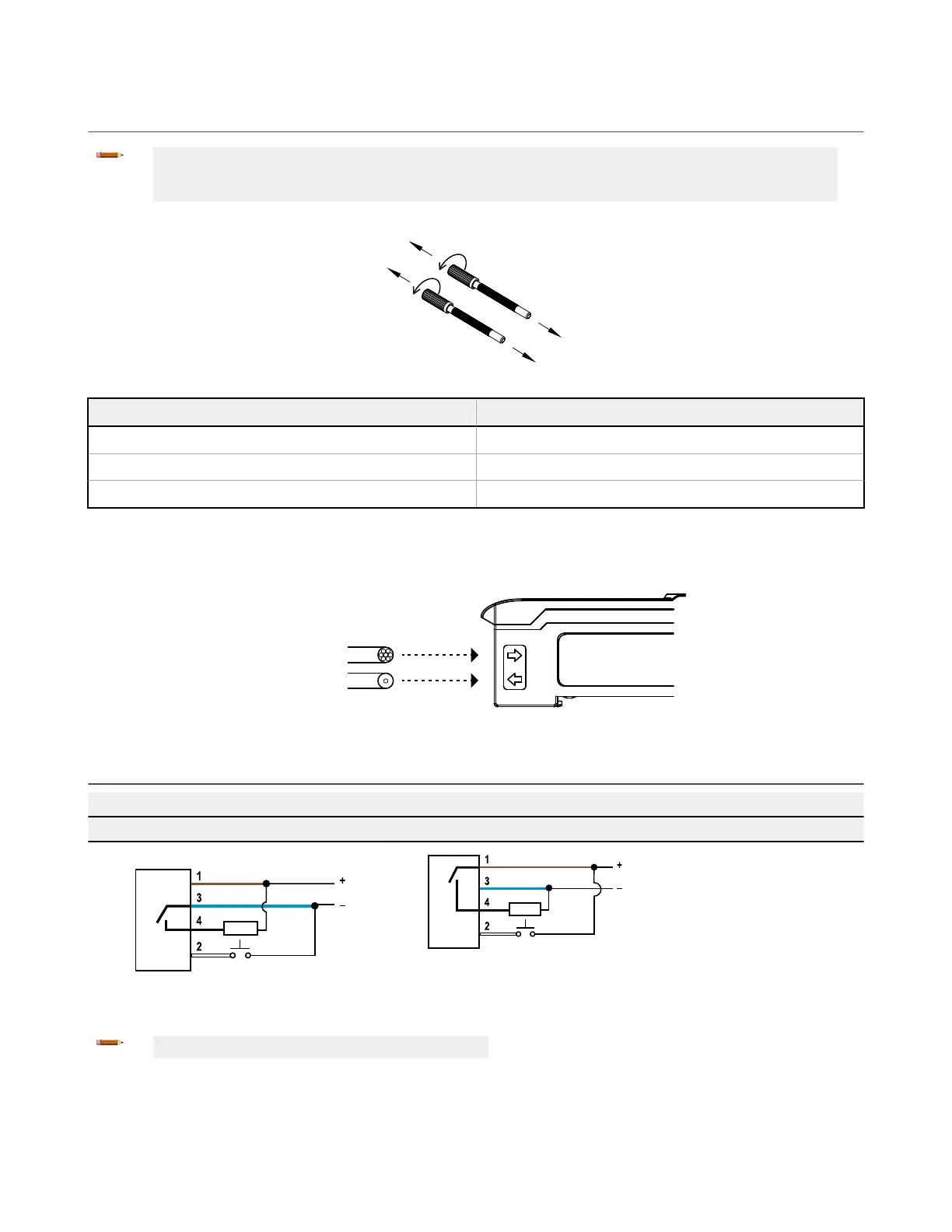

2.3 Fiber Adapters
Note: If a thin ber with less than 2.2 mm outer diameter is used, install the ber adapter provided with the ber assembly to
ensure a reliable t in the ber holder. Align the bers to the end of the adaptors. Banner includes the adapters with all ber
assemblies.
TO
FIBERS
TO
SENSOR
Fiber Outer Diameter (mm) Adapter Color
Ø 1.0 Black
Ø 1.3 Red
Ø 2.2 No adapter needed
When
connecng coaxial-type ber assemblies to the amplier, install the single-core (center) ber to the Transmier port, and the
mul-core (outer) ber to the Receiver port. This will result in the most reliable detecon.
TRANSMITTER
RECEIVER
Single-core fiber
Multi-core fiber
2.4 Wiring Diagrams
Single Output
NPN Models PNP Models Key
Input Wire
10-30V dc
Load
Load
10–30 V dc
Input Wire
1 = Brown
2 = White
3 = Blue
4 = Black
Note: Open lead wires must be connected to a terminal block.
DF-G3 Long Range Expert
™
Dual Display Fiber Amplier
www.bannerengineering.com - Tel: 763.544.3164 7
