Switches
Device Settings 1 2 3 4 5 6 7 8
MultiHop radio setting: Repeater OFF* OFF*
MultiHop radio setting: Master OFF ON
MultiHop radio setting: Slave ON OFF
MultiHop radio setting: Reserved ON ON
2.2 Performance Gateway (PE5) DIP Switch Settings
Switches
Device Settings 1 2
Transmit Power Level: 1 Watt (30 dBm) OFF (default)
Transmit Power Level: 250 mW (24 dBm), DX80 Compatibility Mode ON
2.2 Button Operation
Typically you use the DXM LCD to put the device into binding mode, but you may also use the button on the ISM radio
boards to enter binding mode. However, most DXM models will not provide access to this button.
2.2 LED Operation
The LED located on the ISM radio module indicates power and communications traffic.
•
Solid green DX80 ISM radio LED: Indicates power.
• Flashing green MultiHop ISM radio LED indicates operation.
• Red and green combined: Communications traffic and binding.

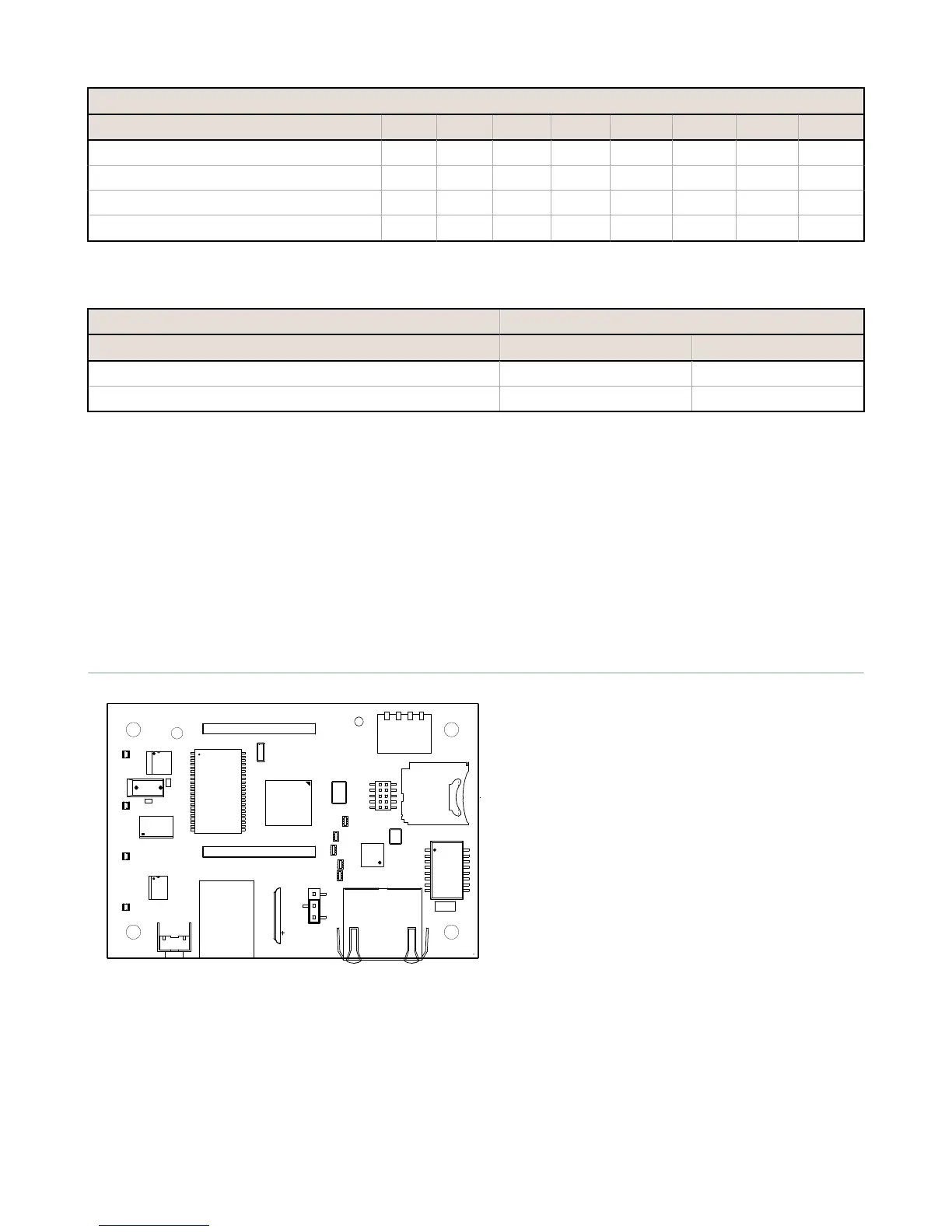

2.3 SAM4 Processor Board
1
P2
A
A
B
D
E
C
LED 1
LED 2
LED 3
LED 4
A - Cellular radio connection
B - Force cloud push/Clear password
C - Boot load jumpers
D - DIP switches
E - Micro SD card
Cellular Radio Connection. Install the cellular modem onto the SAM4 board with the cellular modem's U.FL connector on
the left. The antenna cable will go between the cellular U.FL connector and the left I/O board U.FL connector. Only install/
remove a cellular modem when the power to the device is disconnected.
Force Cloud Push button. Press and hold this button for two seconds to send an immediate push message from the
device (if properly configured).
DXM100 Controller Instruction Manual
8 www.bannerengineering.com - Tel: 763.544.3164
