R5906790 /04 Athena150
1

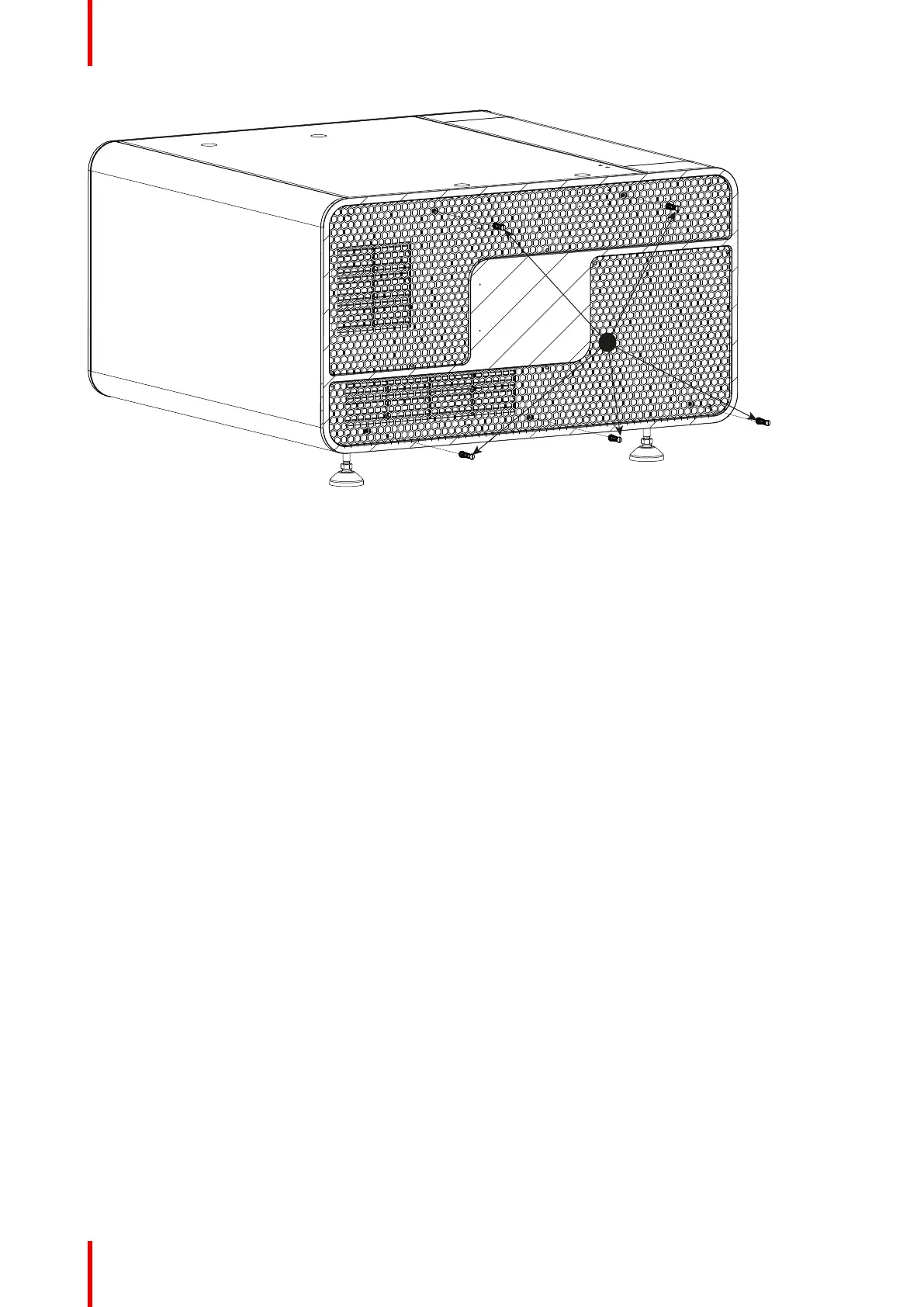

Image 16-17
16.14 Installation of the front cover
Required tools
7 mm flat screwdriver
How to install the front cover?
1. Position the front cover on the projector.
2. Install the six captive screws (reference 1, Image 16-18).
Removal and installation of the projector covers
