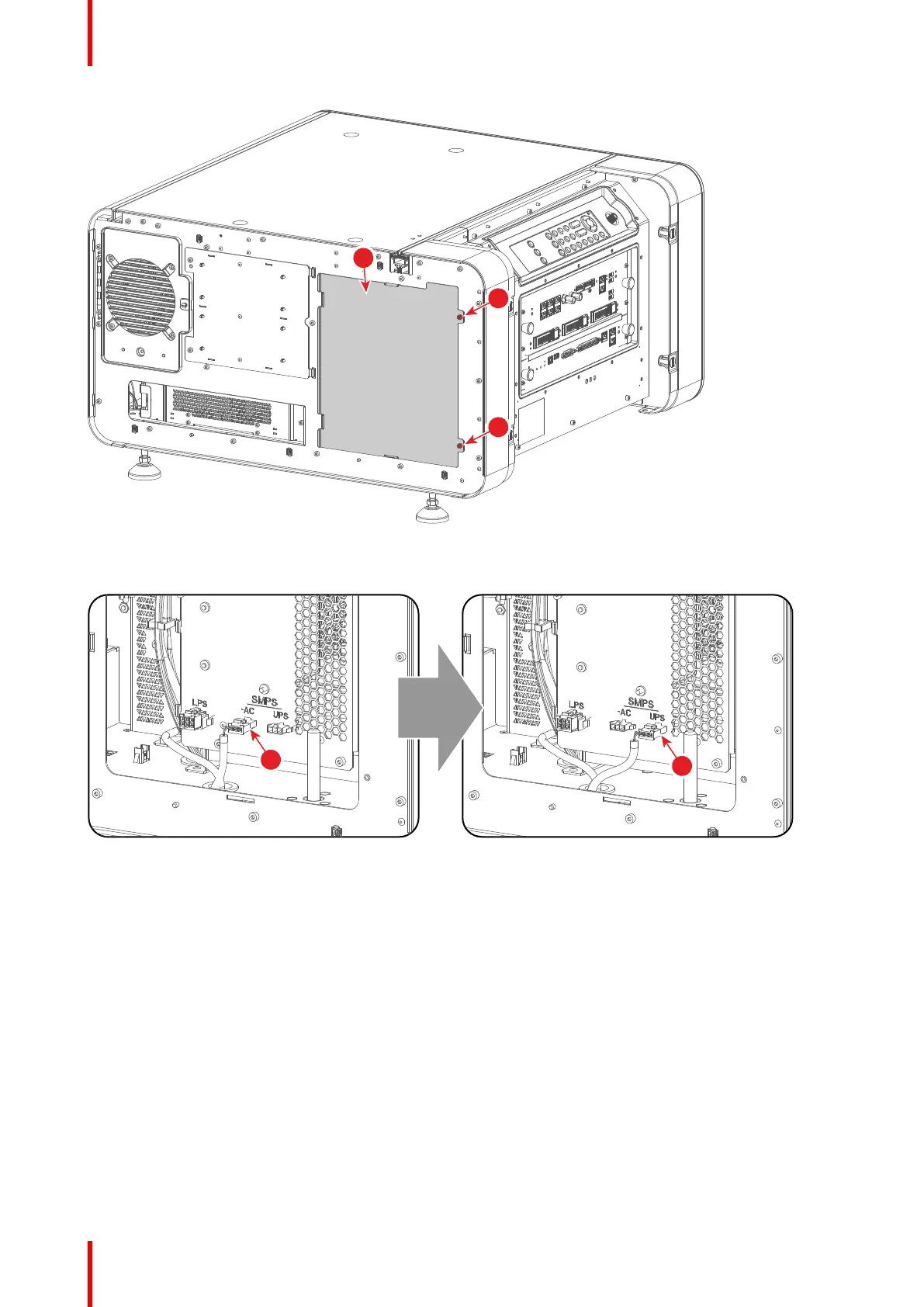

Image 5-6
4. Plug out the connector which is plugged into the AC socket (3). Plug the connector in the UPS socket (4).
Image 5-7
5. Install the SMPS cover and install the 2 screws. Use a 3mm Allen wrench.
6. Install the rear cover. See “Installation of the rear cover”, page 149.
7. Install the UPS according to the instructions of the manufacturer and the local regulations.
8. Connect the power output cord from the UPS unit to the UPS inlet socket (5) of the projector.
