Barco Athena User Manual

R5906790 /04 Athena94
A
B
3
4
Image 9-5

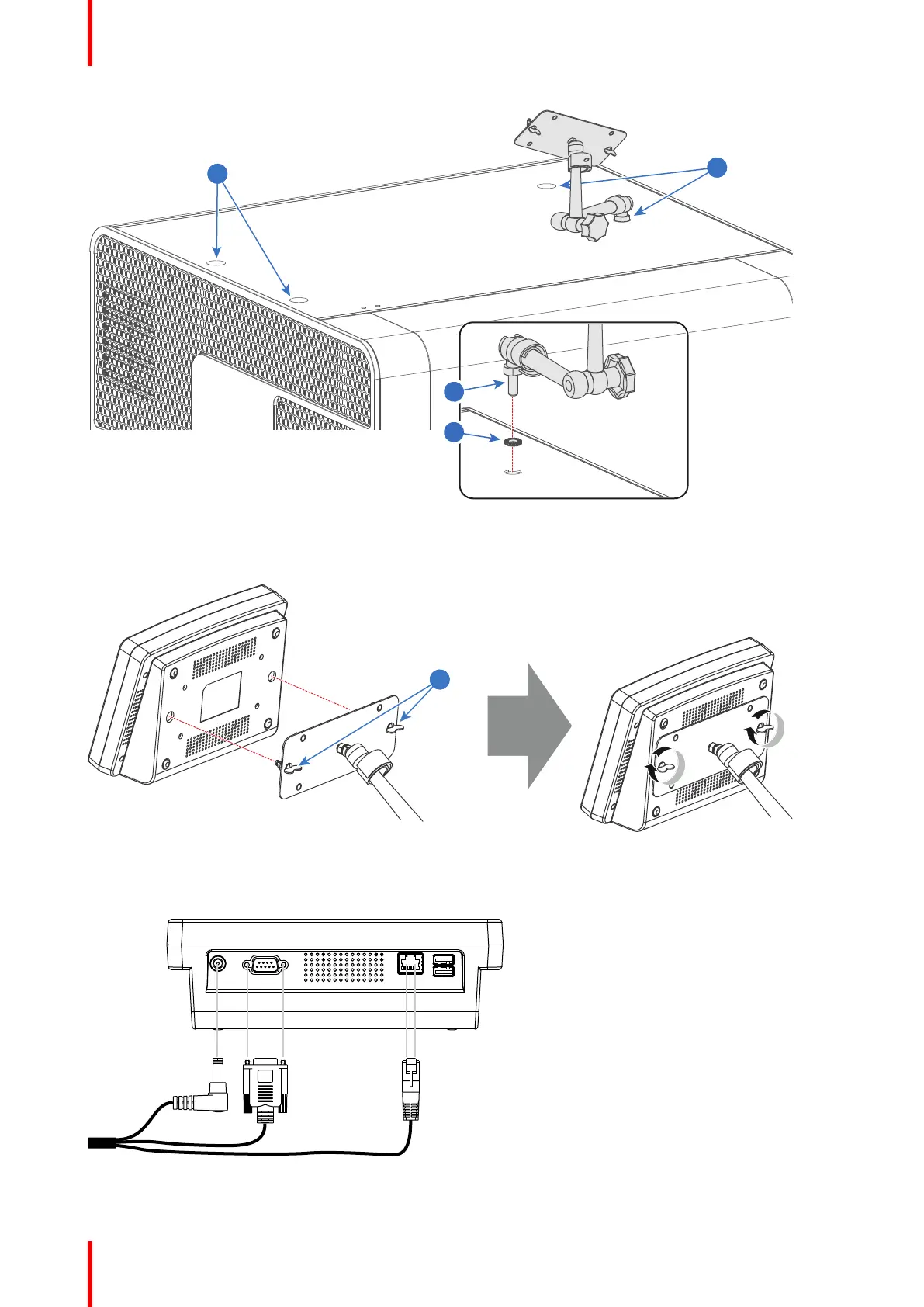

3. Place the Touch Panel interface upon the mounting plate of the swivel arm and fasten the two wing nuts (5) as
illustrated.
5
Image 9-6
4. Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug of the customized cable into their
respective sockets on the Touch Panel interface.
Image 9-7
Communicator Touch Panel
