Barco MDNC-2221 User Manual

3. Display installation
3. DISPLAY INSTALLATION
Prior to installing your NIO 2MP LED Display and connecting all necessary cables, make
sure to have a suitable display controller physically installed in your computer. If you
are using a Barco display controller, please consult the user guide delivered with it to
do this.

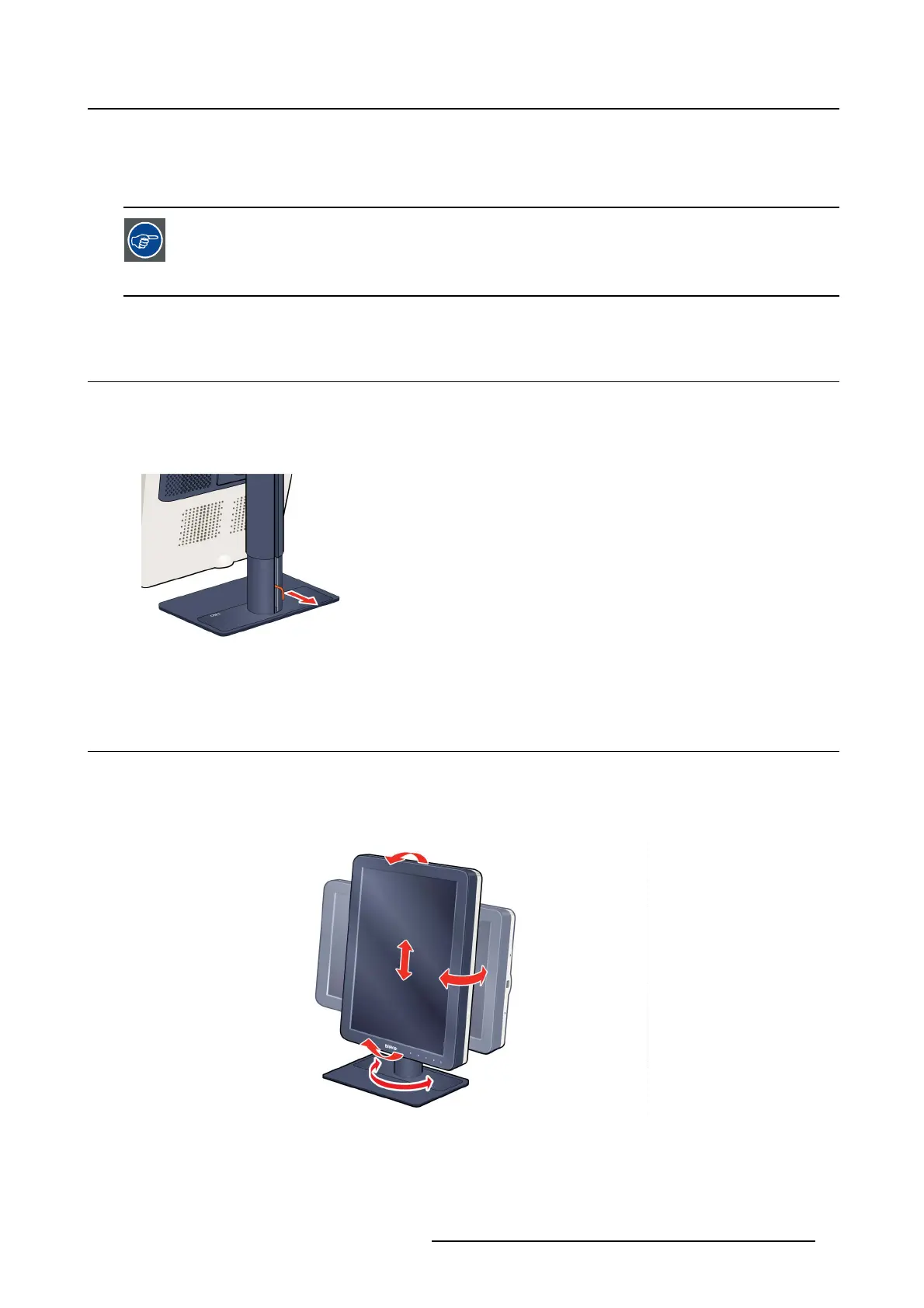

3.1 Unlockin g the heigh t mechani s m
To remove the clip:
1. Position the display with its rear side facing you.
2. Pull the red clip out of the fixation hole in the foot.
3. Keep the clip in the dedicated hole in case the display needs to be shipped later.
3.2 Adjusting th e disp lay po sition
To adjust the display position
1. Stand at the front side of the panel and take the panel at both sides.
2. Very important: Tilt the panel upwards before c
hanging the orientation.
3. To change from portrait to landscape, turn the panel counterclockwise.
4. To change from landscape to portrait, turn clockwise.
K5903058 NIO 2MP LED DISPLAY 04/03/2014
9

Barco MDNC-2221 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	4:3
Response time	20 ms
Display surface	Matt
Display diagonal	21.3 \
Display resolution	1600 x 1200 pixels
Display technology	LED
Viewable size diagonal	541 mm
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1400:1
Viewable size, horizontal	432 mm
Display brightness (typical)	800 cd/m²
Supported graphics resolutions	1600 x 1200 (UXGA)
On/off switch	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	3
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Product color	Black
Market positioning	Medical
LED indicators	Power
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	36 W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	572 mm
Weight (with stand)	12600 g
Depth (without stand)	84 mm
Width (without stand)	491 mm
Height (without stand)	378 mm
Weight (without stand)	- g
