3. Display installation

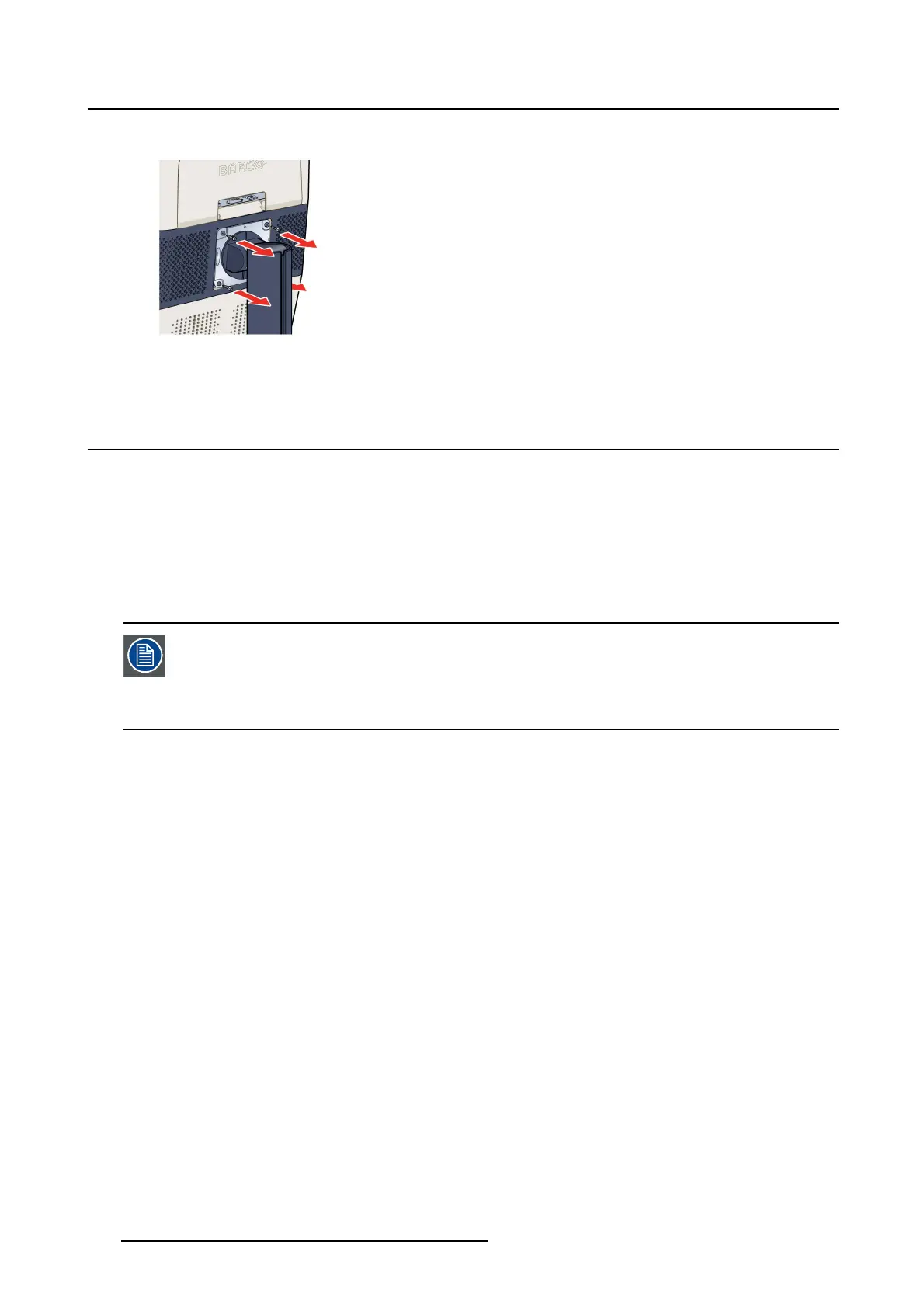

5. Remove the four screws fixing the foot while supporting the foot.
6. Attach the arm stand firmly to the panel using 4 screws M4 x 8 mm.
3.7 F irst time starting up
Overview
You are now ready to start up your NIO 2MP LED Display for the first time.
1. Switch on your NIO 2MP LED Display as described in "Standby switching", page 16.
2. Turn on the computer connected to your display.
If you have properly installed your display and display controller, the Windows start-up messages will
appear once the boot procedure is finished.
Your NIO 2MP LED Display wil l be running in a basic video mode at a default refresh rate
when first time starting up. If you are using a Barco display controller, please consult
the user guide delivered with it to install the drivers, software and documentation. When
this is done, your display will automatically detect the connected video input signal(s)
and apply the correct video mode and refresh rate.
14 K5903058 NIO 2MP LED DISPLAY 04/03/2014

Barco MDNC-2221 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	4:3
Response time	20 ms
Display surface	Matt
Display diagonal	21.3 \
Display resolution	1600 x 1200 pixels
Display technology	LED
Viewable size diagonal	541 mm
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1400:1
Viewable size, horizontal	432 mm
Display brightness (typical)	800 cd/m²
Supported graphics resolutions	1600 x 1200 (UXGA)
On/off switch	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	3
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Product color	Black
Market positioning	Medical
LED indicators	Power
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	36 W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	572 mm
Weight (with stand)	12600 g
Depth (without stand)	84 mm
Width (without stand)	491 mm
Height (without stand)	378 mm
Weight (without stand)	- g
