Barco MDNC-2221 User Manual

2. Parts, controls and connectors
2. PARTS, CONTROLS AND
CONNECTORS
2.1 Display front view
Overview
1 2 4 5
6
3

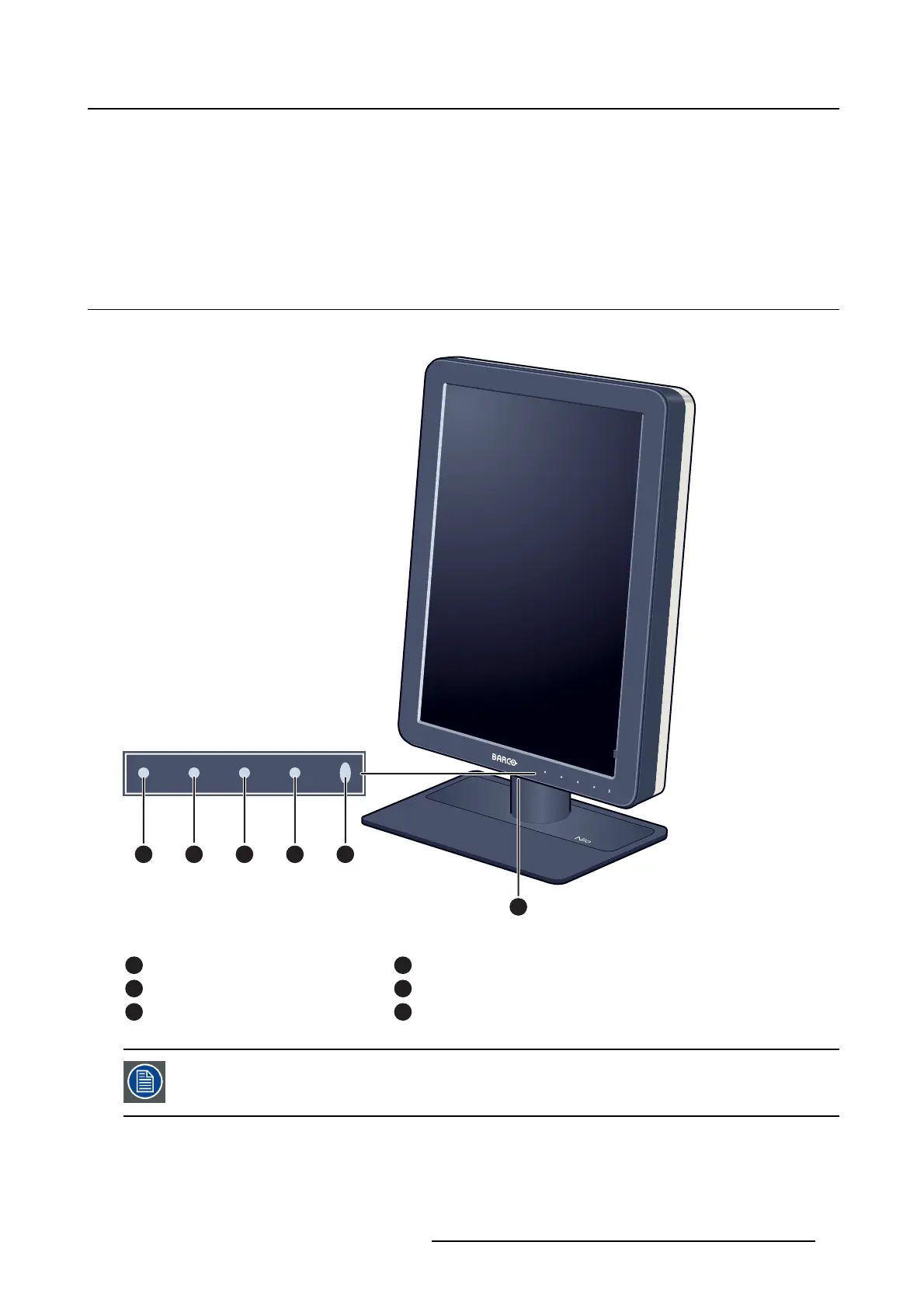

Image 2-1
Front view
1
Left key
4
Standby key
2
Right key
5
Power LEDs
3
Menu key
6
Bottom downstream USB
The key icons are displayed above the keys, adapted to the function that it is used for
(menu dependent). See "Navigating through the OSD menus", page 17.
K5903058 NIO 2MP LED DISPLAY 04/03/2014 5

Barco MDNC-2221 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	4:3
Response time	20 ms
Display surface	Matt
Display diagonal	21.3 \
Display resolution	1600 x 1200 pixels
Display technology	LED
Viewable size diagonal	541 mm
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1400:1
Viewable size, horizontal	432 mm
Display brightness (typical)	800 cd/m²
Supported graphics resolutions	1600 x 1200 (UXGA)
On/off switch	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	3
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Product color	Black
Market positioning	Medical
LED indicators	Power
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	36 W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	572 mm
Weight (with stand)	12600 g
Depth (without stand)	84 mm
Width (without stand)	491 mm
Height (without stand)	378 mm
Weight (without stand)	- g
