Barco MDNC-2221 User Manual

3. Display installation
3.5 Routing the cables & Reattach the connec tor compartment
cover

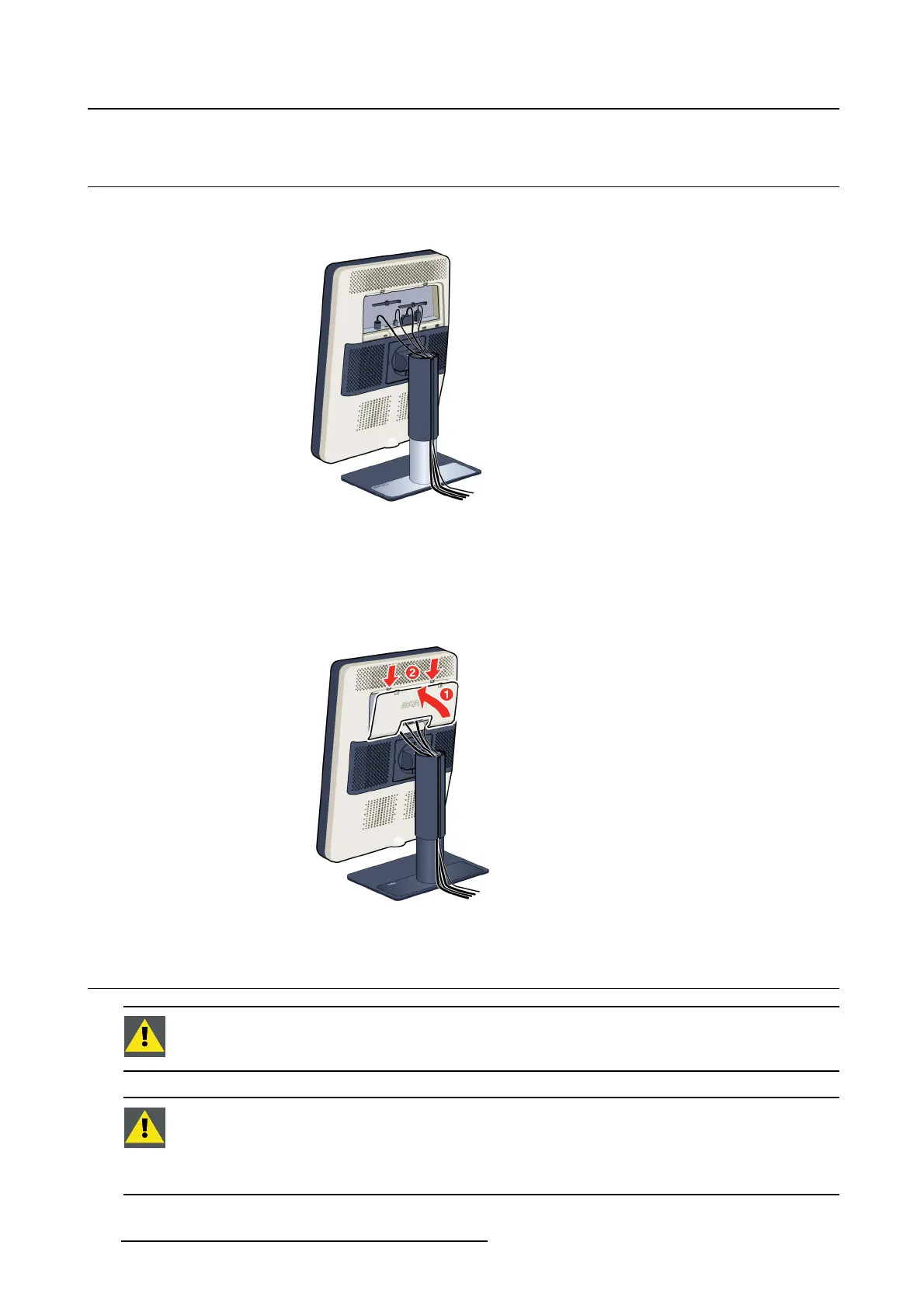

To route the cables
1. Route all connected cables through the cable routing channel in the stand of your display.
Tip: The cable straps at the inside of the connector compartment al
low you to fix the cables for better
shielding of the cables.
To Reattach the connector compartment cover
1. Reattach the connector compartment cover by sliding the cover’s bottom in position and then push the
cover’s top. You’ll hear a “click” sound of the cover’s clips when the connector compartment cover is
in position.
3.6 VESA-mount installatio
n
CAUTION: Use suitable mounting apparatus to avoid risk of injury.
WARNING: N ever move a display attache d to an arm by pulling or pushing the display
itself. Instead, make sure that the arm is equipped with a VESA approved handle and
use this to move the display.
Please refer to the instruction manual of the arm for more information and instructions.
12 K5903058 NIO 2MP LED DISPLAY 04/03/2014

Barco MDNC-2221 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	4:3
Response time	20 ms
Display surface	Matt
Display diagonal	21.3 \
Display resolution	1600 x 1200 pixels
Display technology	LED
Viewable size diagonal	541 mm
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1400:1
Viewable size, horizontal	432 mm
Display brightness (typical)	800 cd/m²
Supported graphics resolutions	1600 x 1200 (UXGA)
On/off switch	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	3
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Product color	Black
Market positioning	Medical
LED indicators	Power
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	36 W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	572 mm
Weight (with stand)	12600 g
Depth (without stand)	84 mm
Width (without stand)	491 mm
Height (without stand)	378 mm
Weight (without stand)	- g
