Barco MDNC-2221 User Manual

3. Display installation
WARNING: Use an arm that is approved by VESA (according to the VESA 100 mm stan-
dard).
Use an arm that can support the weight of the display. Refer to the technical specifica-
tions of this display for the applicable weight.
Overview

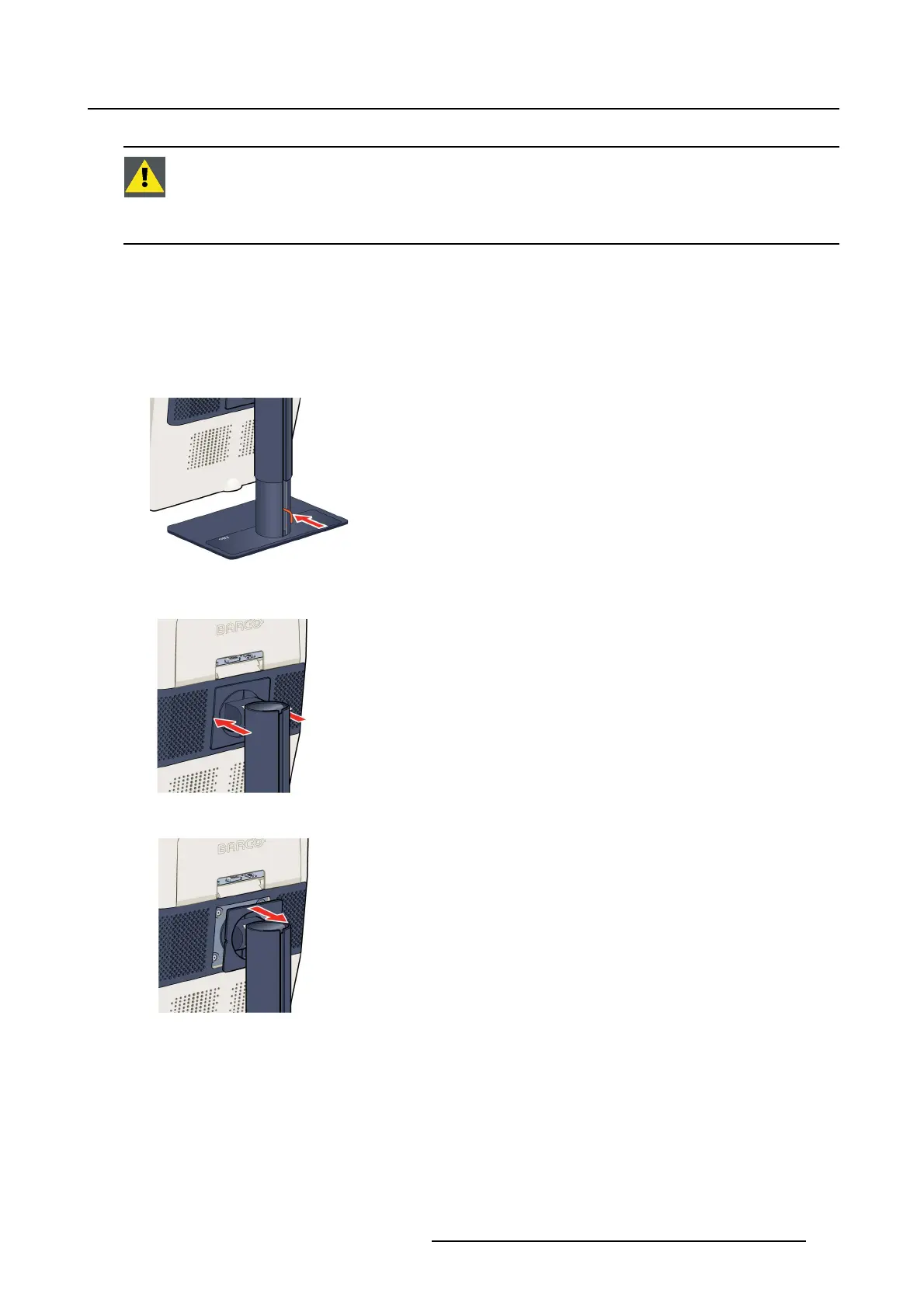

The panel, standard attached to the tilt & swivel foot, is compatible with the VESA 100 mm standard. So
itcanbeusedwithanarmstandaccordingtotheVESA100mmstandard.
Therefore, the tilt & swivel foot must be removed from the panel.
1. Fasten the height mechanism of the foot by putting the red clip in the hole "Unlocking the height mech-
anism", page 9 .
2. Put the display face down on a clean and soft surface. Be careful not to damage the panel screen.
3. Remove the plastic cover with a flathead screw driver.
4. Slide the plastic cover over the neck of the foot.
K5903058 NIO 2MP LED DISPLAY 04/03/2014 13

Barco MDNC-2221 Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	4:3
Response time	20 ms
Display surface	Matt
Display diagonal	21.3 \
Display resolution	1600 x 1200 pixels
Display technology	LED
Viewable size diagonal	541 mm
Viewable size, vertical	324 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1400:1
Viewable size, horizontal	432 mm
Display brightness (typical)	800 cd/m²
Supported graphics resolutions	1600 x 1200 (UXGA)
On/off switch	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	3
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC pending, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Product color	Black
Market positioning	Medical
LED indicators	Power
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	36 W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	572 mm
Weight (with stand)	12600 g
Depth (without stand)	84 mm
Width (without stand)	491 mm
Height (without stand)	378 mm
Weight (without stand)	- g
